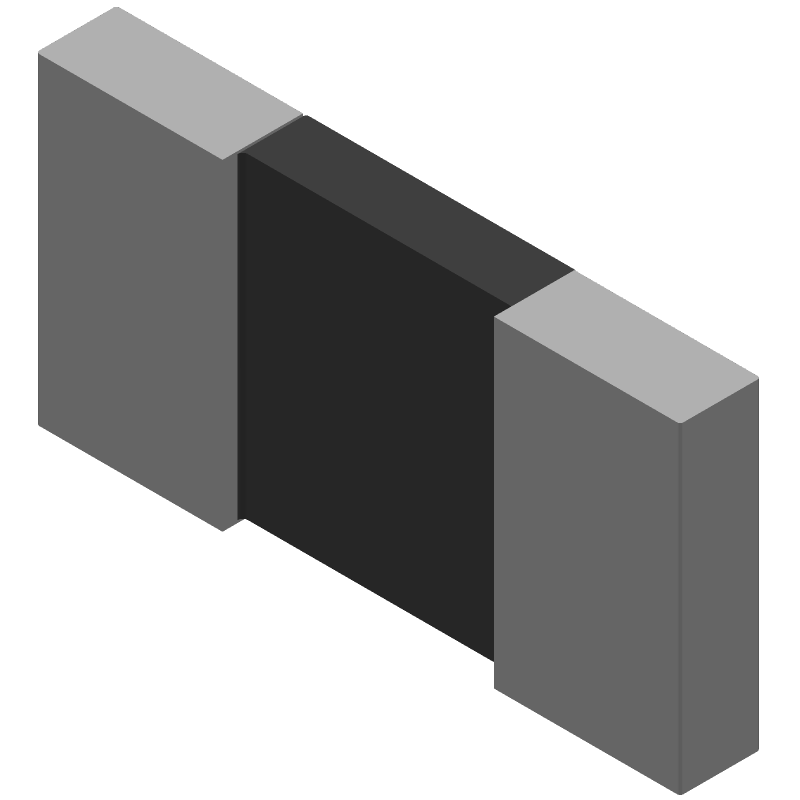

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CRCW20102K70JNEF by Vishay Intertechnologies
Results Overview of CRCW20102K70JNEF by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Energy and Power Systems
Medical Imaging
Entertainment and Gaming
Robotics and Drones
CRCW20102K70JNEF Information
CRCW20102K70JNEF by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CRCW20102K70JNEF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31AC6392
|
Newark | Res, 2K7, 5%, 0.75W, 2010, Thick Film, Resistor Case Style:2010 [5025 Metric], Resistance:2.7Kohm, Product Range:Crcw E3 Series, Voltage Rating:400V, Resistor Element Material:Thick Film, Power Rating:750Mw, Resistance Tolerance:± Rohs Compliant: Yes |Vishay CRCW20102K70JNEF RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.0710 / $0.1050 | Buy Now |
|
DISTI #
43C5567
|
Newark | Res, Thick Film, 2K7, 5%, 0.75W, 2010, Reel, Resistance:2.7Kohm, Resistance Tolerance:± 5%, Power Rating:750Mw, Resistor Case/Package:2010 [5025 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose Rohs Compliant: Yes |Vishay CRCW20102K70JNEF RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0830 / $0.1470 | Buy Now |
|
DISTI #
CRCW20102K70JNEF
|
Avnet Americas | SMD Chip Resistor, 2.7 kohm, ? 5%, 750 mW, 2010 [5025 Metric], Thick Film, General Purpose - Tape and Reel (Alt: CRCW20102K70JNEF) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel | 1380000 |
|
$0.0237 | Buy Now |
|
DISTI #
CRCW20102K70JNEF
|
Avnet Americas | SMD Chip Resistor, 2.7 kohm, ? 5%, 750 mW, 2010 [5025 Metric], Thick Film, General Purpose - Tape and Reel (Alt: CRCW20102K70JNEF) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0288 / $0.0314 | Buy Now |
|
DISTI #
71-CRCW2010J-2.7K-E3
|
Mouser Electronics | Thick Film Resistors - SMD 3/4watt 2.7Kohms 5% RoHS: Compliant | 5187 |
|
$0.0660 / $0.2300 | Buy Now |
|
DISTI #
V72:2272_07473887
|
Arrow Electronics | Res Thick Film 2010 2.7K Ohm 5% 0.75W(3/4W) ±200ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2319 Container: Cut Strips | Americas - 3700 |
|
$0.0158 / $0.1173 | Buy Now |
|
DISTI #
CRCW20102K70JNEF
|
TTI | Thick Film Resistors - SMD 3/4watt 2.7Kohms 5% pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Reel |
Americas - 8000 In Stock |
|
$0.0243 | Buy Now |
|
DISTI #
CRCW20102K70JNEF
|
Avnet Abacus | SMD Chip Resistor 27 kohm 5 750 mW 2010 5025 Metric Thick Film General Purpose (Alt: CRCW20102K70JNEF) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CRCW20102K70JNEF
CRCW20102K70JNEF CAD Models
CRCW20102K70JNEF Part Data Attributes
|
|
CRCW20102K70JNEF
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
CRCW20102K70JNEF
Vishay Intertechnologies
Fixed Resistor, Metal Glaze/thick Film, 0.75W, 2700ohm, 400V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LASER TRIMMABLE, RATED AC VOLTAGE (V): 400 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.6 mm | |
| Package Length | 5 mm | |
| Package Style | SMT | |
| Package Width | 2.5 mm | |
| Packing Method | TR, Blister, 7 Inch | |
| Rated Power Dissipation (P) | 0.75 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 2700 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2010 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 400 V |
CRCW20102K70JNEF Frequently Asked Questions (FAQ)
-
The thermal resistance of the CRCW20102K70JNEF is 240°C/W, which is typical for a 2010-sized chip resistor.
-
Yes, the CRCW20102K70JNEF is suitable for high-frequency applications due to its low inductance and capacitance values.
-
Yes, the CRCW20102K70JNEF is rated for operation up to 155°C, making it suitable for high-temperature applications.
-
Yes, the CRCW20102K70JNEF is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The power rating of the CRCW20102K70JNEF is 0.25 W, which is typical for a 2010-sized chip resistor.
