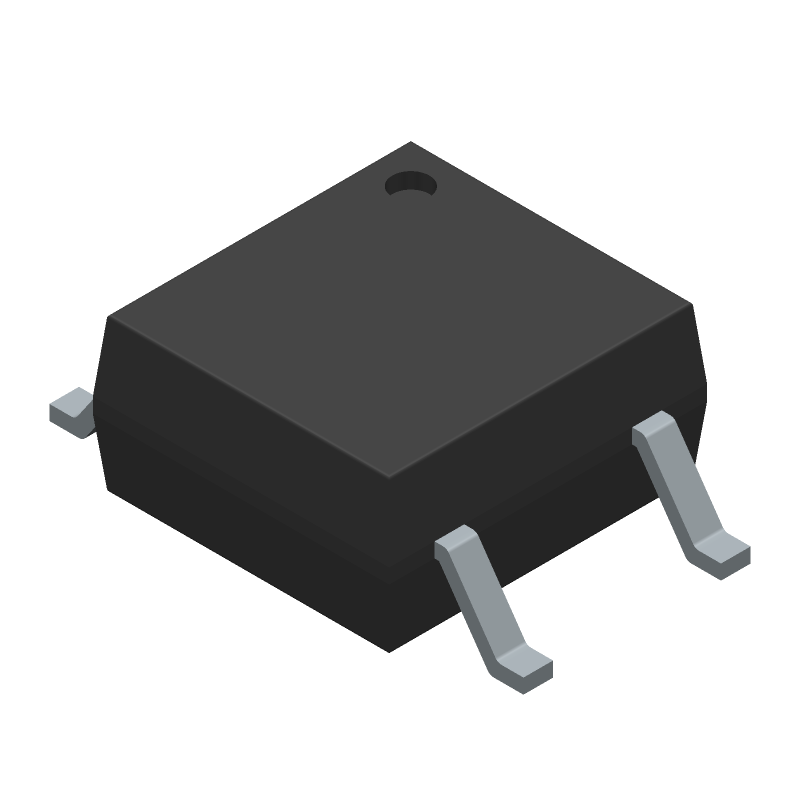

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CPC1006NTR by Littelfuse Inc
Results Overview of CPC1006NTR by Littelfuse Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Healthcare
Medical Imaging
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
CPC1006NTR Information
CPC1006NTR by Littelfuse Inc is a Solid State Relay.
Solid State Relays are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for CPC1006NTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38AK6357
|
Newark | Mosfet Relay, Spst-No, 0.075A, 60V/Sop-4 Rohs Compliant: Yes |Littelfuse CPC1006NTR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1933 |
|
$0.6730 / $1.1200 | Buy Now |
|
DISTI #
5656-CPC1006NTRCT-ND
|
DigiKey | SSR RELAY SPST-NO 75MA 0-60V Min Qty: 1 Lead time: 11 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
18218 In Stock |
|
$0.7490 / $1.1900 | Buy Now |
|
DISTI #
E02:0323_06695446
|
Arrow Electronics | Relay SSR 50mA 1.5V DC-IN 0.075A 60V AC/DC-OUT 4-Pin SOP T/R RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 11 Weeks Date Code: 2437 | Europe - 18000 |
|
$0.6114 / $0.6609 | Buy Now |
|
DISTI #
E32:1076_06695446
|
Arrow Electronics | Relay SSR 50mA 1.5V DC-IN 0.075A 60V AC/DC-OUT 4-Pin SOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 2408 | Europe - 12 |
|
$0.6114 / $1.1290 | Buy Now |
|
DISTI #
V72:2272_14441524
|
Arrow Electronics | Relay SSR 50mA 1.5V DC-IN 0.075A 60V AC/DC-OUT 4-Pin SOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 2303 Container: Cut Strips | Americas - 7 |
|
$0.6328 | Buy Now |
|
DISTI #
75575803
|
RS | 1-FORM-A OPTOMOS 60V 10 OHMS 4L SOP REEL Min Qty: 2000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$0.8400 / $0.9100 | RFQ |
|
|
Future Electronics | CPC1006N Series 75 mA 60 V SPST Surface Mount OptoMOS® Relay - SOIC-4 RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 11 Weeks Container: Reel | 4000Reel |
|
$0.6300 | Buy Now |
|
DISTI #
88156642
|
Verical | Relay SSR 50mA 1.5V DC-IN 0.075A 60V AC/DC-OUT 4-Pin SOP T/R RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Date Code: 2437 | Americas - 18000 |
|
$0.6148 / $0.6646 | Buy Now |
|
DISTI #
83608865
|
Verical | Relay SSR 50mA 1.5V DC-IN 0.075A 60V AC/DC-OUT 4-Pin SOP T/R RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Date Code: 2404 | Americas - 2000 |
|
$0.8683 | Buy Now |
|
DISTI #
66972145
|
Verical | Relay SSR 50mA 1.5V DC-IN 0.075A 60V AC/DC-OUT 4-Pin SOP T/R RoHS: Compliant Min Qty: 10 Package Multiple: 1 | Americas - 10 |
|
$0.6148 / $0.9861 | Buy Now |
Part Details for CPC1006NTR
CPC1006NTR CAD Models
CPC1006NTR Part Data Attributes
|
|
CPC1006NTR
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
CPC1006NTR
Littelfuse Inc
Transistor Output SSR,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | SOP-4 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | HIGH RELIABILITY, UL RECOGNIZED | |
| Configuration | SINGLE | |
| Control Current | 0.0001 A | |
| Control Voltage | 0.9 V | |
| Forward Current-Max | 0.0005 A | |
| Input Type | DC | |
| Isolation Voltage-Max | 1500 V | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 1 | |
| On-state Resistance-Max | 10 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | TRANSISTOR OUTPUT SSR | |
| Output Circuit Type | MOSFET | |
| Overall Height | 2.03 mm | |
| Overall Length | 4.089 mm | |
| Packing Method | TR, EMBOSSED, 13 INCH | |
| Surface Mount | YES | |
| Terminal Finish | TIN |
CPC1006NTR Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for CPC1006NTR is a rectangular pad with dimensions of 1.5mm x 0.8mm, with a thermal pad of 2.5mm x 2.5mm.
-
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes thermal stress on the component.
-
The maximum allowable voltage for CPC1006NTR is 100V, as specified in the datasheet. Exceeding this voltage may damage the component.
-
Yes, CPC1006NTR is rated for operation up to 150°C. However, the component's performance and reliability may degrade at high temperatures, so careful consideration should be given to thermal management and cooling in high-temperature applications.
-
Handle CPC1006NTR with care to avoid mechanical stress and electrostatic discharge (ESD). Store the components in their original packaging or in a dry, ESD-protected environment. Avoid exposing the components to moisture, extreme temperatures, or physical shock.
