Part Details for COM23025-50.000-EXT-T-TR by Raltron Electronics Corporation
Results Overview of COM23025-50.000-EXT-T-TR by Raltron Electronics Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Aerospace and Defense
COM23025-50.000-EXT-T-TR Information
COM23025-50.000-EXT-T-TR by Raltron Electronics Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for COM23025-50.000-EXT-T-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70AK2459
|
Newark | Oscillator, 50Mhz, Cmos, 5Mm X 3.2Mm Rohs Compliant: Yes |Raltron COM23025-50.000-EXT-T-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2000 |
|
$0.4250 | Buy Now |
|
DISTI #
70AK2460
|
Newark | Oscillator, 50Mhz, Cmos, 5Mm X 3.2Mm Rohs Compliant: Yes |Raltron COM23025-50.000-EXT-T-TR RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 1000 |
|
$0.7700 / $0.8270 | Buy Now |
|
DISTI #
2151-COM23025-50.000-EXT-T-TRCT-ND
|
DigiKey | XTAL OSC XO 50MHZ HCMOS SMD Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
8248 In Stock |
|
$0.5966 / $1.0500 | Buy Now |
|
|
Future Electronics | COM2 Series 50 MHz 3.3V �25ppm -40�C to 85�C XO Clock Crystal Oscillator Min Qty: 1000 Package Multiple: 1000 |
8000 null |
|
$0.5000 / $0.5250 | Buy Now |
|
DISTI #
COM23025-50.000-EXT-T-TR
|
IBS Electronics | OSCILLATOR 50MHZ CMOS 5MM X 3.2MM ROHS COMPLIANT: YES |RALTRON COM23025-50.000-EXT-T-TR Min Qty: 1000 Package Multiple: 1 | 8000 |
|
$0.6500 / $0.6825 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 3907 |
|
RFQ |
Part Details for COM23025-50.000-EXT-T-TR

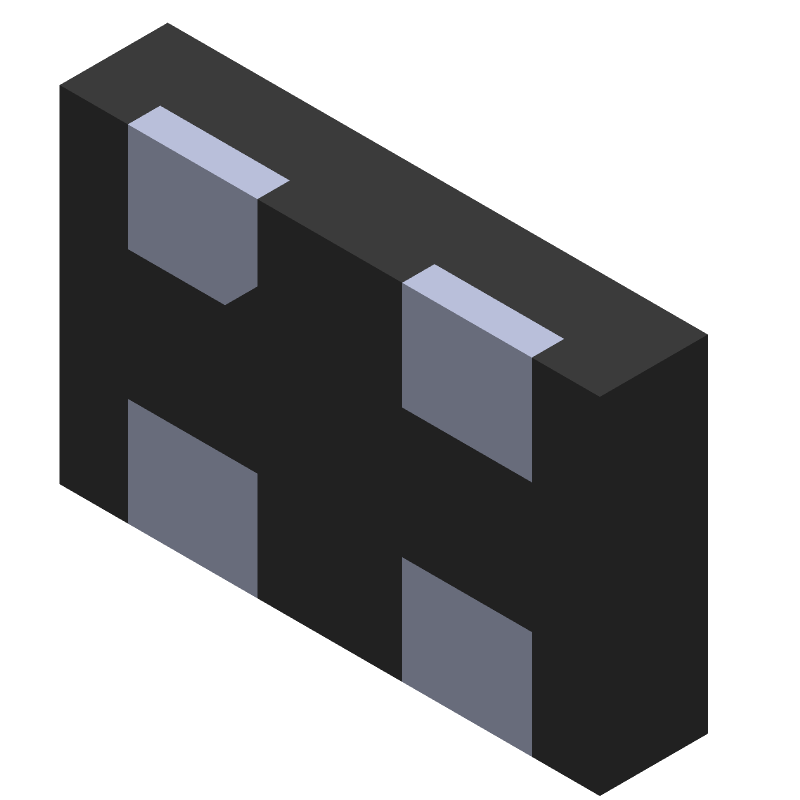

COM23025-50.000-EXT-T-TR CAD Models
COM23025-50.000-EXT-T-TR Part Data Attributes
|
|
COM23025-50.000-EXT-T-TR
Raltron Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
COM23025-50.000-EXT-T-TR
Raltron Electronics Corporation
CMOS Output Clock Oscillator, 50MHz Nom,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RALTRON ELECTRONICS CORP | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | RALTRON | |
| Additional Feature | ENABLE/DISABLE FUNCTION | |
| Fall Time-Max | 10 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 25% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Frequency-Nom | 50 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | CMOS | |
| Output Load | 15 pF | |
| Package Equivalence Code | DILCC4,.12 | |
| Physical Dimension | 5mm x 3.2mm x 1mm | |
| Rise Time-Max | 10 ns | |
| Supply Current-Max | 40 mA | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % | |
| Terminal Finish | GOLD |
Alternate Parts for COM23025-50.000-EXT-T-TR
This table gives cross-reference parts and alternative options found for COM23025-50.000-EXT-T-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of COM23025-50.000-EXT-T-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AP2SM-50.000MHZ-N-R-T | Abracon Corporation | Check for Price | CMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN | COM23025-50.000-EXT-T-TR vs AP2SM-50.000MHZ-N-R-T |
| AP2SM-50.000MHZ-L-R-OP1 | Abracon Corporation | Check for Price | CMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN | COM23025-50.000-EXT-T-TR vs AP2SM-50.000MHZ-L-R-OP1 |
| AP2SM-50.000MHZ-R-OP1 | Abracon Corporation | Check for Price | CMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN | COM23025-50.000-EXT-T-TR vs AP2SM-50.000MHZ-R-OP1 |
| AP2SM-50.000MHZ-I-R | Abracon Corporation | Check for Price | CMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN | COM23025-50.000-EXT-T-TR vs AP2SM-50.000MHZ-I-R |
| AP2SM-50.000MHZ-E-R-OP2-T | Abracon Corporation | Check for Price | CMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN | COM23025-50.000-EXT-T-TR vs AP2SM-50.000MHZ-E-R-OP2-T |
| AP2SM-50.000MHZ-D-R-B-T | Abracon Corporation | Check for Price | CMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN | COM23025-50.000-EXT-T-TR vs AP2SM-50.000MHZ-D-R-B-T |
| AP2SM-50.000MHZ-F-R-B | Abracon Corporation | Check for Price | CMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN | COM23025-50.000-EXT-T-TR vs AP2SM-50.000MHZ-F-R-B |
| AP2SM-50.000MHZ-R-OP2 | Abracon Corporation | Check for Price | CMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN | COM23025-50.000-EXT-T-TR vs AP2SM-50.000MHZ-R-OP2 |
| AP2SM-50.000MHZ-F-R-OP1 | Abracon Corporation | Check for Price | CMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN | COM23025-50.000-EXT-T-TR vs AP2SM-50.000MHZ-F-R-OP1 |
| NZ2016SA-50.000M-NSA3442D | Nihon Dempa Kogyo Co Ltd | Check for Price | CMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT PACKAGE-4 | COM23025-50.000-EXT-T-TR vs NZ2016SA-50.000M-NSA3442D |
