Capacitors / Ceramic Capacitors / CL21C100JBANNNC
Datasheets
CL21C100JBANNNC by:

Capacitor, Ceramic, Chip, General Purpose, 10pF, 50V, ±5%, C0G/NP0, 0805 (2012 mm), 0.026"T, -55º ~ +125ºC, 7" Reel

Part Details for CL21C100JBANNNC by Samsung Electro-Mechanics

Results Overview of CL21C100JBANNNC by Samsung Electro-Mechanics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CL21C100JBANNNC Information

CL21C100JBANNNC by Samsung Electro-Mechanics is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CL21C100JBANNNC

Part # Distributor Description Stock Price Buy
DISTI # 42AH1719
Newark Cap, 10Pf, 50V, Mlcc, 0805, Capacitance:10Pf, Voltage Rating:50V, Ceramic Capacitor Case:0805 [2012 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:Cl Series, Operating Temperature Min:-55°C, Rohs Compliant: Yes |Samsung Electro-Mechanics CL21C100JBANNNC RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.0170
  • 5,000 $0.0160
  • 10,000 $0.0110
$0.0110 / $0.0170 Buy Now
Quest Components CAPACITOR, MULTILAYER, CERAMIC, 50V, 5%, C0G, 30PPM/CEL TC, 10PF, SURFACE MOUNT, 0805 12720
  • 1 $0.7500
  • 5,334 $0.1313
  • 12,191 $0.1125
$0.1125 / $0.7500 Buy Now
Quest Components CAPACITOR, MULTILAYER, CERAMIC, 50V, 5%, C0G, 30PPM/CEL TC, 10PF, SURFACE MOUNT, 0805 2265
  • 1 $0.0900
  • 334 $0.0300
  • 1,668 $0.0180
$0.0180 / $0.0900 Buy Now
Quest Components CAPACITOR, MULTILAYER, CERAMIC, 50V, 5%, C0G, 30PPM/CEL TC, 10PF, SURFACE MOUNT, 0805 64
  • 1 $0.1050
  • 49 $0.0700
$0.0700 / $0.1050 Buy Now
Vyrian Capacitors 1466
RFQ

Part Details for CL21C100JBANNNC

CL21C100JBANNNC CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

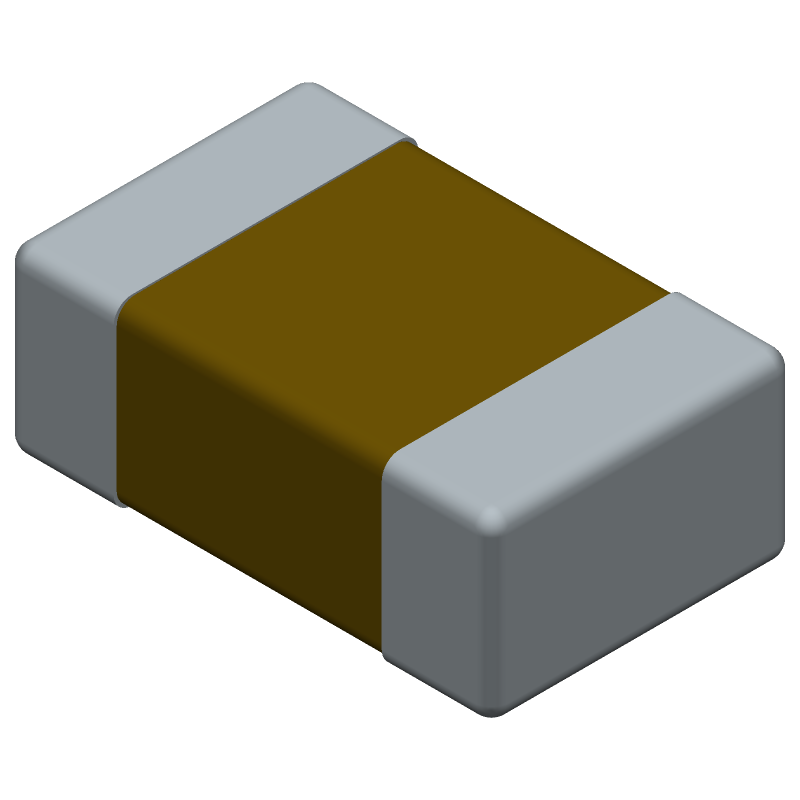

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CL21C100JBANNNC Part Data Attributes

Parametric Data
CL21C100JBANNNC Samsung Electro-Mechanics
Buy Now Datasheet
Compare Parts:
CL21C100JBANNNC Samsung Electro-Mechanics Capacitor, Ceramic, Chip, General Purpose, 10pF, 50V, ±5%, C0G/NP0, 0805 (2012 mm), 0.026"T, -55º ~ +125ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer SAMSUNG ELECTRO-MECHANICS
Part Package Code 0805
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer SAMSUNG
Capacitance 0.00001 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.75 mm
JESD-609 Code e3
Length 2 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, CARDBOARD, 7 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 50 V
Size Code 0805
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 1.25 mm

Alternate Parts for CL21C100JBANNNC

This table gives cross-reference parts and alternative options found for CL21C100JBANNNC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CL21C100JBANNNC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
C0805T100J5GBL7210 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00001uF, Surface Mount, 0805, CHIP CL21C100JBANNNC vs C0805T100J5GBL7210
C0805T100D5GCL7800 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.00001uF, 0805, CL21C100JBANNNC vs C0805T100D5GCL7800
C0805T100D5GBLTU KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.00001uF, 0805, CL21C100JBANNNC vs C0805T100D5GBLTU
C0805T100J5GBL KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00001uF, Surface Mount, 0805, CHIP CL21C100JBANNNC vs C0805T100J5GBL
C0805T100J5GCCTU KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.00001uF, 0805, CL21C100JBANNNC vs C0805T100J5GCCTU
C0805T100J5GBCTU KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00001uF, Surface Mount, 0805, CHIP CL21C100JBANNNC vs C0805T100J5GBCTU
C0805T100D5GAL7013 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.00001uF, 0805, CL21C100JBANNNC vs C0805T100D5GAL7013
C0805T100J5GBC7867 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.00001uF, 0805, CL21C100JBANNNC vs C0805T100J5GBC7867
HH21N100J500LG Walsin Technology Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00001uF, Surface Mount, 0805, CHIP CL21C100JBANNNC vs HH21N100J500LG
C0805T100D5GAC7800 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.00001uF, 0805, CL21C100JBANNNC vs C0805T100D5GAC7800

CL21C100JBANNNC Related Parts

CL21C100JBANNNC Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile is 250°C for 3-5 seconds, with a peak temperature of 260°C for 1-2 seconds.

  • The CL21C100JBANNNC is designed to handle high-frequency noise up to 1 GHz, making it suitable for high-speed applications.

  • The MSL of the CL21C100JBANNNC is 3, which means it can withstand exposure to moisture for up to 168 hours at 30°C and 60% relative humidity.

  • Yes, the CL21C100JBANNNC meets the requirements for automotive applications, including AEC-Q200 qualification and compliance with ISO/TS 16949.

  • The ESR of the CL21C100JBANNNC is typically around 50 mΩ at 100 kHz, making it suitable for high-frequency applications.
