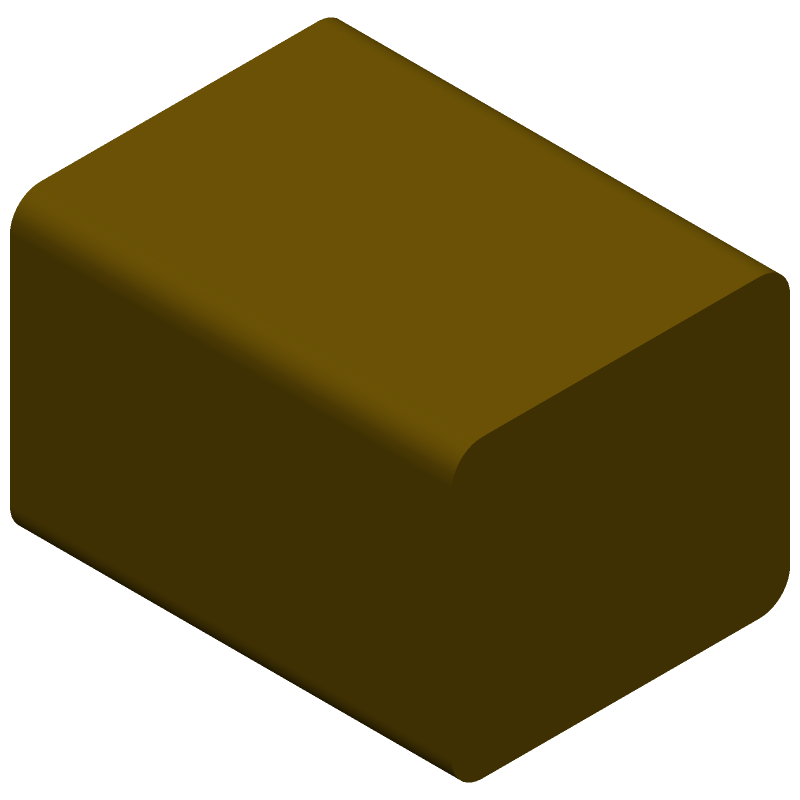

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CGA8M1X7T2J224K200KC by TDK Corporation
Results Overview of CGA8M1X7T2J224K200KC by TDK Corporation
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Industrial Automation
Healthcare
Renewable Energy
Robotics and Drones
CGA8M1X7T2J224K200KC Information
CGA8M1X7T2J224K200KC by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CGA8M1X7T2J224K200KC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-7929-1-ND
|
DigiKey | CAP CER 0.22UF 630V X7T 1812 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3843 In Stock |
|
$0.3649 / $1.2400 | Buy Now |
|
DISTI #
CGA8M1X7T2J224K200
|
Avnet Americas | Multilayer Ceramic Capacitor, 0.22 uF, 630 V, ? 10%, X7T, 1812 [4532 Metric] - Tape and Reel (Alt: CGA8M1X7T2J224K200) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.3734 / $0.3989 | Buy Now |
|
DISTI #
810-CGA8M1X7T2J224K
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT CGA 1812 630V 0.22uF X7T 10% AEC-Q200 RoHS: Compliant | 1809 |
|
$0.4010 / $1.2700 | Buy Now |
|
DISTI #
V72:2272_06586190
|
Arrow Electronics | Cap Ceramic 0.22uF 630V X7T 10% Pad SMD 1812 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 268 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2209 Container: Cut Strips | Americas - 912 |
|
$0.3667 / $0.3729 | Buy Now |
|
DISTI #
84995295
|
Verical | Cap Ceramic 0.22uF 630V X7T 10% Pad SMD 1812 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 68 Package Multiple: 1 | Americas - 1000 |
|
$0.5630 / $1.1900 | Buy Now |
|
DISTI #
61269237
|
Verical | Cap Ceramic 0.22uF 630V X7T 10% Pad SMD 1812 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 268 Package Multiple: 1 Date Code: 2209 | Americas - 912 |
|
$0.5667 | Buy Now |
|
DISTI #
CGA8M1X7T2J224KKC
|
TME | Capacitor: ceramic, MLCC, 220nF, 630V, X7T, ±10%, SMD, 1812 Min Qty: 1000 | 0 |
|
$0.3540 / $0.3710 | RFQ |
|
DISTI #
CGA8M1X7T2J224K200KC
|
Avnet Abacus | Multilayer Ceramic Capacitor 022 uF 630 V 10 X7T 1812 4532 Metric (Alt: CGA8M1X7T2J224K200KC) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
CGA8M1X7T2J224K200KC
|
Chip One Stop | Passives pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1000 |
|
$0.3840 / $1.1900 | Buy Now |
Part Details for CGA8M1X7T2J224K200KC
CGA8M1X7T2J224K200KC CAD Models
CGA8M1X7T2J224K200KC Part Data Attributes
|
|
CGA8M1X7T2J224K200KC
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
CGA8M1X7T2J224K200KC
TDK Corporation
Ceramic Capacitor, Multilayer, Ceramic, 630V, 10% +Tol, 10% -Tol, X7T, -33/+22% TC, 0.22uF, Surface Mount, 1812, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 0.22 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 2 mm | |
| JESD-609 Code | e3 | |
| Length | 4.5 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 630 V | |
| Reference Standard | AEC-Q200 | |
| Size Code | 1812 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7T | |
| Temperature Coefficient | -33/+22% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 3.2 mm |
CGA8M1X7T2J224K200KC Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the CGA8M1X7T2J224K200KC is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the CGA8M1X7T2J224K200KC is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.
-
The maximum operating temperature for the CGA8M1X7T2J224K200KC is 125°C.
-
Yes, the CGA8M1X7T2J224K200KC is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
-
The ESR of the CGA8M1X7T2J224K200KC is 50 mΩ maximum at 100 kHz.
