Logic / Gates / CD74HC4002M96G4
Datasheets
CD74HC4002M96G4 by: Texas Instruments

High Speed CMOS Logic Dual 4-Input NOR Gates 14-SOIC -55 to 125

Part Details for CD74HC4002M96G4 by Texas Instruments

Results Overview of CD74HC4002M96G4 by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CD74HC4002M96G4 Information

CD74HC4002M96G4 by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Part Details for CD74HC4002M96G4

CD74HC4002M96G4 CAD Models

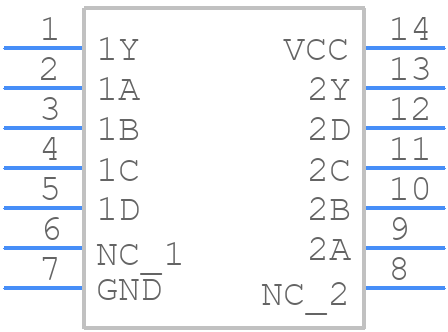

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CD74HC4002M96G4 Part Data Attributes

Parametric Data
CD74HC4002M96G4 Texas Instruments
Buy Now Datasheet
Compare Parts:
CD74HC4002M96G4 Texas Instruments High Speed CMOS Logic Dual 4-Input NOR Gates 14-SOIC -55 to 125
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description SOP, SOP14,.25
Pin Count 14
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Family HC/UH
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Length 8.65 mm
Load Capacitance (CL) 50 pF
Logic IC Type NOR GATE
Max I(ol) 0.004 A
Moisture Sensitivity Level 1
Number of Functions 2
Number of Inputs 4
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Prop. Delay@Nom-Sup 30 ns
Propagation Delay (tpd) 150 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 1.75 mm
Supply Voltage-Max (Vsup) 6 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 4.5 V
Surface Mount YES
Technology CMOS
Temperature Grade MILITARY
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm

Alternate Parts for CD74HC4002M96G4

This table gives cross-reference parts and alternative options found for CD74HC4002M96G4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74HC4002M96G4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CD74HC4002MT Texas Instruments $0.4080 2-ch, 4-input, 2-V to 6-V 5.2 mA drive strength NOR gate 14-SOIC -55 to 125 CD74HC4002M96G4 vs CD74HC4002MT
MM74HC4002M National Semiconductor Corporation Check for Price IC HC/UH SERIES, DUAL 4-INPUT NOR GATE, PDSO14, PLASTIC, SO-14, Gate CD74HC4002M96G4 vs MM74HC4002M
SN74HC4002D Texas Instruments Check for Price HC/UH SERIES, DUAL 4-INPUT NOR GATE, PDSO14, PLASTIC, SO-14 CD74HC4002M96G4 vs SN74HC4002D
74HC4002DB,118 NXP Semiconductors Check for Price 74HC(T)4002 - Dual 4-input NOR gate SSOP1 14-Pin CD74HC4002M96G4 vs 74HC4002DB,118
935187440118 NXP Semiconductors Check for Price IC HC/UH SERIES, DUAL 4-INPUT NOR GATE, PDSO14, SOT-337-1, SSOP-14, Gate CD74HC4002M96G4 vs 935187440118
MC74HC4002D Motorola Semiconductor Products Check for Price NOR Gate, HC/UH Series, 2-Func, 4-Input, CMOS, PDSO14, PLASTIC, SOIC-14 CD74HC4002M96G4 vs MC74HC4002D
MC74HC4002DDR2 Motorola Semiconductor Products Check for Price NOR Gate, HC/UH Series, 2-Func, 4-Input, CMOS, PDSO14, SOIC-14 CD74HC4002M96G4 vs MC74HC4002DDR2
SN74HC4002DR-00 Texas Instruments Check for Price HC/UH SERIES, DUAL 4-INPUT NOR GATE, PDSO14 CD74HC4002M96G4 vs SN74HC4002DR-00
Part Number Manufacturer Composite Price Description Compare
CD74HC4002M96 Texas Instruments $0.2353 2-ch, 4-input, 2-V to 6-V 5.2 mA drive strength NOR gate 14-SOIC -55 to 125 CD74HC4002M96G4 vs CD74HC4002M96
74HC4002PW,112 Nexperia $0.2518 74HC4002 - Dual 4-input NOR gate@en-us TSSOP 14-Pin CD74HC4002M96G4 vs 74HC4002PW,112
CD74HC4002M96E4 Texas Instruments Check for Price HC/UH SERIES, DUAL 4-INPUT NOR GATE, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14 CD74HC4002M96G4 vs CD74HC4002M96E4
74HC4002D NXP Semiconductors Check for Price IC HC/UH SERIES, DUAL 4-INPUT NOR GATE, PDSO14, SOT-108-1, SO-14, Gate CD74HC4002M96G4 vs 74HC4002D
SN74HC4002DR Texas Instruments Check for Price HC/UH SERIES, DUAL 4-INPUT NOR GATE, PDSO14, PLASTIC, SO-14 CD74HC4002M96G4 vs SN74HC4002DR
74HC4002PW Nexperia Check for Price NOR Gate CD74HC4002M96G4 vs 74HC4002PW
CD74HC4002MG4 Texas Instruments Check for Price High Speed CMOS Logic Dual 4-Input NOR Gates 14-SOIC -55 to 125 CD74HC4002M96G4 vs CD74HC4002MG4
74HC4002D-T NXP Semiconductors Check for Price IC HC/UH SERIES, DUAL 4-INPUT NOR GATE, PDSO14, SOT-108-1, SO-14, Gate CD74HC4002M96G4 vs 74HC4002D-T
M74HC4002TTR STMicroelectronics Check for Price HC/UH SERIES, DUAL 4-INPUT NOR GATE, PDSO14, TSSOP-14 CD74HC4002M96G4 vs M74HC4002TTR
935187440112 Nexperia Check for Price NOR Gate, HC/UH Series, 2-Func, 4-Input, CMOS, PDSO14 CD74HC4002M96G4 vs 935187440112
