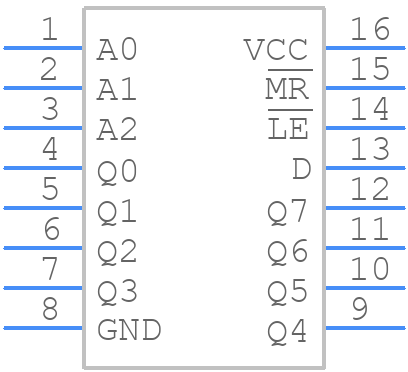

Part Symbol
-

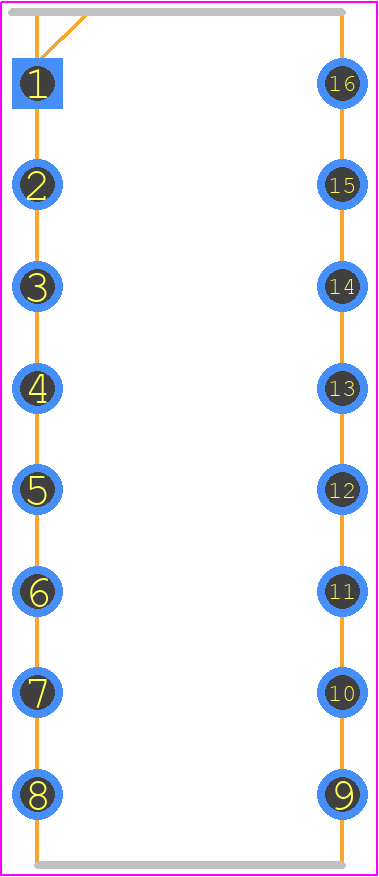

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD54HCT259F3A by Texas Instruments
Results Overview of CD54HCT259F3A by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CD54HCT259F3A Information
CD54HCT259F3A by Texas Instruments is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD54HCT259F3A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-CD54HCT259F3A-ND
|
DigiKey | IC D-TYPE ADDR 1:8 16-CDIP Lead time: 12 Weeks Container: Tube | Temporarily Out of Stock |
|
Buy Now | |
|
|
Vyrian | Peripheral ICs | 649 |
|
RFQ |
Part Details for CD54HCT259F3A
CD54HCT259F3A CAD Models
CD54HCT259F3A Part Data Attributes
|
|
CD54HCT259F3A
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD54HCT259F3A
Texas Instruments
High Speed CMOS Logic 8-Bit Addressable Latch 16-CDIP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | DIP, DIP16,.3 | |
| Pin Count | 16 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | 1:8 DMUX FOLLOWED BY LATCH | |
| Family | HCT | |
| JESD-30 Code | R-GDIP-T16 | |
| JESD-609 Code | e0 | |
| Length | 19.56 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | D LATCH | |
| Max I(ol) | 0.004 A | |
| Number of Bits | 8 | |
| Number of Functions | 8 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Polarity | TRUE | |
| Package Body Material | CERAMIC, GLASS-SEALED | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Power Supply Current-Max (ICC) | 0.08 mA | |
| Prop. Delay@Nom-Sup | 49 ns | |
| Propagation Delay (tpd) | 57 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Screening Level | 38535Q/M;38534H;883B | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Trigger Type | LOW LEVEL | |
| Width | 7.62 mm |
Alternate Parts for CD54HCT259F3A
This table gives cross-reference parts and alternative options found for CD54HCT259F3A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD54HCT259F3A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| GD74HCT259J | Goldstar Electron Co Ltd | Check for Price | D Latch, HCT Series, 1-Func, Low Level Triggered, 1-Bit, True Output, CMOS, CDIP16, CERAMIC, DIP-16 | CD54HCT259F3A vs GD74HCT259J |
| 5962-8985201EA | Harris Semiconductor | Check for Price | D Latch, HCT Series, 1-Func, Low Level Triggered, 1-Bit, True Output, CMOS, CDIP16, FRIT SEALED, CERDIP-16 | CD54HCT259F3A vs 5962-8985201EA |
| CD74HCT259E | Texas Instruments | Check for Price | High Speed CMOS Logic 8-Bit Addressable Latch 16-PDIP -55 to 125 | CD54HCT259F3A vs CD74HCT259E |
| CD54HCT259F/3A | Intersil Corporation | Check for Price | IC HCT SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CDIP16, FF/Latch | CD54HCT259F3A vs CD54HCT259F/3A |
| 933670190652 | NXP Semiconductors | Check for Price | HCT SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, PDIP16, SOT-38-1, DIP-16 | CD54HCT259F3A vs 933670190652 |
| 74HCT259NB | NXP Semiconductors | Check for Price | HCT SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, PDIP16 | CD54HCT259F3A vs 74HCT259NB |
| 5962-8985201EX | Harris Semiconductor | Check for Price | D Latch, HCT Series, 1-Func, Low Level Triggered, 1-Bit, True Output, CMOS, CDIP16, FRIT SEALED, CERDIP-16 | CD54HCT259F3A vs 5962-8985201EX |
| 5962-8985201EA | Intersil Corporation | Check for Price | HCT SERIES, LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CDIP, FRIT SEALED, CERDIP-16 | CD54HCT259F3A vs 5962-8985201EA |
| GD74HCT259 | Goldstar Electron Co Ltd | Check for Price | D Latch, HCT Series, 1-Func, Low Level Triggered, 1-Bit, True Output, CMOS, PDIP16, PLASTIC, DIP-16 | CD54HCT259F3A vs GD74HCT259 |
CD54HCT259F3A Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the CD54HCT259F3A is 4.5V to 5.5V.
-
To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use decoupling capacitors to reduce noise and ringing.
-
While the CD54HCT259F3A is specified for 5V operation, it can be used in a 3.3V system, but the output voltage levels may not be compatible with 3.3V logic. Use level translators or voltage dividers if necessary.
-
Ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device near its maximum junction temperature (150°C) to prevent thermal damage.
-
The maximum frequency of operation for the CD54HCT259F3A is typically 100 MHz, but this can vary depending on the specific application and system design.
