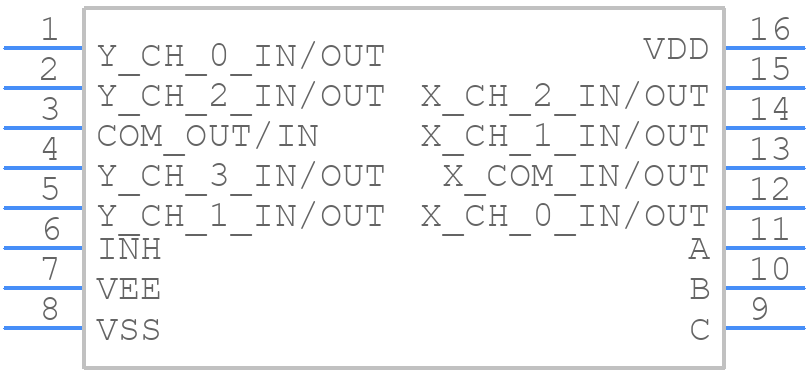

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD4052BM96 by Texas Instruments
Results Overview of CD4052BM96 by Texas Instruments
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CD4052BM96 Information
CD4052BM96 by Texas Instruments is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD4052BM96 | Texas Instruments | 2-channel, 4:1 analog switch with low ON-leakage current 16-SOIC -55 to 125 | |
| CD4052BM96G4 | Texas Instruments | 2-channel, 4:1 analog switch with low ON-leakage current 16-SOIC -55 to 125 | |
| CD4052BM96G3 | Texas Instruments | 2-channel, 4:1 analog switch with low ON-leakage current 16-SOIC -55 to 125 |
Price & Stock for CD4052BM96
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-14272-1-ND
|
DigiKey | IC SWITCH SP4T X 2 240OHM 16SOIC Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
11229 In Stock |
|
$0.1529 / $0.3900 | Buy Now |
|
DISTI #
595-CD4052BM96
|
Mouser Electronics | Multiplexer Switch ICs 4-Ch. Analog A 595-CD4052BM RoHS: Compliant | 12716 |
|
$0.1500 / $0.3800 | Buy Now |
|
DISTI #
J56:1989_00096998
|
Arrow Electronics | Analog Multiplexer Dual 4:1 16-Pin SOIC T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks Date Code: 2429 | Europe - 5000 |
|
$0.1490 / $0.1565 | Buy Now |
|
DISTI #
V72:2272_07240693
|
Arrow Electronics | Analog Multiplexer Dual 4:1 16-Pin SOIC T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2235 Container: Cut Strips | Americas - 1650 |
|
$0.1581 / $0.3717 | Buy Now |
|
DISTI #
66224998
|
Verical | Analog Multiplexer Dual 4:1 16-Pin SOIC T/R RoHS: Compliant Min Qty: 43 Package Multiple: 1 Date Code: 2235 | Americas - 1650 |
|
$0.1581 / $0.2291 | Buy Now |
|
|
Bristol Electronics | 2957 |
|
RFQ | ||
|
|
Quest Components | DIFFERENTIAL MULTIPLEXER, 1 FUNC, 4 CHANNEL, CMOS, PDSO16 | 3 |
|
$0.2589 | Buy Now |
|
|
Rochester Electronics | CD4052B 2-channel, 4:1 analog switch with low ON-leakage current RoHS: Compliant Status: Active Min Qty: 1 | 1493 |
|
$0.1263 / $0.2037 | Buy Now |
|
DISTI #
CD4052BM96
|
TME | IC: digital, demultiplexer,multiplexer, Ch: 4, CMOS, SMD, SOIC16 Min Qty: 1 | 1404 |
|
$0.1440 / $0.3870 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 9232 |
|
RFQ |
Part Details for CD4052BM96
CD4052BM96 CAD Models
CD4052BM96 Part Data Attributes
|
|
CD4052BM96
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4052BM96
Texas Instruments
20-V, 4:1, 2-channel general-purpose multiplexer 16-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | DIFFERENTIAL MULTIPLEXER | |
| Bandwidth-Nom | 25 MHz | |
| Input Voltage-Max | 20.5 V | |
| Input Voltage-Min | -0.5 V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Normal Position | NC | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 40 dB | |
| On-state Resistance Match-Nom | 15 Ω | |
| On-state Resistance-Max (Ron) | 1050 Ω | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output | COMMON OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 20 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 720 ns | |
| Switch-on Time-Max | 720 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for CD4052BM96
This table gives cross-reference parts and alternative options found for CD4052BM96. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD4052BM96, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD4052BCM | Fairchild Semiconductor Corporation | $0.2327 | Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16, 0.150 INCH, MS-012, SOIC-16 | CD4052BM96 vs CD4052BCM |
| HEF4052BTT | NXP Semiconductors | Check for Price | IC DUAL 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, 4.40 MM, PLASTIC, MO-153, SOT403-1, TSSOP-16, Multiplexer or Switch | CD4052BM96 vs HEF4052BTT |
| 933372950013 | Nexperia | Check for Price | Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16 | CD4052BM96 vs 933372950013 |
| HEF4052BT-T | NXP Semiconductors | Check for Price | IC DUAL 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, 3.90 MM, PLASTIC, MS-012, SOT109-1, SOP-16, Multiplexer or Switch | CD4052BM96 vs HEF4052BT-T |
| HCF4052M013TR | STMicroelectronics | Check for Price | 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, SO-20 | CD4052BM96 vs HCF4052M013TR |
| 933372950013 | NXP Semiconductors | Check for Price | IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, PLASTIC, SOT-109, SO-16, Multiplexer or Switch | CD4052BM96 vs 933372950013 |
CD4052BM96 Frequently Asked Questions (FAQ)
-
The CD4052BM96 can operate up to 10 MHz, but the actual frequency of operation depends on the specific application and the capacitance of the signal lines.
-
To ensure signal integrity, use short signal lines, minimize capacitance, and use proper termination and shielding to reduce noise and signal degradation.
-
The CD4052BM96 has a maximum voltage rating of 20V, but the recommended operating voltage is 5V to 15V.
-
Yes, the CD4052BM96 can be used for ADC applications, but it's essential to consider the multiplexer's bandwidth, settling time, and signal-to-noise ratio to ensure accurate ADC conversions.
-
To reduce power consumption, use a low-power mode, minimize the switching frequency, and consider using a lower voltage supply or a voltage regulator to reduce power dissipation.
