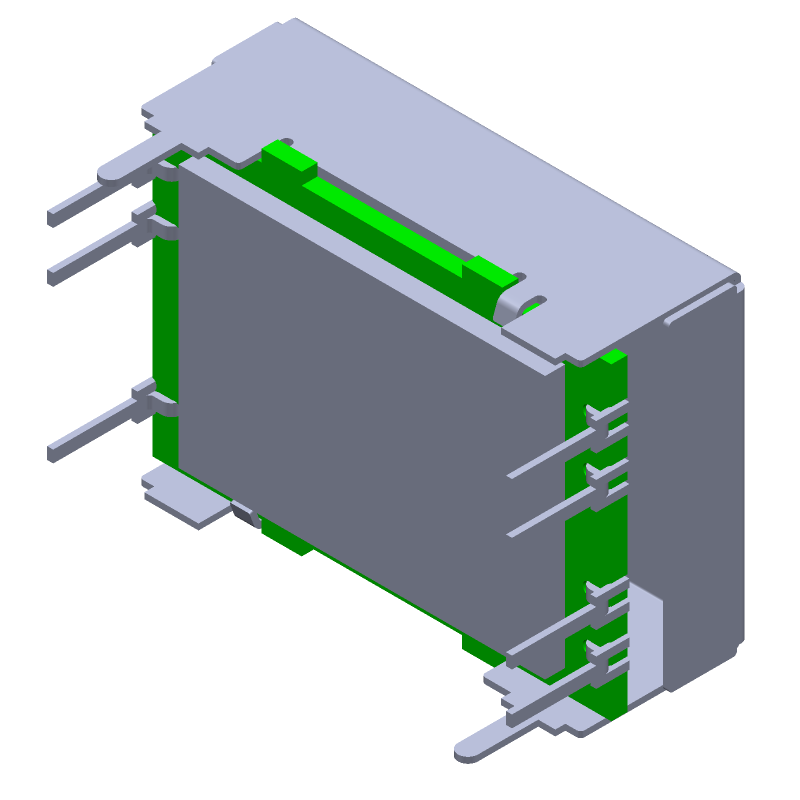

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CC3-4805SF-E by TDK-Lambda Corporation
Results Overview of CC3-4805SF-E by TDK-Lambda Corporation
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Energy and Power Systems
Medical Imaging
Entertainment and Gaming
Robotics and Drones
CC3-4805SF-E Information
CC3-4805SF-E by TDK-Lambda Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CC3-4805SF-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-3276-ND
|
DigiKey | DC DC CONVERTER 5V 3W Min Qty: 1 Lead time: 6 Weeks Container: Tray |
1001 In Stock |
|
$10.6300 / $12.4200 | Buy Now |
|
DISTI #
967-CC3-4805SF-E
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 3W 5V 0.6A RoHS: Compliant | 8 |
|
$10.6300 / $12.4200 | Buy Now |
|
DISTI #
70177167
|
RS | DC-DC Converter, Out 5VDC, In 48VDC, Thru-Hole, Open-Frame, Commercial, 3W, 1 Min Qty: 10 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk | 0 |
|
$12.1700 / $12.5400 | RFQ |
|
|
Onlinecomponents.com | Single Output DC-DC Converter - 3W - Vin: 48V - Vout: 5V - Thru-Hole DIP Package RoHS: Compliant |
50 In Stock |
|
$10.4200 / $13.8000 | Buy Now |
|
DISTI #
CC3-4805SF-E
|
TME | Converter: DC/DC, 3W, Uin: 48VDC, Uout: 5VDC, Iout: 600mA, DIP7, THT Min Qty: 1 | 0 |
|
$11.0200 / $11.3000 | RFQ |
|
DISTI #
CC3-4805SF-E
|
IBS Electronics | DC-DC CONVERTERS ON-BOARD TYPE OUTPUT: 3W 5V ISOLATED TYPE OPTION: DIP TYPE Min Qty: 1 Package Multiple: 1 | 50 |
|
$13.5460 / $17.9400 | Buy Now |
|
DISTI #
000000000005398321
|
Sager | Isolated DC/DC Converters - Through Hole 3W 5V 0.6A Min Qty: 1 | 0 |
|
$10.6300 / $12.4200 | Buy Now |
|
DISTI #
CC3-4805SF-E
|
Chip One Stop | Electromechanicals RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk | 446 |
|
$7.5600 / $11.9000 | Buy Now |
|
|
Master Electronics | Single Output DC-DC Converter - 3W - Vin: 48V - Vout: 5V - Thru-Hole DIP Package RoHS: Compliant |
50 In Stock |
|
$10.4200 / $13.8000 | Buy Now |
Part Details for CC3-4805SF-E
CC3-4805SF-E CAD Models
CC3-4805SF-E Part Data Attributes
|
|
CC3-4805SF-E
TDK-Lambda Corporation
Buy Now
Datasheet
|
Compare Parts:
CC3-4805SF-E
TDK-Lambda Corporation
DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, DIP-7
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TDK-LAMBDA CORP | |
| Package Description | DIP-7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | TDK Lambda | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 76 V | |
| Input Voltage-Min | 36 V | |
| Input Voltage-Nom | 48 V | |
| JESD-30 Code | R-MDMA-T7 | |
| Length | 22.86 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 50 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.6 A | |
| Output Voltage-Max | 6 V | |
| Output Voltage-Min | 4.75 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | METAL | |
| Package Code | DIP | |
| Package Equivalence Code | DIP7/8,1.4,200 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 5.08 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 3 W | |
| Trim/Adjustable Output | YES | |
| Width | 16.6 mm |
CC3-4805SF-E Frequently Asked Questions (FAQ)
-
The recommended input fuse rating is 2A slow-blow type, but it's recommended to consult the datasheet and application notes for specific requirements.
-
The CC3-4805SF-E is rated for operation up to 71°C, but derating is required above 50°C. Consult the datasheet for thermal derating curves and application notes for high-temperature operation.
-
The CC3-4805SF-E requires a minimum load of 10% of the maximum rated output current to maintain regulation and stability.
-
Yes, the CC3-4805SF-E can be paralleled for higher output current, but it's recommended to consult the datasheet and application notes for specific guidelines and precautions.
-
The typical efficiency of the CC3-4805SF-E is around 85-90% depending on the input voltage and output load.
