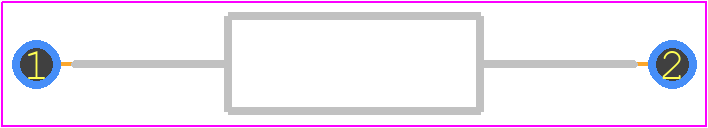

Footprint
-

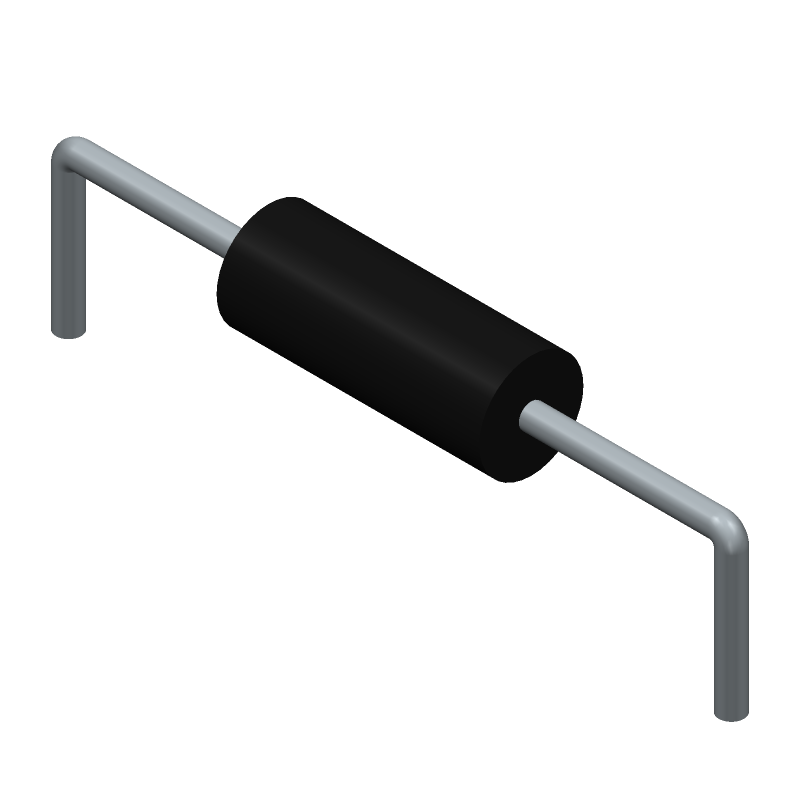

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CBT25J4K7 by TE Connectivity
Results Overview of CBT25J4K7 by TE Connectivity
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CBT25J4K7 Information
CBT25J4K7 by TE Connectivity is a Carbon Composition Resistor.
Carbon Composition Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CBT25J4K7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
22R0636
|
Newark | Through Hole Carbon Composition Resistor, Cbt Series, 4.7 Kohm, 250 Mw, - 5, 250 V Rohs Compliant: Yes |Neohm Te Connectivity CBT25J4K7 RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.1500 / $0.1590 | Buy Now |
|
DISTI #
74AC8350
|
Newark | Cbt 1/4 5% 4K7 Rohs Compliant: Yes |Neohm Te Connectivity CBT25J4K7 RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.1550 / $0.1720 | Buy Now |
|
|
Bisco Industries | 1 |
|
Buy Now | ||
|
|
Onlinecomponents.com | Carbon Composite Resistor - 4.7 Kohm (+/-) 5% - 0.25W - 250V - Through Hole - -55°C to +125°C - Ammo Box RoHS: Compliant |
2263 In Stock |
|
$0.1050 / $0.1485 | Buy Now |
|
DISTI #
51651221
|
Verical | Res Carbon Composition 4.7K Ohm 5% 0.25W(1/4W) Conformal Coated AXL Ammo RoHS: Compliant Min Qty: 433 Package Multiple: 433 Date Code: 1420 | Americas - 433 |
|
$0.1482 / $0.1846 | Buy Now |
|
DISTI #
CBT25J4K7
|
IBS Electronics | AXIAL CARBON RESISTOR 4.7KOHMS +, /-5% 0.25W -700 - +, 400PPM/DEGC | TE CONNECTIVITY CBT25J4K7 Min Qty: 1830 Package Multiple: 1 | 1830 |
|
$0.1388 | Buy Now |
|
DISTI #
3-1625875-6
|
Avnet Abacus | Res Carbon Composition 47K Ohm 5 14W Conformal AXL ThruHole Ammo Pack (Alt: 3-1625875-6) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | Carbon Composite Resistor - 4.7 Kohm (+/-) 5% - 0.25W - 250V - Through Hole - -55°C to +125°C - Ammo Box RoHS: Compliant |
2263 In Stock |
|
$0.1050 / $0.1485 | Buy Now |
Part Details for CBT25J4K7
CBT25J4K7 CAD Models
CBT25J4K7 Part Data Attributes
|
|
CBT25J4K7
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
CBT25J4K7
TE Connectivity
RESISTOR, CARBON COMPOSITION, 0.25W, 5%, 700ppm, 4700ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.10.00.60 | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | TE Connectivity | |
| Construction | Cylindrical | |
| Lead Diameter | 0.6 mm | |
| Lead Length | 27 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 2.4 mm | |
| Package Length | 6.3 mm | |
| Package Shape | TUBULAR PACKAGE | |
| Package Style | Axial | |
| Packing Method | AMMO PACK | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Resistance | 4700 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | CARBON COMPOSITION | |
| Temperature Coefficient | -700,400 ppm/°C | |
| Terminal Shape | WIRE | |
| Tolerance | 5% | |
| Working Voltage | 250 V |
