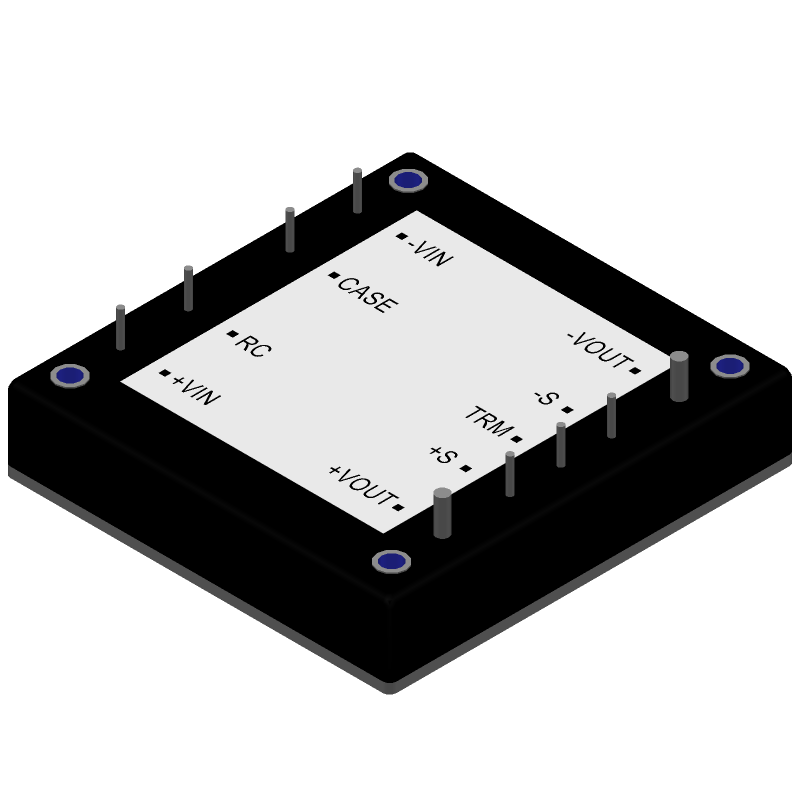

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CBS502424 by Cosel USA Inc
Results Overview of CBS502424 by Cosel USA Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CBS502424 Information
CBS502424 by Cosel USA Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CBS502424
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70160684
|
RS | DC-DC Converter, 24V, 2.1A, 18-36V In, Enclosed, Telecom, Switching, CBS Series Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk | 12 |
|
$159.6200 | Buy Now |
Part Details for CBS502424
CBS502424 CAD Models
CBS502424 Part Data Attributes
|
|
CBS502424
Cosel USA Inc
Buy Now
Datasheet
|
Compare Parts:
CBS502424
Cosel USA Inc
DC-DC Regulated Power Supply Module, 1 Output, 50.4W, Hybrid, PACKAGE-9
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | COSEL CO LTD | |
| Part Package Code | MODULE | |
| Package Description | PACKAGE-9 | |
| Pin Count | 9 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Cosel | |
| Additional Feature | LG-MAX, WD-MAX | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 18 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-XDMA-P9 | |
| Length | 61 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 9 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 26.4 V | |
| Output Voltage-Min | 14.4 V | |
| Output Voltage-Nom | 24 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 13.2 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 15 | |
| Total Power Output-Max | 50.4 W | |
| Trim/Adjustable Output | YES | |
| Width | 57.9 mm |
CBS502424 Frequently Asked Questions (FAQ)
-
Cosel USA Inc recommends a multi-layer PCB with a large ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K is suggested between the module and the heat sink.
-
To ensure EMC, Cosel USA Inc recommends following the guidelines in the datasheet for proper PCB layout, component placement, and shielding. Additionally, the use of a metal enclosure and proper cable shielding is recommended. It is also important to follow the relevant EMC standards for the target application.
-
The derating curve for the CBS502424 is available upon request from Cosel USA Inc. The curve provides the maximum output power at different ambient temperatures. As the ambient temperature increases, the output power must be derated to prevent overheating and ensure reliable operation.
-
Yes, the CBS502424 can be used in a redundant or N+1 configuration. However, it is essential to follow the guidelines in the datasheet for proper synchronization and control of the multiple modules. Additionally, the system designer should ensure that the total output power and current are within the specified limits.
-
The MTBF of the CBS502424 is calculated based on the Telcordia SR-332 standard. The MTBF is approximately 1.5 million hours at 40°C ambient temperature. However, this value may vary depending on the specific application and operating conditions.
