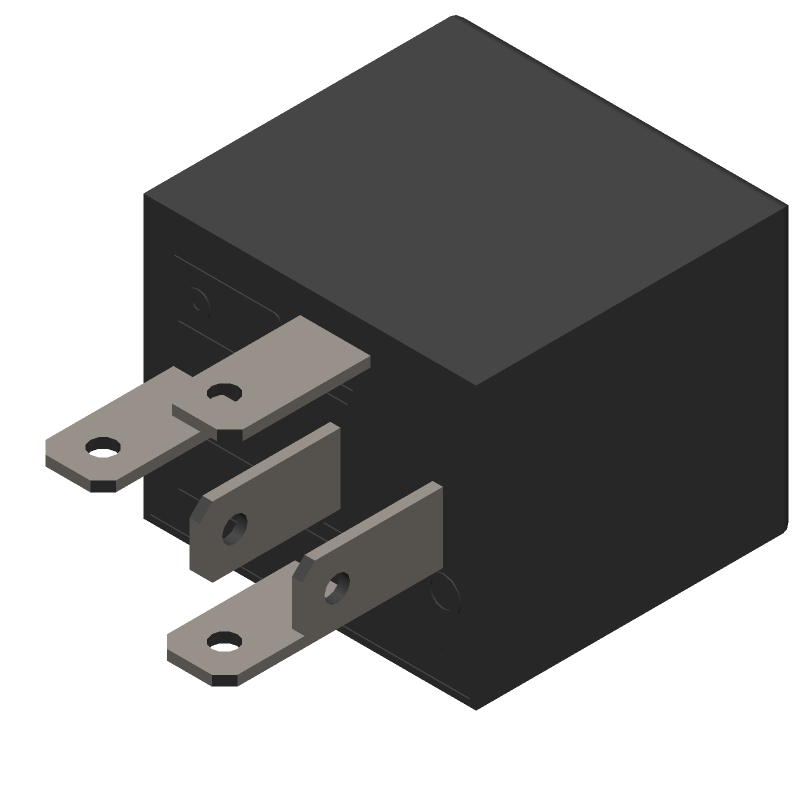

CB1A-12V by: Panasonic Electronic Components

Power/Signal Relay, SPST, Momentary, 0.117A (Coil), 12VDC (Coil), 1400mW (Coil), 1A (Contact), 12VDC (Contact), DC Input, DC Output, PCB Mount-Straight, ROHS COMPLIANT

Part Details for CB1A-12V by Panasonic Electronic Components

Results Overview of CB1A-12V by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CB1A-12V Information

CB1A-12V by Panasonic Electronic Components is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for CB1A-12V

Part # Distributor Description Stock Price Buy
DISTI # 52F9227
Newark Relay, Automotive, Spst-No, 14Vdc, 40A, Coil Voltage:12Vdc, Contact Current:40A, Contact Configuration:Spst-No, Relay Mounting:Plug In, Relay Terminals:Solder, Product Range:Cb Series, Contact Voltage Dc Nom:14V, Carry Current:40A Rohs Compliant: Yes |Panasonic CB1A-12V RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 50 $4.8200
  • 100 $4.2900
  • 500 $3.9100
  • 1,000 $3.4500
  • 2,500 $3.2100
$3.2100 / $4.8200 Buy Now
DISTI # 255-1826-ND
DigiKey RELAY AUTOMOTIVE SPST 40A 12V Min Qty: 1 Lead time: 24 Weeks Container: Bulk 345
In Stock
  • 1 $5.2000
  • 10 $4.6310
  • 25 $4.4228
  • 50 $4.2714
  • 100 $4.1249
  • 250 $3.9388
  • 500 $3.8035
  • 1,000 $3.6728
$3.6728 / $5.2000 Buy Now
DISTI # CB1A-12V
Avnet Americas Relay Automotive SPST-NO 40A 12VDC 103Ohm Quick Connect Plug-In - Bulk (Alt: CB1A-12V) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 24 Weeks, 0 Days Container: Bulk 0
  • 50 $3.0065
  • 100 $2.9643
  • 200 $2.9163
  • 300 $2.8680
  • 400 $2.8197
$2.8197 / $3.0065 Buy Now
DISTI # 769-CB1A-12V
Mouser Electronics Automotive Relays 40A 12VDC 1 FORM A SEALED QC RoHS: Compliant 0
  • 1 $3.2400
  • 50 $3.1200
  • 2,500 $3.0600
$3.0600 / $3.2400 Order Now
DISTI # V99:2348_10814627
Arrow Electronics Power Relay 12VDC 40A SPST-NO(26x22x25)mm Socket RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 24 Weeks Date Code: 2207 Americas - 47
  • 0 $2.8689
  • 1 $1.7740
$1.7740 / $2.8689 Buy Now
DISTI # 70158369
RS Relay, E-Mech, Automotive, SPST-NO, Cur-Rtg 40A, Ctrl-V 12DC, Vol-Rtg 14DC, Plug-In Min Qty: 1 Package Multiple: 1 Lead time: 24 Weeks, 0 Days Container: Bulk 33
  • 1 $6.0000
  • 10 $5.8200
  • 25 $5.7000
  • 50 $5.5800
  • 100 $5.4600
$5.4600 / $6.0000 Buy Now
Onlinecomponents.com Relays 12VDC 103Ohm 40A SPST-NO(26mm 22mm 36mm) Plug-In Automotive Relay Automotive RoHS: Compliant 110 In Stock
1000 On Order
  • 50 $3.7700
  • 100 $3.7100
  • 250 $3.4900
  • 500 $3.3000
  • 1,000 $2.4400
  • 2,500 $2.3700
  • 5,000 $2.3100
  • 7,500 $2.2800
$2.2800 / $3.7700 Buy Now
DISTI # 88803288
Verical Power Relay 12VDC 40A SPST-NO(26x22x25)mm Socket RoHS: Compliant Min Qty: 50 Package Multiple: 50 Date Code: 2436 Americas - 100
  • 50 $4.9010
  • 100 $4.8230
  • 250 $4.5370
  • 500 $4.2900
  • 1,000 $3.1720
$3.1720 / $4.9010 Buy Now
DISTI # CB1A-12V
TTI Automotive Relays 40A 12VDC 1 FORM A SEALED QC RoHS: Compliant pbFree: Pb-Free Min Qty: 2 Package Multiple: 1 Container: Box Americas - 0
  • 2 $3.3600
  • 10 $3.2000
  • 50 $2.8700
  • 250 $2.6600
  • 500 $2.5400
  • 1,000 $2.4900
$2.4900 / $3.3600 Buy Now
DISTI # CB1A-12V
TTI Automotive Relays 40A 12VDC 1 FORM A SEALED QC RoHS: Compliant pbFree: Pb-Free Min Qty: 2 Package Multiple: 1 Container: Box Americas - 0
  • 2 $3.3600
  • 10 $3.2000
  • 50 $2.8700
  • 250 $2.6600
  • 500 $2.5400
  • 1,000 $2.4900
$2.4900 / $3.3600 Buy Now
DISTI # 000000000000191561
Sager NAIS BRAND RELAY Min Qty: 50 0
  • 50 $3.7100
  • 100 $3.5400
  • 200 $3.4400
  • 400 $3.3500
  • 850 $3.2100
$3.2100 / $3.7100 Buy Now
Master Electronics Relays 12VDC 103Ohm 40A SPST-NO(26mm 22mm 36mm) Plug-In Automotive Relay Automotive RoHS: Compliant 110 In Stock
1000 On Order
  • 50 $3.7700
  • 100 $3.7100
  • 250 $3.4900
  • 500 $3.3000
  • 1,000 $2.4400
  • 2,500 $2.3700
  • 5,000 $2.3100
  • 7,500 $2.2800
$2.2800 / $3.7700 Buy Now

Part Details for CB1A-12V

CB1A-12V Part Data Attributes

Parametric Data
CB1A-12V Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
CB1A-12V Panasonic Electronic Components Power/Signal Relay, SPST, Momentary, 0.117A (Coil), 12VDC (Coil), 1400mW (Coil), 1A (Contact), 12VDC (Contact), DC Input, DC Output, PCB Mount-Straight, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.41.00.20
Factory Lead Time 24 Weeks
Samacsys Manufacturer Panasonic
Body Breadth 22 mm
Body Height 25 mm
Body Length or Diameter 26 mm
Coil Current(DC)-Max 0.117 A
Coil Operate Voltage(DC) 7 V
Coil Power 1400 mW
Coil Release Voltage(DC) 4.2 V
Coil Resistance 103 Ω
Coil Voltage(DC)-Max 12 V
Coil/Input Supply Type DC
Contact Current(DC)-Max 1 A
Contact (DC) Max Rating R Load 1A@12VDC
Contact Voltage(DC)-Max 12 V
Contact/Output Supply Type DC
Electrical Life 50000 Cycle(s)
Mounting Feature PANEL MOUNT
Operate Time 15 ms
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Packing Method BOX
Physical Dimension 26mm x 22mm x 25mm
Relay Action MOMENTARY
Relay Function SPST
Relay Type POWER/SIGNAL RELAY
Release Time 15 ms
Sealing EPOXY RESIN SEALED
Surface Mount NO
Termination Type QUICK CONNECT
