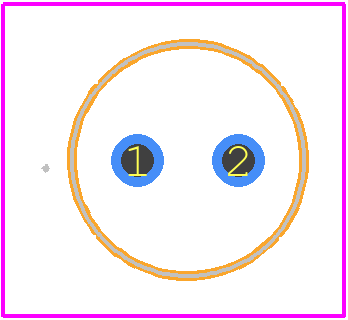

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C503B-BCN-CV0Z0462 by Cree, Inc.
Results Overview of C503B-BCN-CV0Z0462 by Cree, Inc.
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
C503B-BCN-CV0Z0462 Information
C503B-BCN-CV0Z0462 by Cree, Inc. is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for C503B-BCN-CV0Z0462
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08R2921
|
Newark | Led, Round, 5Mm, Blue, 4.1Cd, 470Nm, Led Color:Blue, Led Mounting:Through Hole, Bulb Size:5Mm, Forward Current If:20Ma, Forward Voltage:3.2V, Wavelength Typ:470Nm, Luminous Intensity:4.1Cd, Viewing Angle:30°, Lens Shape:Round, Msl:- Rohs Compliant: Yes |Cree Led C503B-BCN-CV0Z0462 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 4421 |
|
$0.1640 / $0.5130 | Buy Now |
|
DISTI #
C503B-BCN-CV0Z0462CT-ND
|
DigiKey | LED BLUE CLEAR 5MM ROUND T/H Min Qty: 1 Lead time: 2 Weeks Container: Tape & Box (TB), Cut Tape (CT) |
25080 In Stock |
|
$0.1940 / $0.2500 | Buy Now |
|
DISTI #
08R2921
|
Avnet Americas | ROUND 503-B SERIES LED -BLUE COLOR,FULL RANK,AMMO PACK - Bulk (Alt: 08R2921) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 3 Days Container: Bulk | 4421 Partner Stock |
|
$0.2100 / $0.5130 | Buy Now |
|
DISTI #
C503B-BCN-CV0Z0462
|
Avnet Americas | ROUND 503-B SERIES LED -BLUE COLOR,FULL RANK,AMMO PACK - Ammo Pack (Alt: C503B-BCN-CV0Z0462) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 3 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.1281 | Buy Now |
|
DISTI #
941-C503BBCNCV0Z0462
|
Mouser Electronics | Single Color LEDs 30DG BL NOSTNDOF HI BRT LAMP 470NM 3.2V RoHS: Compliant | 13845 |
|
$0.1680 / $0.2500 | Buy Now |
|
DISTI #
V36:1790_06264994
|
Arrow Electronics | LED Uni-Color Blue 2-Pin T-1 3/4 Ammo RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 4 Weeks Date Code: 2433 | Americas - 2500 |
|
$0.1507 / $0.1513 | Buy Now |
|
DISTI #
V72:2272_06264994
|
Arrow Electronics | LED Uni-Color Blue 2-Pin T-1 3/4 Ammo RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2311 Container: Cut Strips | Americas - 209 |
|
$0.1528 / $0.1845 | Buy Now |
|
DISTI #
83682609
|
Verical | LED Uni-Color Blue 2-Pin T-1 3/4 Ammo RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Date Code: 2433 | Americas - 2500 |
|
$0.1507 / $0.1513 | Buy Now |
|
DISTI #
66922962
|
Verical | LED Uni-Color Blue 2-Pin T-1 3/4 Ammo RoHS: Compliant Min Qty: 44 Package Multiple: 1 Date Code: 2311 | Americas - 209 |
|
$0.1528 / $0.1774 | Buy Now |
|
DISTI #
C503B-BCN-CV0Z0462
|
TTI | Single Color LEDs 30DG BL NOSTNDOF HI BRT LAMP 470NM 3.2V RoHS: Compliant pbFree: Pb-Free Min Qty: 2500 Package Multiple: 2500 Container: Ammo Pack | Americas - 0 |
|
$0.1750 | Buy Now |
Part Details for C503B-BCN-CV0Z0462
C503B-BCN-CV0Z0462 CAD Models
C503B-BCN-CV0Z0462 Part Data Attributes
|
|
C503B-BCN-CV0Z0462
Cree, Inc.
Buy Now
Datasheet
|
Compare Parts:
C503B-BCN-CV0Z0462
Cree, Inc.
Single Color LED, Blue, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | CREE LED INC | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Factory Lead Time | 6 Weeks, 3 Days | |
| Samacsys Manufacturer | CREE LED | |
| Color | BLUE | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.03 A | |
| Forward Voltage-Max | 4 V | |
| Luminous Intensity-Min | 2.13 cd | |
| Luminous Intensity-Nom | 7065.0 mcd | |
| Mounting Feature | RADIAL MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 95 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 8.8 mm | |
| Packing Method | AMMO PACK | |
| Reverse Voltage-Max | 5 V | |
| Shape | ROUND | |
| Size | 5 mm | |
| Surface Mount | NO | |
| T-code | T-1 3/4 | |
| Terminal Pitch | 2.54 mm | |
| Viewing Angle | 30 deg |
