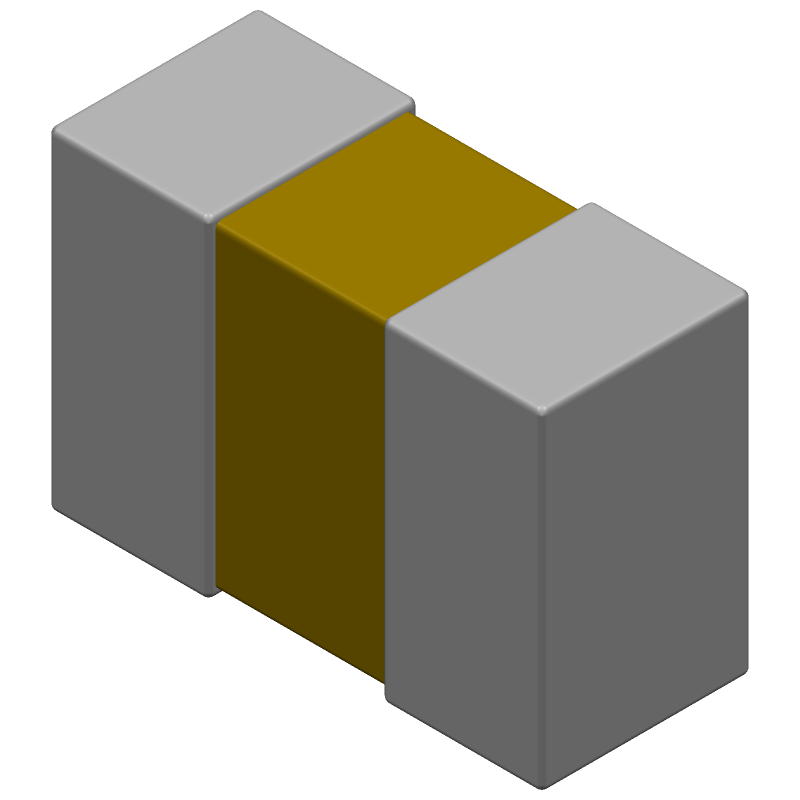

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C0805X104J5RACAUTO by KEMET Corporation
Results Overview of C0805X104J5RACAUTO by KEMET Corporation
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
C0805X104J5RACAUTO Information
C0805X104J5RACAUTO by KEMET Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for C0805X104J5RACAUTO
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67AC8262
|
Newark | Cap, 0.1Μf, 50V, 5%, X7R, 0805, Capacitance:0.1Μf, Voltage Rating:50V, Ceramic Capacitor Case:0805 [2012 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:X7R, Product Range:Aec-Q200 X Series Ft-Cap, Operating Rohs Compliant: Yes |Kemet C0805X104J5RACAUTO RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5709 |
|
$0.2770 / $0.4540 | Buy Now |
|
DISTI #
76AH8845
|
Newark | Cap, Aec-Q200, 0.1Uf, 50V, Mlcc, 0805, Capacitance:0.1Μf, Voltage(Dc):50V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:X7R, Product Range:X Series Ft-Cap Series Rohs Compliant: Yes |Kemet C0805X104J5RACAUTO RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2180 | Buy Now |
|
DISTI #
399-17646-1-ND
|
DigiKey | CAP CER 0.1UF 50V X7R 0805 Min Qty: 1 Lead time: 21 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
13798 In Stock |
|
$0.1769 / $0.7100 | Buy Now |
|
DISTI #
80-C0805X104J5RAUTO
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 50V 0.1uF X7R 0805 5% Flex AEC-Q200 RoHS: Compliant | 4436 |
|
$0.1750 / $0.7000 | Buy Now |
|
DISTI #
V72:2272_08964161
|
Arrow Electronics | Cap Ceramic 0.1uF 50V X7R 5% Pad SMD 0805 Flexible Termination 125°C Medical T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 586 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2504 Container: Cut Strips | Americas - 4000 |
|
$0.1680 / $0.1706 | Buy Now |
|
DISTI #
87555938
|
Verical | Cap Ceramic 0.1uF 50V X7R 5% Pad SMD 0805 Flexible Termination 125°C Medical T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 586 Package Multiple: 1 Date Code: 2504 | Americas - 4000 |
|
$0.1706 | Buy Now |
|
DISTI #
C0805X104J5RACAUTO
|
TTI | Multilayer Ceramic Capacitors MLCC - SMD/SMT 50V 0.1uF X7R 0805 5% Flex AEC-Q200 RoHS: Compliant pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Reel | Americas - 0 |
|
$0.1600 / $0.1710 | Buy Now |
|
DISTI #
C0805X104J5RACAUTO
|
Avnet Abacus | - Tape and Reel (Alt: C0805X104J5RACAUTO) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 25 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for C0805X104J5RACAUTO
C0805X104J5RACAUTO CAD Models
C0805X104J5RACAUTO Part Data Attributes
|
|
C0805X104J5RACAUTO
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
C0805X104J5RACAUTO
KEMET Corporation
Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0805, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Samacsys Manufacturer | KEMET | |
| Capacitance | 0.1 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.78 mm | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, Embossed Plastic, 7 Inch | |
| Positive Tolerance | 5% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Reference Standard | AEC-Q200 | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.25 mm |
C0805X104J5RACAUTO Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the C0805X104J5RACAUTO is between 260°C to 280°C for a maximum of 10 seconds.
-
Yes, the C0805X104J5RACAUTO is a high-reliability capacitor that meets the requirements of AEC-Q200, making it suitable for automotive and other high-reliability applications.
-
The ESR of the C0805X104J5RACAUTO is typically around 50 mohms, but this value can vary depending on the frequency and other operating conditions.
-
The C0805X104J5RACAUTO has a rated voltage of 50V, but it can be used in high-voltage applications up to 100V with derating. However, it's recommended to consult with a KEMET engineer or application note for specific guidance.
-
Yes, the C0805X104J5RACAUTO is compatible with lead-free soldering processes and meets the requirements of RoHS and REACH directives.
