Capacitors / Ceramic Capacitors / C066G103F5G5CR
Datasheets

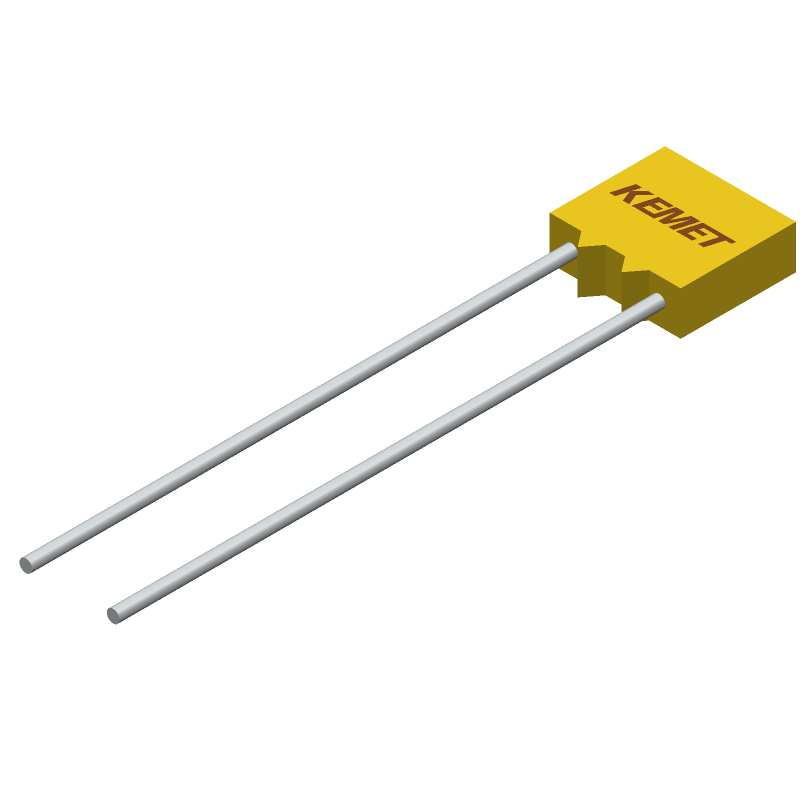

C066G103F5G5CR by: KEMET Corporation

Ceramic Capacitor, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.01uF, Through Hole Mount, 2909, RADIAL LEADED

Part Details for C066G103F5G5CR by KEMET Corporation

Results Overview of C066G103F5G5CR by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems Entertainment and Gaming Automotive

C066G103F5G5CR Information

C066G103F5G5CR by KEMET Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for C066G103F5G5CR

Part # Distributor Description Stock Price Buy
DISTI # 78H9573
Newark Capacitor, ceramic,10000Pf,50Vdc,1-% Tol,1+% Tol, np0-Tc Code Rohs Compliant: No |Kemet C066G103F5G5CR RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $5.6800
  • 250 $5.4200
  • 500 $5.0300
$5.0300 / $5.6800 Buy Now
DISTI # C066G103F5G5CR
Avnet Americas - Bulk (Alt: C066G103F5G5CR) RoHS: Not Compliant Min Qty: 27 Package Multiple: 1 Lead time: 21 Weeks, 0 Days Container: Bulk 0
  • 27 $5.8401
  • 30 $5.8103
  • 60 $5.7805
  • 140 $5.7507
  • 270 $5.7209
$5.7209 / $5.8401 Buy Now
DISTI # 80-C066G103F5G5CR
Mouser Electronics Multilayer Ceramic Capacitors MLCC - Leaded 50V 0.01 uF C0G 1% LS=5.08 mm LDD Mil C0G PRF20 RoHS: Not Compliant 94
  • 1 $10.5900
  • 10 $7.7600
  • 50 $7.4200
  • 100 $5.9500
$5.9500 / $10.5900 Buy Now
Quest Components   76
  • 1 $12.0992
  • 8 $10.7548
  • 24 $9.9482
$9.9482 / $12.0992 Buy Now
DISTI # CCR06CG103FRV
TTI Multilayer Ceramic Capacitors MLCC - Leaded .01UF 50V 1% Min Qty: 10 Package Multiple: 10 Container: Bulk Americas - 1110
In Stock
  • 10 $6.6800
  • 50 $6.5500
  • 100 $6.4200
$6.4200 / $6.6800 Buy Now
DISTI # C066G103F5G5CR
Avnet Abacus Multilayer Ceramic Capacitor 001 uF 50 V 1 C0G NP0 Radial Leaded (Alt: C066G103F5G5CR) RoHS: Not Compliant Min Qty: 100 Package Multiple: 100 Lead time: 23 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for C066G103F5G5CR

C066G103F5G5CR Part Data Attributes

Parametric Data
C066G103F5G5CR KEMET Corporation
Buy Now Datasheet
Compare Parts:
C066G103F5G5CR KEMET Corporation Ceramic Capacitor, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.01uF, Through Hole Mount, 2909, RADIAL LEADED
Pbfree Code No
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer KEMET ELECTRONICS CORP
Package Description , 2909
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8532.23.00.60
Factory Lead Time 40 Weeks
Samacsys Manufacturer KEMET
Capacitance 0.01 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 7.37 mm
JESD-609 Code e0
Length 7.37 mm
Mounting Feature THROUGH HOLE MOUNT
Multilayer Yes
Negative Tolerance 1%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style Radial
Packing Method BULK
Positive Tolerance 1%
Rated (DC) Voltage (URdc) 50 V
Reference Standard MIL-PRF-20/36
Size Code 2909
Surface Mount NO
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish TIN LEAD
Terminal Pitch 5.08 mm
Terminal Shape WIRE
Width 2.29 mm

Alternate Parts for C066G103F5G5CR

This table gives cross-reference parts and alternative options found for C066G103F5G5CR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C066G103F5G5CR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
C066G103F5G5CS KEMET Corporation $6.4969 Ceramic Capacitor, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.01uF, Through Hole Mount, 2909, RADIAL LEADED C066G103F5G5CR vs C066G103F5G5CS
MR065A103FTRTR1 Kyocera AVX Components Check for Price Ceramic Capacitor, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, -/+30ppm/Cel TC, 0.01uF, 2909, C066G103F5G5CR vs MR065A103FTRTR1
CC06CG103FS Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.01uF, Through Hole Mount, 2909, RADIAL LEADED C066G103F5G5CR vs CC06CG103FS
CCR06CG103FPV KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.01uF, Through Hole Mount, 2909, RADIAL LEADED C066G103F5G5CR vs CCR06CG103FPV
C062G103F5G5CS7301 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.01uF, Through Hole Mount, 2909, RADIAL LEADED C066G103F5G5CR vs C062G103F5G5CS7301
C066G103F5G5CP7301 KEMET Corporation Check for Price Cap,Ceramic,10nF,50VDC,1% -Tol,1% +Tol,C0G TC Code,-30,30ppm TC C066G103F5G5CR vs C066G103F5G5CP7301
MR065A103FTT Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.01uF, Through Hole Mount, 2909, CHIP C066G103F5G5CR vs MR065A103FTT
C062G103F5G5CR7303 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, -/+30ppm/Cel TC, 0.01uF, 2909, C066G103F5G5CR vs C062G103F5G5CR7303
MR065A103FATTR1 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.01uF, Through Hole Mount, 2909, RADIAL LEADED C066G103F5G5CR vs MR065A103FATTR1
MR065A103FARTR1 Kyocera AVX Components Check for Price Ceramic Capacitor, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, -/+30ppm/Cel TC, 0.01uF, 2909, C066G103F5G5CR vs MR065A103FARTR1

C066G103F5G5CR Related Parts

C066G103F5G5CR Frequently Asked Questions (FAQ)

  • The recommended land pattern for C066G103F5G5CR can be found in KEMET's Land Pattern Recommendation document, which provides guidelines for pad size, shape, and spacing to ensure reliable soldering and component performance.

  • While the datasheet provides temperature ratings, it's essential to note that C066G103F5G5CR is designed to operate within a specific temperature range. For high-temperature applications, engineers should consult KEMET's application notes and consider derating the component's capacitance and voltage ratings accordingly.

  • While the datasheet doesn't explicitly mention vibration or shock resistance, KEMET's ceramic capacitors are generally designed to withstand moderate levels of vibration and shock. However, for extreme environments, engineers should consult KEMET's reliability and environmental testing data or contact their technical support team for guidance.

  • The ESR of C066G103F5G5CR is not explicitly stated in the datasheet, but it can be estimated using KEMET's ESR calculation tool or by consulting their application notes. Engineers can also contact KEMET's technical support team for specific ESR values or guidance on ESR-related design considerations.

  • Yes, C066G103F5G5CR is designed to be compatible with lead-free soldering processes, such as RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives. However, engineers should ensure that their soldering process meets KEMET's recommended soldering profile and temperature guidelines.
