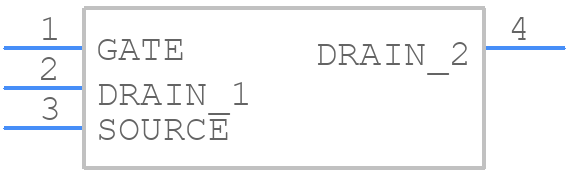

Part Symbol
-

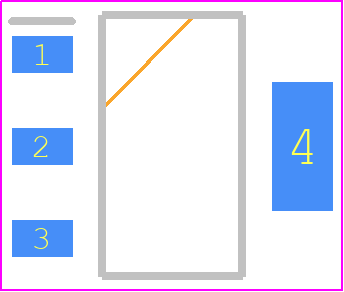

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BSP296NH6327XTSA1 by Infineon Technologies AG
Results Overview of BSP296NH6327XTSA1 by Infineon Technologies AG
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BSP296NH6327XTSA1 Information
BSP296NH6327XTSA1 by Infineon Technologies AG is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BSP296NH6327XTSA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68AC4415
|
Newark | Mosfet, N-Ch, 100V, 1.2A, 150Deg C, 1.8W, Channel Type:N Channel, Drain Source Voltage Vds:100V, Continuous Drain Current Id:1.2A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:1.4V Rohs Compliant: Yes |Infineon BSP296NH6327XTSA1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 8740 |
|
$0.4930 | Buy Now |
|
DISTI #
86AK4508
|
Newark | Mosfet, N-Ch, 100V, 1.2A, Sot-223 Rohs Compliant: Yes |Infineon BSP296NH6327XTSA1 RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.3130 / $0.3250 | Buy Now |
|
DISTI #
BSP296NH6327XTSA1CT-ND
|
DigiKey | MOSFET N-CH 100V 1.2A SOT223-4 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
6040 In Stock |
|
$0.2001 / $0.3900 | Buy Now |
|
DISTI #
BSP296NH6327XTSA1
|
Avnet Americas | Power MOSFET, N Channel, 100 V, 1.2 A, 600 Milliohms, SOT-223, 4 Pins, Surface Mount - Tape and Reel (Alt: BSP296NH6327XTSA1) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Container: Reel | 3000 |
|
$0.1562 / $0.1678 | Buy Now |
|
DISTI #
726-BSP296NH6327XTSA
|
Mouser Electronics | MOSFETs N-Ch 100V 1.1A SOT-223-3 RoHS: Compliant | 52943 |
|
$0.2000 / $0.3500 | Buy Now |
|
DISTI #
E02:0323_07033626
|
Arrow Electronics | Trans MOSFET N-CH 100V 1.2A Automotive AEC-Q101 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks Date Code: 2514 | Europe - 22000 |
|
$0.1661 / $0.1853 | Buy Now |
|
DISTI #
V72:2272_06391766
|
Arrow Electronics | Trans MOSFET N-CH 100V 1.2A Automotive AEC-Q101 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2403 Container: Cut Strips | Americas - 485 |
|
$0.1712 / $0.2562 | Buy Now |
|
|
Future Electronics | Single N-Channel 100 V 600 mOhm 4.5 nC OptiMOS™ Power Mosfet - SOT-223 RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks Container: Reel | 1000Reel |
|
$0.1700 / $0.1810 | Buy Now |
|
|
Future Electronics | Single N-Channel 100 V 600 mOhm 4.5 nC OptiMOS™ Power Mosfet - SOT-223 RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks Container: Reel | 0Reel |
|
$0.1700 / $0.1810 | Buy Now |
|
DISTI #
88210921
|
Verical | Trans MOSFET N-CH 100V 1.2A Automotive AEC-Q101 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2514 | Americas - 22000 |
|
$0.1636 / $0.1824 | Buy Now |
Part Details for BSP296NH6327XTSA1
BSP296NH6327XTSA1 CAD Models
BSP296NH6327XTSA1 Part Data Attributes
|
|
BSP296NH6327XTSA1
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
BSP296NH6327XTSA1
Infineon Technologies AG
Power Field-Effect Transistor, 1.2A I(D), 100V, 0.6ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC PACKAGE-4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | GREEN, PLASTIC PACKAGE-4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | AVALANCHE RATED, LOGIC LEVEL COMPATIBLE | |
| Avalanche Energy Rating (Eas) | 15 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 100 V | |
| Drain Current-Max (ID) | 1.2 A | |
| Drain-source On Resistance-Max | 0.6 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity/Channel Type | N-CHANNEL | |
| Pulsed Drain Current-Max (IDM) | 4.6 A | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Transistor Element Material | SILICON |
Alternate Parts for BSP296NH6327XTSA1
This table gives cross-reference parts and alternative options found for BSP296NH6327XTSA1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BSP296NH6327XTSA1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BSP296NH6433XTMA1 | Infineon Technologies AG | $0.4691 | Power Field-Effect Transistor, 1.2A I(D), 100V, 0.6ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC PACKAGE-4 | BSP296NH6327XTSA1 vs BSP296NH6433XTMA1 |
BSP296NH6327XTSA1 Frequently Asked Questions (FAQ)
-
Infineon provides a recommended PCB layout in the application note AN2013-01, which includes guidelines for thermal vias, copper thickness, and heat sink design.
-
The datasheet provides a recommended biasing scheme, but it's essential to follow the application note AN2013-01 for detailed information on biasing and stabilization networks.
-
Monitor the junction temperature (Tj), case temperature (Tc), and thermal resistance (Rth) to prevent overheating. Use the thermal resistance values provided in the datasheet to estimate the junction temperature.
-
Yes, the BSP296NH6327XTSA1 is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions and guidelines for these applications.
-
Follow standard ESD handling procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. The device has built-in ESD protection, but handling precautions are still necessary.
