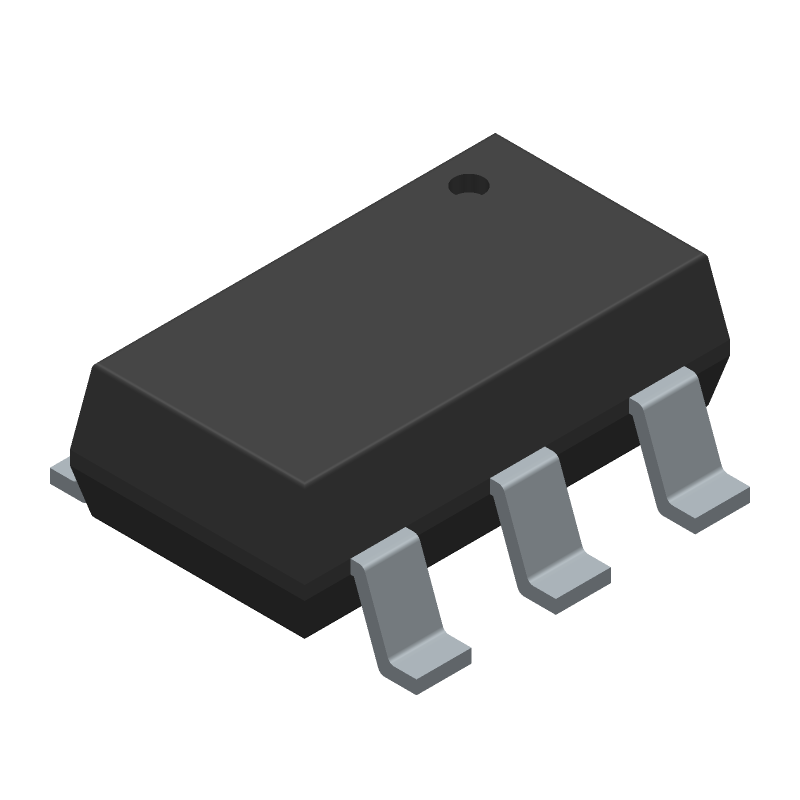

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BSL308PEH6327XTSA1 by Infineon Technologies AG
Results Overview of BSL308PEH6327XTSA1 by Infineon Technologies AG
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
BSL308PEH6327XTSA1 Information
BSL308PEH6327XTSA1 by Infineon Technologies AG is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BSL308PEH6327XTSA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
13AC8345
|
Newark | Mosfet, P-Ch, 30V, 2A, 150Deg C, 0.5W, Channel Type:P Channel, Drain Source Voltage Vds N Channel:30V, Drain Source Voltage Vds P Channel:30V, Continuous Drain Current Id N Channel:2A, Continuous Drain Current Id P Channel:2A Rohs Compliant: Yes |Infineon BSL308PEH6327XTSA1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 4627 |
|
$0.1820 | Buy Now |
|
DISTI #
BSL308PEH6327XTSA1CT-ND
|
DigiKey | MOSFET 2P-CH 30V 2A TSOP6-6 Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
10633 In Stock |
|
$0.1834 / $0.6500 | Buy Now |
|
DISTI #
BSL308PEH6327XTSA1
|
Avnet Americas | Dual MOSFET, P Channel, 30 V, 30 V, 2 A, 2 A, 0.062 ohm - Tape and Reel (Alt: BSL308PEH6327XTSA1) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days Container: Reel | 3000 |
|
$0.1321 / $0.1390 | Buy Now |
|
DISTI #
13AC8345
|
Avnet Americas | Dual MOSFET, P Channel, 30 V, 30 V, 2 A, 2 A, 0.062 ohm - Product that comes on tape, but is not reeled (Alt: 13AC8345) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 5 Days Container: Ammo Pack | 4627 Partner Stock |
|
$0.3150 / $0.5820 | Buy Now |
|
DISTI #
726-BSL308PEH6327XTS
|
Mouser Electronics | MOSFETs SMALL SIGNAL+P-CH RoHS: Compliant | 11654 |
|
$0.1940 / $0.6000 | Buy Now |
|
DISTI #
E02:0323_07813355
|
Arrow Electronics | Trans MOSFET P-CH 30V 2A Automotive AEC-Q101 6-Pin TSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks Date Code: 2510 | Europe - 15000 |
|
$0.1482 / $0.1841 | Buy Now |
|
DISTI #
V72:2272_06391975
|
Arrow Electronics | Trans MOSFET P-CH 30V 2A Automotive AEC-Q101 6-Pin TSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2325 Container: Cut Strips | Americas - 1080 |
|
$0.1539 / $0.2883 | Buy Now |
|
|
Future Electronics | BSL308PE Series 30 V 2 A 80 mOhm 0.5 W 5 nC Dual P-Channel MOSFET - TSOP-6 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks Container: Reel | 6000Reel |
|
$0.1460 / $0.1520 | Buy Now |
|
|
Future Electronics | BSL308PE Series 30 V 2 A 80 mOhm 0.5 W 5 nC Dual P-Channel MOSFET - TSOP-6 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks Container: Reel | 0Reel |
|
$0.1460 / $0.1520 | Buy Now |
|
DISTI #
88054823
|
Verical | Trans MOSFET P-CH 30V 2A Automotive AEC-Q101 6-Pin TSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2510 | Americas - 15000 |
|
$0.1490 / $0.1851 | Buy Now |
Part Details for BSL308PEH6327XTSA1
BSL308PEH6327XTSA1 CAD Models
BSL308PEH6327XTSA1 Part Data Attributes
|
|
BSL308PEH6327XTSA1
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
BSL308PEH6327XTSA1
Infineon Technologies AG
Small Signal Field-Effect Transistor, 2A I(D), 30V, 2-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TSOP-6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | TSOP-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 16 Weeks, 5 Days | |
| Samacsys Manufacturer | Infineon | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 2 A | |
| Drain-source On Resistance-Max | 0.08 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 18 pF | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity/Channel Type | P-CHANNEL | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Transistor Element Material | SILICON |
