Part Details for BR24G04F-3GTE2 by ROHM Semiconductor
Results Overview of BR24G04F-3GTE2 by ROHM Semiconductor
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Computing and Data Storage
BR24G04F-3GTE2 Information
BR24G04F-3GTE2 by ROHM Semiconductor is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for BR24G04F-3GTE2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BR24G04F-3GTE2CT-ND
|
DigiKey | IC EEPROM 4KBIT I2C 400KHZ 8SOP Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2203 In Stock |
|
$0.1441 / $0.2000 | Buy Now |
|
DISTI #
755-BR24G04F-3GTE2
|
Mouser Electronics | EEPROM I2C BUS(2-Wre) 4K SOP8 EEPROM RoHS: Compliant | 2110 |
|
$0.1480 / $0.2000 | Buy Now |
|
DISTI #
73552461
|
Verical | EEPROM Serial-2Wire 4K-bit 512 x 8 1.8V/2.5V/3.3V/5V 8-Pin SOP T/R RoHS: Compliant Min Qty: 363 Package Multiple: 1 Date Code: 2301 | Americas - 2400 |
|
$0.2017 / $0.2163 | Buy Now |
|
DISTI #
61212015
|
Verical | EEPROM Serial-2Wire 4K-bit 512 x 8 1.8V/2.5V/3.3V/5V 8-Pin SOP T/R RoHS: Compliant Min Qty: 363 Package Multiple: 1 Date Code: 2201 | Americas - 381 |
|
$0.2163 | Buy Now |
|
|
Quest Components | 2224 |
|
$0.2480 / $0.6200 | Buy Now | |
|
DISTI #
BR24G04F-3GTE2
|
Avnet Silica | EEPROM SerialI2C 4Kbit 512 x 8 25V3V 8Pin SOP Embossed TR (Alt: BR24G04F-3GTE2) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
LCSC | 4Kbit I2C SOIC-8-175mil EEPROM ROHS | 17 |
|
$0.2173 / $0.4134 | Buy Now |
Part Details for BR24G04F-3GTE2

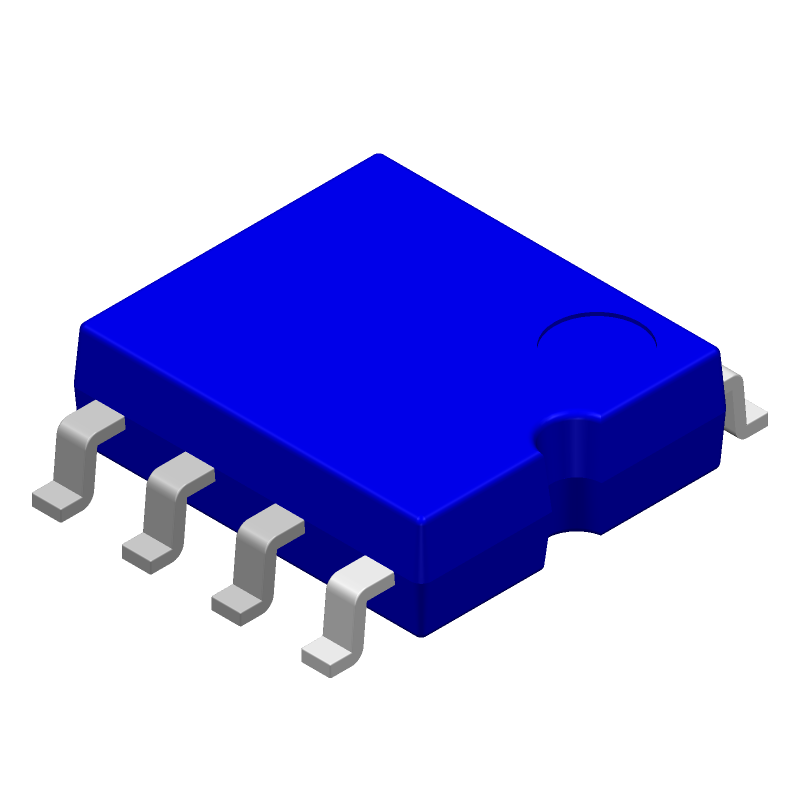

BR24G04F-3GTE2 CAD Models
BR24G04F-3GTE2 Part Data Attributes
|
|
BR24G04F-3GTE2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BR24G04F-3GTE2
ROHM Semiconductor
EEPROM,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | SOP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Clock Frequency-Max (fCLK) | 0.4 MHz | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 5 mm | |
| Memory Density | 4096 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 512 words | |
| Number of Words Code | 512 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 512X8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 1.71 mm | |
| Serial Bus Type | I2C | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.6 V | |
| Supply Voltage-Nom (Vsup) | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 4.4 mm | |
| Write Cycle Time-Max (tWC) | 5 ms |
