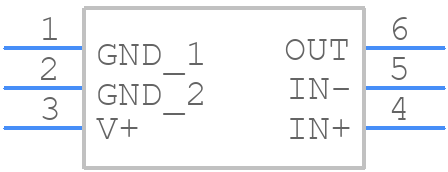

Part Symbol
-
Footprint
-

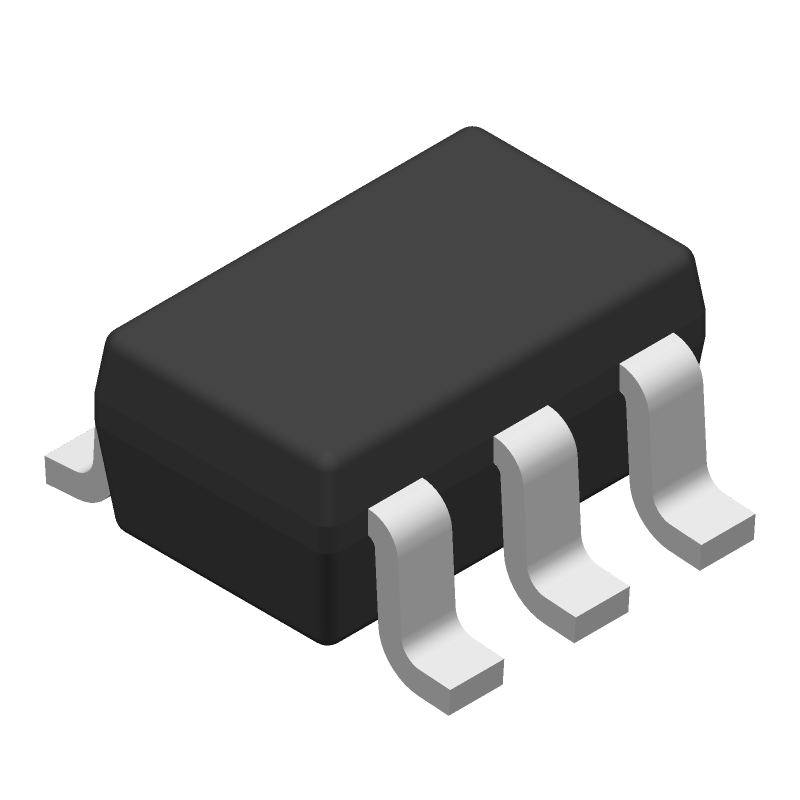

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BQ500100DCKR by Texas Instruments
Results Overview of BQ500100DCKR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
BQ500100DCKR Information
BQ500100DCKR by Texas Instruments is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for BQ500100DCKR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-BQ500100DCKR-ND
|
DigiKey | IC CURRENT MONITOR 2% SC70-6 Min Qty: 1 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT |
12000 In Stock |
|
$0.4800 | Buy Now |
|
DISTI #
296-BQ500100DCKRCT-ND
|
DigiKey | IC CURRENT MONITOR 2% SC70-6 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3763 In Stock |
|
$0.4199 / $0.9500 | Buy Now |
|
DISTI #
595-BQ500100DCKR
|
Mouser Electronics | Current & Power Monitors & Regulators Wireless Charging Cu rrent Monitor 6-SC70 A 595-BQ500100DCKT RoHS: Compliant | 2502 |
|
$0.4080 / $0.8400 | Buy Now |
|
DISTI #
85967842
|
Verical | Single Mode Wireless Power Transmitter 6-Pin SC-70 RoHS: Compliant Min Qty: 716 Package Multiple: 1 Date Code: 1601 | Americas - 12000 |
|
$0.3610 / $0.5240 | Buy Now |
|
|
Rochester Electronics | BQ500100 Wireless Charging Current Monitor RoHS: Compliant Status: Active Min Qty: 1 | 12000 |
|
$0.2888 / $0.4658 | Buy Now |
Part Details for BQ500100DCKR
BQ500100DCKR CAD Models
BQ500100DCKR Part Data Attributes
|
|
BQ500100DCKR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
BQ500100DCKR
Texas Instruments
Wireless Charging Current Monitor 6-SC70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SC-70, 6 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Date Of Intro | 2016-01-16 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
BQ500100DCKR Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and wide, and use thermal vias to dissipate heat.
-
Use a reliable communication protocol like I2C or SPI, and ensure proper signal termination and noise filtering. Also, consider using a buffer or repeater for long communication lines.
-
The device has a high power dissipation, so ensure good thermal conductivity by using a heat sink, thermal interface material, and a well-designed PCB with thermal vias. Keep the ambient temperature below 85°C.
-
Use the built-in overcurrent protection (OCP) and short-circuit protection (SCP) features. Implement a fault detection mechanism using the FAULT pin and respond to faults by shutting down the device or taking corrective action.
-
Use a shielded enclosure, ensure good PCB layout and grounding, and add EMI filters or common-mode chokes to reduce emissions. Follow the guidelines in the TI application note 'EMI and EMC Considerations for the BQ500100DCKR'.
