RF and Microwave / RF/Microwave Amplifiers / BGU8053X
Datasheets
BGU8053X by: NXP Semiconductors

BGU8053 - Low noise high linearity amplifier SON 8-Pin

Part Details for BGU8053X by NXP Semiconductors

Results Overview of BGU8053X by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage Smart Cities Electronic Manufacturing

BGU8053X Information

BGU8053X by NXP Semiconductors is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.

RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.

Price & Stock for BGU8053X

Part # Distributor Description Stock Price Buy
DISTI # 2890381
Farnell RF AMPLIFIER, 6GHZ, HWSON-8 RoHS: Compliant Min Qty: 1 Lead time: 13 Weeks, 0 Days Container: Cut Tape 237
  • 1 $2.3877
  • 10 $2.0757
  • 50 $1.9536
  • 100 $1.7908
$1.7908 / $2.3877 Buy Now
DISTI # 2890381RL
Farnell RF AMPLIFIER, 6GHZ, HWSON-8 RoHS: Compliant Min Qty: 100 Lead time: 13 Weeks, 0 Days Container: Reel 237
  • 100 $1.7908
$1.7908 Buy Now
DISTI # 568-14203-1-ND
DigiKey IC RF AMP GSM 2GHZ-4GHZ 8HWSON Min Qty: 1 Lead time: 99 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 3570
In Stock
  • 1 $2.1500
  • 10 $1.8560
  • 25 $1.7520
  • 100 $1.6096
  • 250 $1.5241
  • 500 $1.4637
  • 1,000 $1.4067
  • 2,000 $1.3530
  • 4,000 $1.3024
  • 6,000 $1.2742
$1.2742 / $2.1500 Buy Now
DISTI # BGU8053X
Avnet Americas Low Noise High Linearity Amplifier, 2 GHz to 6 GHz, 8 Pins, HWSON - Tape and Reel (Alt: BGU8053X) Min Qty: 2000 Package Multiple: 2000 Lead time: 111 Weeks, 0 Days Container: Reel 0
  • 2,000 $1.0898
  • 4,000 $1.0492
  • 8,000 $1.0085
  • 12,000 $0.9678
  • 16,000 $0.9272
$0.9272 / $1.0898 Buy Now
DISTI # 771-BGU8053X
Mouser Electronics RF Amplifier Low noise high linearity amplifier RoHS: Compliant 3077
  • 1 $2.1500
  • 10 $1.8600
  • 25 $1.7600
  • 100 $1.6100
  • 250 $1.5300
  • 500 $1.4400
  • 1,000 $1.2800
  • 2,000 $1.1400
$1.1400 / $2.1500 Buy Now
DISTI # 85965112
Verical RF Amp Single LNA 4GHz 5.25V 8-Pin HWSON EP T/R RoHS: Compliant Min Qty: 218 Package Multiple: 1 Date Code: 2201 Americas - 6000
  • 218 $1.7250
  • 500 $1.5500
  • 1,000 $1.4375
  • 10,000 $1.2750
  • 100,000 $1.0701
$1.0701 / $1.7250 Buy Now
Rochester Electronics Low noise high linearity amplifier RoHS: Compliant Status: Active Min Qty: 1 6000
  • 100 $1.3800
  • 500 $1.2400
  • 1,000 $1.1500
  • 10,000 $1.0200
  • 100,000 $0.8561
$0.8561 / $1.3800 Buy Now
DISTI # BGU8053X-CT
Richardson RFPD RF & MW LNA RoHS: Compliant Min Qty: 2000 0
  • 2,000 $1.2200
$1.2200 Buy Now
DISTI # BGU8053X
Richardson RFPD RF & MW LNA RoHS: Compliant Min Qty: 2000 0
  • 2,000 $1.2200
$1.2200 Buy Now
DISTI # BGU8053X
Avnet Silica Low Noise High Linearity Amplifier 2 GHz to 6 GHz 8 Pins HWSON (Alt: BGU8053X) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 54 Weeks, 0 Days Silica - 0
Buy Now
DISTI # BGU8053X
EBV Elektronik Low Noise High Linearity Amplifier 2 GHz to 6 GHz 8 Pins HWSON (Alt: BGU8053X) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 54 Weeks, 0 Days EBV - 0
Buy Now
Flip Electronics Stock 424000
RFQ

Part Details for BGU8053X

BGU8053X CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

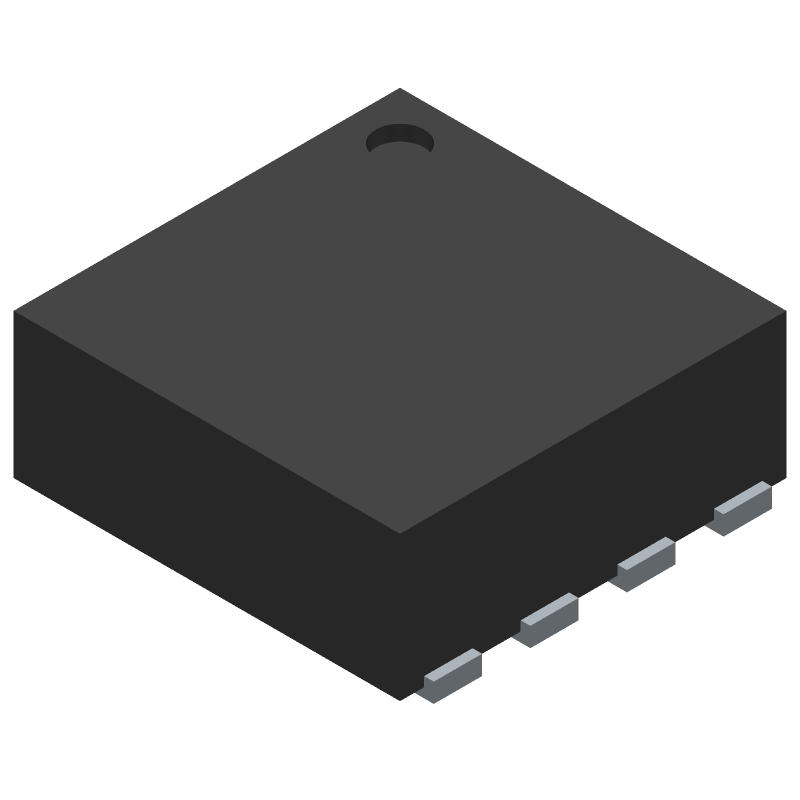

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BGU8053X Part Data Attributes

Parametric Data
BGU8053X NXP Semiconductors
Buy Now Datasheet
Compare Parts:
BGU8053X NXP Semiconductors BGU8053 - Low noise high linearity amplifier SON 8-Pin
Rohs Code Yes
Part Life Cycle Code End Of Life
Ihs Manufacturer NXP SEMICONDUCTORS
Part Package Code SON
Package Description MO-229, SOT-1327-1, 6 PIN
Pin Count 8
Manufacturer Package Code SOT1327-1
Reach Compliance Code compliant
HTS Code 8542.33.00.01
Factory Lead Time 111 Weeks
Samacsys Manufacturer NXP
Characteristic Impedance 50 Ω
Construction COMPONENT
Input Power-Max (CW) 20 dBm
Mounting Feature SURFACE MOUNT
Number of Functions 1
Number of Terminals 8
Operating Frequency-Max 6000 MHz
Operating Frequency-Min 2000 MHz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Equivalence Code SOLCC8,.08SQ,20
Power Supplies 5 V
RF/Microwave Device Type WIDE BAND LOW POWER
Screening Level IEC-60134
Supply Current-Max 85 mA
Surface Mount YES
VSWR-Max 1.08

BGU8053X Frequently Asked Questions (FAQ)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance matching to minimize signal reflections.

  • Ensure the VCC pin is connected to a stable 3.3V power supply, and the VEN pin is tied to a logic high (3.3V) to enable the device. Also, ensure the input voltage to the VCC pin is filtered to minimize noise.

  • The recommended input power level is between -20 dBm and 0 dBm. Exceeding this range may result in reduced performance or damage to the device.

  • Use the external matching components (L1, L2, C1, and C2) to optimize the device for specific frequency bands. Refer to the application note AN11555 for more information on impedance matching.

  • The maximum operating temperature for the BGU8053X is 85°C. Exceeding this temperature may result in reduced performance or device failure.
