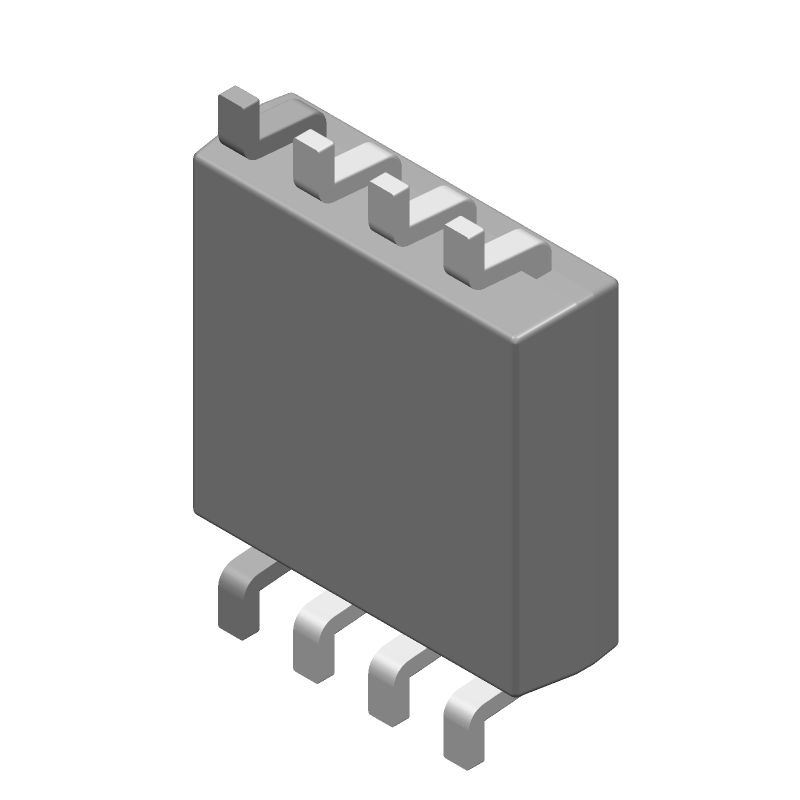

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BD9555FVM-CGTR by ROHM Semiconductor
Results Overview of BD9555FVM-CGTR by ROHM Semiconductor
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
BD9555FVM-CGTR Information
BD9555FVM-CGTR by ROHM Semiconductor is a Timer or RTC.
Timers or RTCs are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for BD9555FVM-CGTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
94AC7443
|
Newark | Timer Ic, 42V, 10Khz, Msop-8, Frequency:10Khz, Supply Voltage Min:4.5V, Supply Voltage Max:42V, Digital Ic Case:Msop, No. Of Pins:8Pins, Operating Temperature Min:-40°C, Operating Temperature Max:125°C, Product Range:- Rohs Compliant: Yes |Rohm BD9555FVM-CGTR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2720 |
|
$0.7820 / $1.5200 | Buy Now |
|
DISTI #
755-BD9555FVM-CGTR
|
Mouser Electronics | Timers & Support Products 50V 1Ch Timer IC 4.5-42V, MSOP8 RoHS: Compliant | 3154 |
|
$0.7270 / $1.5200 | Buy Now |
|
DISTI #
36535083
|
Verical | Standard Timer Single -40°C 125°C Automotive 8-Pin MSOP T/R RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 1901 | Americas - 2415 |
|
$1.0878 | Buy Now |
|
|
Quest Components | 1932 |
|
$0.6855 / $2.2850 | Buy Now | |
|
|
Quest Components | 2 |
|
$1.2950 | Buy Now | |
|
DISTI #
BD9555FVM-CGTR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1679 |
|
$0.5390 / $1.3000 | Buy Now |
Part Details for BD9555FVM-CGTR
BD9555FVM-CGTR CAD Models
BD9555FVM-CGTR Part Data Attributes
|
|
BD9555FVM-CGTR
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BD9555FVM-CGTR
ROHM Semiconductor
Programmable Timer, 1 Timer(s), CMOS, PDSO8, 2.90 X 4 MM, 0.90 MM HIGHT, ROHS COMPLIANT, MSOP-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Analog IC - Other Type | TIMER | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Alternate Parts for BD9555FVM-CGTR
This table gives cross-reference parts and alternative options found for BD9555FVM-CGTR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BD9555FVM-CGTR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX16998AAUA+ | Maxim Integrated Products | Check for Price | Programmable Timer, 1 Timer(s), BICMOS, PDSO8, 3 X 3 MM, ROHS COMPLIANT, MO-187-AA, MICRO MAX PACKAGE-8 | BD9555FVM-CGTR vs MAX16998AAUA+ |
| MAX16998DAUA/V+ | Maxim Integrated Products | Check for Price | Programmable Timer, 1 Timer(s), BICMOS, PDSO8, 3 X 3 MM, ROHS COMPLIANT, MO-187-AA, MICRO MAX PACKAGE-8 | BD9555FVM-CGTR vs MAX16998DAUA/V+ |
