BD6982FVM-GTR Information
BD6982FVM-GTR by ROHM Semiconductor is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for BD6982FVM-GTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01AH6682
|
Newark | Motor Driver, -40 To 105Deg C, Motor Type:Dc Brushless, No. Of Outputs:1Outputs, Output Current:800Ma, Output Voltage:16V, Driver Case Style:Msop, No. Of Pins:8Pins, Supply Voltage Min:2.8V, Supply Voltage Max:16V, Operating Rohs Compliant: Yes |Rohm BD6982FVM-GTR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.3890 / $1.1800 | Buy Now |
|
DISTI #
BD6982FVM-GTRCT-ND
|
DigiKey | IC MOTOR DRIVER 2.8V-16V 8MSOP Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.3493 / $0.8000 | Buy Now |
|
DISTI #
755-BD6982FVM-GTR
|
Mouser Electronics | Motor / Motion / Ignition Controllers & Drivers WL-CSP EEPROM RoHS: Compliant | 2898 |
|
$0.3270 / $0.8000 | Buy Now |
|
DISTI #
86988367
|
Verical | Motor Driver 8-Pin MSOP T/R RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 1501 | Americas - 50 |
|
$1.4497 | Buy Now |
|
|
LCSC | MSOP-8 Brushless DC (BLDC) Motor Driver ROHS | 2980 |
|
$0.2942 / $0.4029 | Buy Now |
Part Details for BD6982FVM-GTR

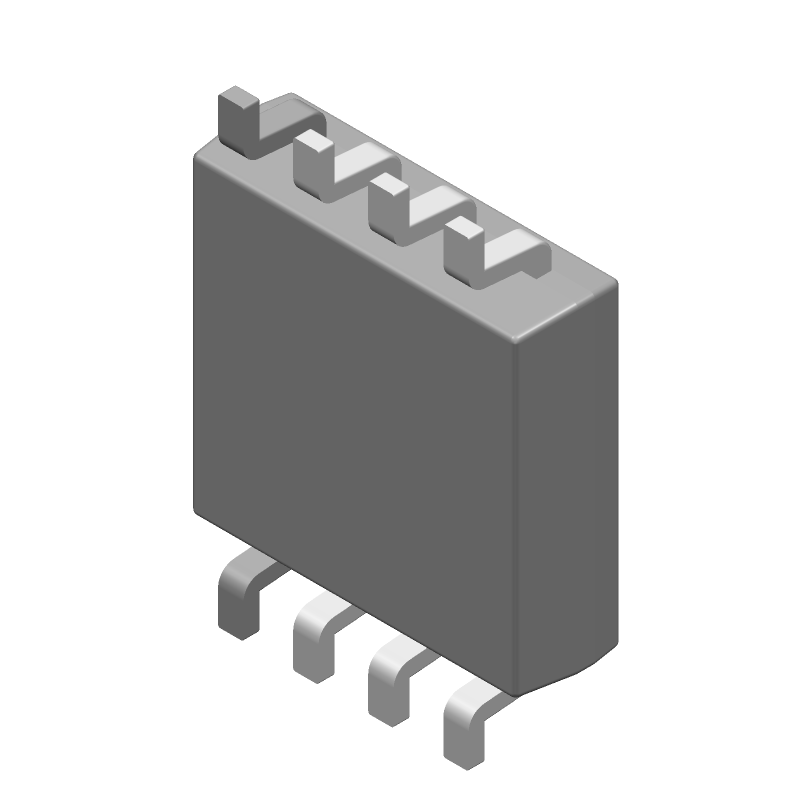

BD6982FVM-GTR CAD Models
BD6982FVM-GTR Part Data Attributes
|
|
BD6982FVM-GTR
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BD6982FVM-GTR
ROHM Semiconductor
Brushless DC Motor Controller, 0.8A, PDSO8, 2.90 X 4 MM, 0.90 MM HEIGHT, HALOGEN FREE, MSOP-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Analog IC - Other Type | 1-PHASE BRUSHLESS DC MOTOR CONTROLLER | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 2.9 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSSOP8,.16 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 0.9 mm | |
| Supply Voltage-Max (Vsup) | 16 V | |
| Supply Voltage-Min (Vsup) | 2.8 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 2.8 mm |
