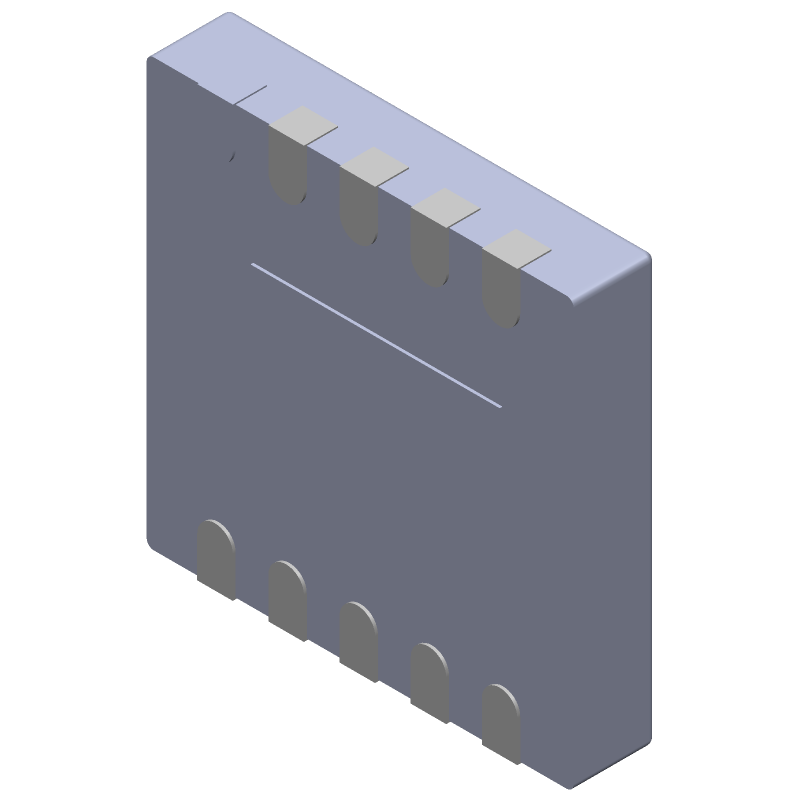

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BD67173NUX-E2 by ROHM Semiconductor
Results Overview of BD67173NUX-E2 by ROHM Semiconductor
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
BD67173NUX-E2 Information
BD67173NUX-E2 by ROHM Semiconductor is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for BD67173NUX-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01AH6669
|
Newark | Motor Driver, -25 To 95Deg C, Motor Type:Three Phase Dc Brushless, No. Of Outputs:1Outputs, Output Current:700Ma, Output Voltage:5.5V, Driver Case Style:Vson-X, No. Of Pins:10Pins, Supply Voltage Min:2.2V, Supply Voltage Max:5.5V, Rohs Compliant: Yes |Rohm BD67173NUX-E2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 875 |
|
$0.5660 / $1.2500 | Buy Now |
|
DISTI #
BD67173NUX-E2CT-ND
|
DigiKey | IC MOTOR DRIVER 2.2V-5.5V 10VSON Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.4962 / $1.1000 | Buy Now |
|
DISTI #
755-BD67173NUX-E2
|
Mouser Electronics | Motor / Motion / Ignition Controllers & Drivers 3 Phase Full-Wave Fan Mtr Drv w/PWM RoHS: Compliant | 5022 |
|
$0.5070 / $1.3200 | Buy Now |
|
DISTI #
66312862
|
Verical | Motor Driver 5V 10-Pin VSON-X EP T/R RoHS: Compliant Min Qty: 108 Package Multiple: 1 Date Code: 2301 | Americas - 4000 |
|
$0.6567 / $0.7561 | Buy Now |
|
DISTI #
59410245
|
Verical | Motor Driver 5V 10-Pin VSON-X EP T/R RoHS: Compliant Min Qty: 108 Package Multiple: 1 Date Code: 2101 | Americas - 4000 |
|
$0.6567 / $0.7561 | Buy Now |
|
DISTI #
60174415
|
Verical | Motor Driver 5V 10-Pin VSON-X EP T/R RoHS: Compliant Min Qty: 108 Package Multiple: 1 Date Code: 2101 | Americas - 2545 |
|
$0.6567 / $0.7561 | Buy Now |
|
|
Quest Components | 8436 |
|
$0.6240 / $2.0800 | Buy Now | |
|
DISTI #
BD67173NUX-E2
|
IBS Electronics | 3-PHASE BRUSHLESS DC MOTOR DRIVER 2.2V TO 5.5V 10-PIN VSON-X EMBOSS T/R Min Qty: 4000 Package Multiple: 1 | 0 |
|
$0.5330 / $0.5525 | Buy Now |
|
|
LCSC | VSON-10-EP(3x3) Brushless DC (BLDC) Motor Driver ROHS | 6106 |
|
$0.2958 / $0.4059 | Buy Now |
Part Details for BD67173NUX-E2
BD67173NUX-E2 CAD Models
BD67173NUX-E2 Part Data Attributes
|
|
BD67173NUX-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BD67173NUX-E2
ROHM Semiconductor
Brushless DC Motor Controller, 0.7A, PDSO10, 3 X 3 MM, 0.60 MM HEIGHT, VSON-10
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | 3 X 3 MM, 0.60 MM HEIGHT, VSON-10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Analog IC - Other Type | BRUSHLESS DC MOTOR CONTROLLER | |
| JESD-30 Code | S-PDSO-N10 | |
| Length | 3 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 95 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Current-Max | 0.7 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 0.6 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | OTHER | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3 mm |
BD67173NUX-E2 Frequently Asked Questions (FAQ)
-
ROHM recommends a 2-layer or 4-layer PCB with a thermal relief pattern under the IC to ensure efficient heat dissipation. A minimum of 1 oz copper thickness is recommended for the PCB.
-
To ensure stable output voltage regulation, it is recommended to use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a minimum capacitance of 10uF. Additionally, a 1uF ceramic capacitor should be placed close to the VIN pin to filter out high-frequency noise.
-
Although the datasheet specifies a maximum input voltage of 18V, it is recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the internal circuitry.
-
While the BD67173NUX-E2 is rated for operation up to 105°C, it is recommended to derate the output current by 50% when operating above 85°C to ensure reliable operation and prevent overheating.
-
To troubleshoot output voltage instability or oscillation issues, check the PCB layout for any signs of noise coupling or electromagnetic interference (EMI). Ensure that the output capacitor is properly decoupled and that the input voltage is stable. Also, verify that the feedback resistors are properly selected and that the compensation network is correctly designed.
