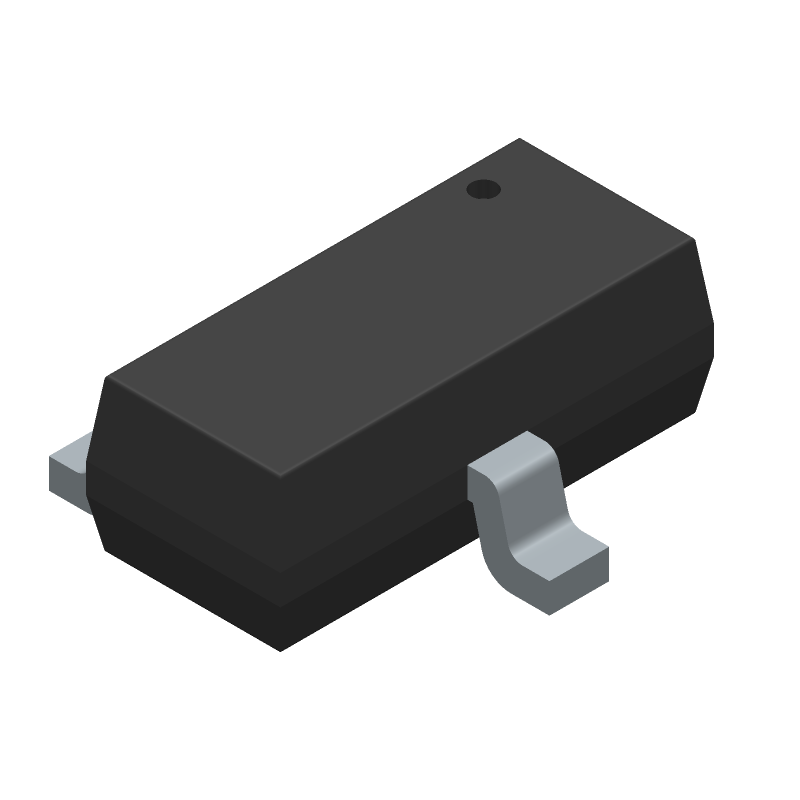

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BC857 by SPC Multicomp
Results Overview of BC857 by SPC Multicomp
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BC857 Information
BC857 by SPC Multicomp is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BC857
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67T1019
|
Newark | Trans, Pnp, -45V, -100Ma, 150Deg C, Transistor Polarity:Pnp, Collector Emitter Voltage Max:45V, Continuous Collector Current:100Ma, Power Dissipation:250Mw, Transistor Mounting:Surface Mount, No. Of Pins:3Pins, Product Range:- Rohs Compliant: Yes |Multicomp Pro BC857 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 10620 |
|
$0.0060 | Buy Now |
|
DISTI #
41526280
|
Verical | BC857 Min Qty: 8334 Package Multiple: 1 | Americas - 10620 |
|
$0.0081 / $0.0083 | Buy Now |
Part Details for BC857
BC857 CAD Models
BC857 Part Data Attributes
|
|
BC857
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
BC857
SPC Multicomp
Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Package Description | SOT-23, 3 PIN | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Multicomp Pro | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Base Capacitance-Max | 4.5 pF | |
| Collector-Emitter Voltage-Max | 45 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 125 | |
| JESD-30 Code | R-PDSO-G3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity/Channel Type | PNP | |
| Power Dissipation Ambient-Max | 0.25 W | |
| Power Dissipation-Max (Abs) | 0.25 W | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 100 MHz | |
| VCEsat-Max | 0.65 V |
BC857 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BC857 is -55°C to 150°C.
-
Yes, the BC857 is suitable for high-frequency applications up to 100 MHz due to its high transition frequency (fT) of 150 MHz.
-
The maximum collector current rating for the BC857 is 100 mA.
-
Yes, the BC857 can be used in switching applications due to its low saturation voltage (Vce(sat)) of 0.2 V and high current gain (hFE) of 100-400.
-
Yes, the BC857 is a low-noise transistor with a noise figure of 2 dB, making it suitable for audio and other low-noise applications.
