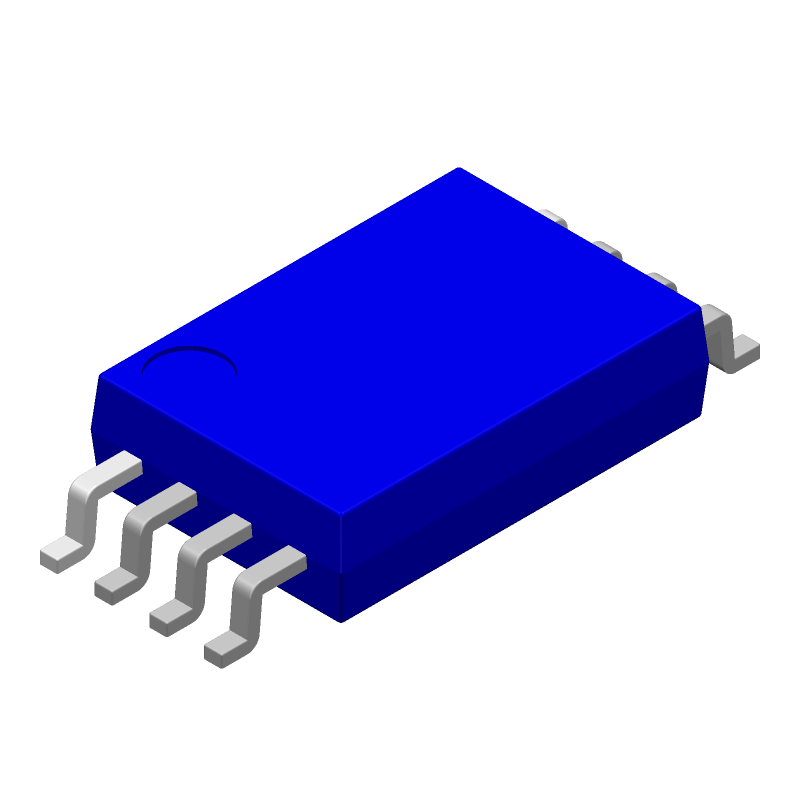

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BA2904YFV-CE2 by ROHM Semiconductor
Results Overview of BA2904YFV-CE2 by ROHM Semiconductor
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
BA2904YFV-CE2 Information
BA2904YFV-CE2 by ROHM Semiconductor is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for BA2904YFV-CE2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78Y6305
|
Newark | Op Amp, Aec-Q100, Dual, 500Khz, Ssop-8, No. Of Channels:2Channels, Gain Bandwidth Product:500Khz, Supply Voltage Range:3V To 36V, ± 1.5V To ± 18V, Ic Case/Package:Ssop, No. Of Pins:8Pins, Amplifier Type:Ground Sense, Rail To Rail:-Rohs Compliant: Yes |Rohm BA2904YFV-CE2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 25 |
|
$0.1060 | Buy Now |
|
DISTI #
BA2904YFV-CE2CT-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8SSOPB Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2680 / $0.6400 | Buy Now |
|
DISTI #
78Y6305
|
Avnet Americas | Standard Ground Sense Operational Amplifier - Bulk (Alt: 78Y6305) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 21 Weeks, 4 Days Container: Bulk | 25 Partner Stock |
|
$0.3370 / $0.7900 | Buy Now |
|
DISTI #
755-BA2904YFV-CE2
|
Mouser Electronics | Operational Amplifiers - Op Amps Grd Snse 2Ch SSOP-B8 3-32V RoHS: Compliant | 25 |
|
$0.2610 / $0.7700 | Buy Now |
|
DISTI #
36529255
|
Verical | Op Amp Dual GP 32V Automotive 8-Pin SSOP-B T/R RoHS: Compliant Min Qty: 248 Package Multiple: 1 Date Code: 1801 | Americas - 1877 |
|
$0.3219 / $0.3459 | Buy Now |
|
|
Quest Components | 1501 |
|
$0.4020 / $1.0050 | Buy Now |
Part Details for BA2904YFV-CE2
BA2904YFV-CE2 CAD Models
BA2904YFV-CE2 Part Data Attributes
|
|
BA2904YFV-CE2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BA2904YFV-CE2
ROHM Semiconductor
Operational Amplifier, 1 Func, 7000uV Offset-Max, PDSO14, ROHS COMPLIANT, SSOP-14
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | SSOP | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 21 Weeks, 4 Days | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.1 µA | |
| Common-mode Reject Ratio-Nom | 80 dB | |
| Input Offset Voltage-Max | 7000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e2 | |
| Length | 5 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.25 mm | |
| Supply Voltage Limit-Max | 36 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin/Copper (Sn/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 4.4 mm |
