B82496C3101J Information

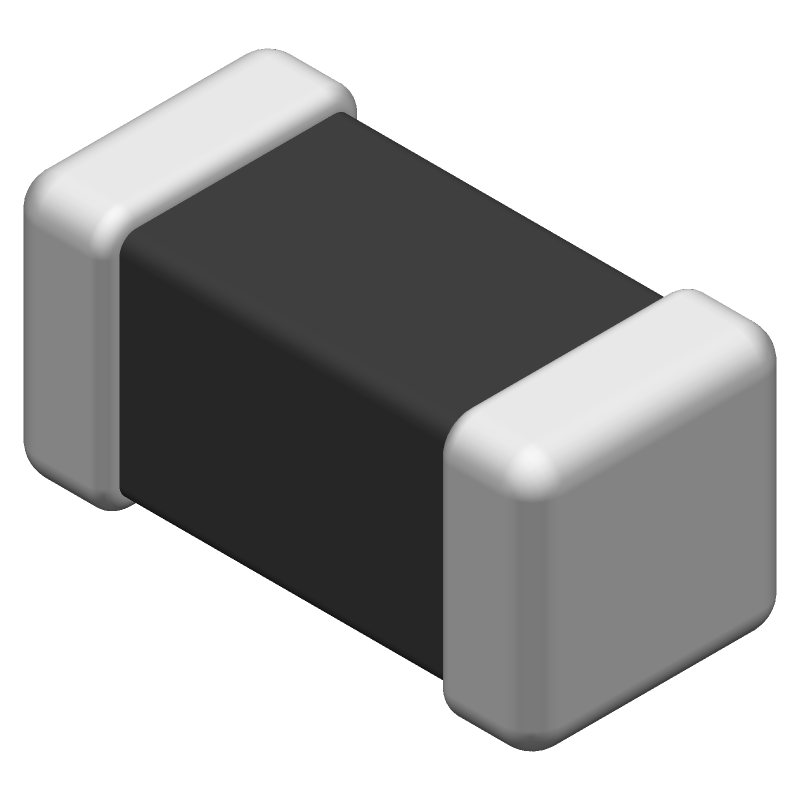

B82496C3101J by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for B82496C3101J
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
B82496C3101J000
|
Avnet Americas | Wirewound Inductor, 100 nH, 1.8 Ohm, ? 5%, 1.8 GHz, 200 mA, 0603 [1608 Metric] - Tape and Reel (Alt: B82496C3101J000) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.1108 | Buy Now |
|
DISTI #
871-B82496C3101J
|
Mouser Electronics | RF Inductors - SMD 100nH 200mA 5% 1.6x0.8mm SMD RoHS: Compliant | 39055 |
|
$0.1130 / $0.2600 | Buy Now |
|
DISTI #
B82496C3101J
|
TTI | RF Inductors - SMD 100nH 200mA 5% 1.6x0.8mm SMD pbFree: Pb-Free Min Qty: 8000 Package Multiple: 4000 Container: Reel | Americas - 0 |
|
$0.1120 | Buy Now |
|
DISTI #
B82496C3101J
|
TTI | RF Inductors - SMD 100nH 200mA 5% 1.6x0.8mm SMD pbFree: Pb-Free Min Qty: 8000 Package Multiple: 4000 Container: Reel | Americas - 0 |
|
$0.1120 | Buy Now |
|
DISTI #
B82496C3101J000
|
Avnet Abacus | Wirewound Inductor 100 nH 18 Ohm 5 18 GHz 200 mA 0603 1608 Metric (Alt: B82496C3101J000) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days | Abacus - 40000 |
|
Buy Now |
Part Details for B82496C3101J
B82496C3101J CAD Models
B82496C3101J Part Data Attributes
|
|
B82496C3101J
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
B82496C3101J
TDK Corporation
General Purpose Inductor, 0.1uH, 5%, 1 Element, Ceramic-Core, SMD,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | TDK | |
| Case/Size Code | 0603 | |
| Construction | Rectangular | |
| Core Material | CERAMIC | |
| DC Resistance | 1.8 Ω | |
| Inductance-Nom (L) | 0.1 µH | |
| Inductor Application | RF INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.8 mm | |
| Package Length | 1.6 mm | |
| Package Style | SMT | |
| Package Width | 0.8 mm | |
| Packing Method | TR, Cardboard, 7 Inch | |
| Quality Factor-Min (at L-nom) | 14 | |
| Rated Current-Max | 0.2 A | |
| Self Resonance Frequency | 1800 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | NO | |
| Surface Mount | YES | |
| Terminal Finish | TIN OVER NICKEL | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 100 MHz | |
| Tolerance | 5% |
