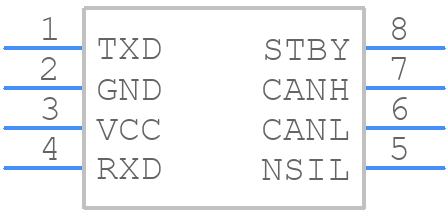

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ATA6560-GAQW-N by Microchip Technology Inc
Results Overview of ATA6560-GAQW-N by Microchip Technology Inc
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
ATA6560-GAQW-N Information
ATA6560-GAQW-N by Microchip Technology Inc is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for ATA6560-GAQW-N
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
93AC6956
|
Newark | Can Transceiver, 5Mbps, -40 To 150Deg C, Ic Interface Type:Can, No. Of Tx Buffers:-, No. Of Rx Buffers:-, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Interface Case Style:Soic, No. Of Pins:8Pins, Operating Temperature Rohs Compliant: Yes |Microchip ATA6560-GAQW-N RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3587 |
|
$0.3800 / $0.4800 | Buy Now |
|
DISTI #
58AC0410
|
Newark | Industrial Grade Can Trx With Nsil Pin (So8) 8 Soic 3.90Mm(.150In) T/R Rohs Compliant: Yes |Microchip ATA6560-GAQW-N RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3710 | Buy Now |
|
DISTI #
ATA6560-GAQW-NCT-ND
|
DigiKey | IC TRANSCEIVER 1/1 8SO Min Qty: 1 Lead time: 7 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
8608 In Stock |
|
$0.3600 / $0.4800 | Buy Now |
|
DISTI #
ATA6560-GAQW-N
|
Avnet Americas | CAN FD Transceiver, 1 TX, 1 RX, 4.5 V to 5.5 V, 8 Pins, NSOIC - Tape and Reel (Alt: ATA6560-GAQW-N) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 7 Weeks, 0 Days Container: Reel | 0 |
|
$0.3627 / $0.3875 | Buy Now |
|
DISTI #
579-ATA6560-GAQW-N
|
Mouser Electronics | CAN Interface IC Industrial Grade CAN TRX with NSIL PIN (SO8) RoHS: Compliant | 70031 |
|
$0.3600 / $0.4800 | Buy Now |
|
DISTI #
V72:2272_21703725
|
Arrow Electronics | CAN 5Mbps Normal/Silent/Standby 5V Automotive AEC-Q100 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2306 Container: Cut Strips | Americas - 7812 |
|
$0.3975 / $0.4516 | Buy Now |
|
DISTI #
ATA6560-GAQW-N
|
Microchip Technology Inc | Industrial Grade CAN TRX with NSIL PIN (SO8), SOIC, Projected EOL: 2044-06-05 COO: Philippines ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel |
0 Alternates Available |
|
$0.3200 / $0.4800 | Buy Now |
|
|
Onlinecomponents.com | CANBus Tranceiver 5Mbps - Normal/Silent/Standby - 5V - Automotive - 8-Pin SOIC - Tape&Reel RoHS: Compliant |
9000 In Stock 12000 Factory Stock |
|
$0.3442 / $0.3529 | Buy Now |
|
DISTI #
66414442
|
Verical | CAN 5Mbps Normal/Silent/Standby 5V Automotive AEC-Q100 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2303 | Americas - 9000 |
|
$0.4497 / $0.4588 | Buy Now |
|
DISTI #
66455457
|
Verical | CAN 5Mbps Normal/Silent/Standby 5V Automotive AEC-Q100 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 15 Package Multiple: 1 Date Code: 2306 | Americas - 7812 |
|
$0.3975 / $0.4448 | Buy Now |
Part Details for ATA6560-GAQW-N
ATA6560-GAQW-N CAD Models
ATA6560-GAQW-N Part Data Attributes
|
|
ATA6560-GAQW-N
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
ATA6560-GAQW-N
Microchip Technology Inc
Interface Circuit
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | SOIC-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Data Rate | 5000 Mbps | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Transceivers | 1 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 70 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Telecom IC Type | CAN FD TRANSCEIVER | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 3.9 mm |
ATA6560-GAQW-N Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the ATA6560-GAQW-N is -40°C to +125°C.
-
To configure the CAN transceiver for silent mode, set the STB pin to a logic high level. This will disable the transmitter and receiver, allowing the device to enter a low-power state.
-
For optimal performance, it is recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to keep the CAN bus traces as short and symmetrical as possible. Additionally, decoupling capacitors should be placed close to the device.
-
To troubleshoot CAN bus communication issues, check the CAN bus termination, ensure that the bit rate is set correctly, and verify that the transceiver is properly configured. Also, use a logic analyzer or oscilloscope to monitor the CAN bus signals.
-
Yes, the ATA6560-GAQW-N is compatible with ISO 11898-2 and SAE J2284, making it suitable for use in automotive and industrial applications.
