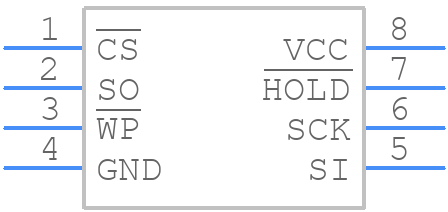

Part Symbol
-

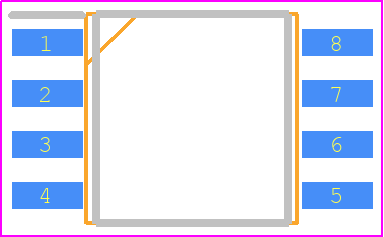

Footprint
-

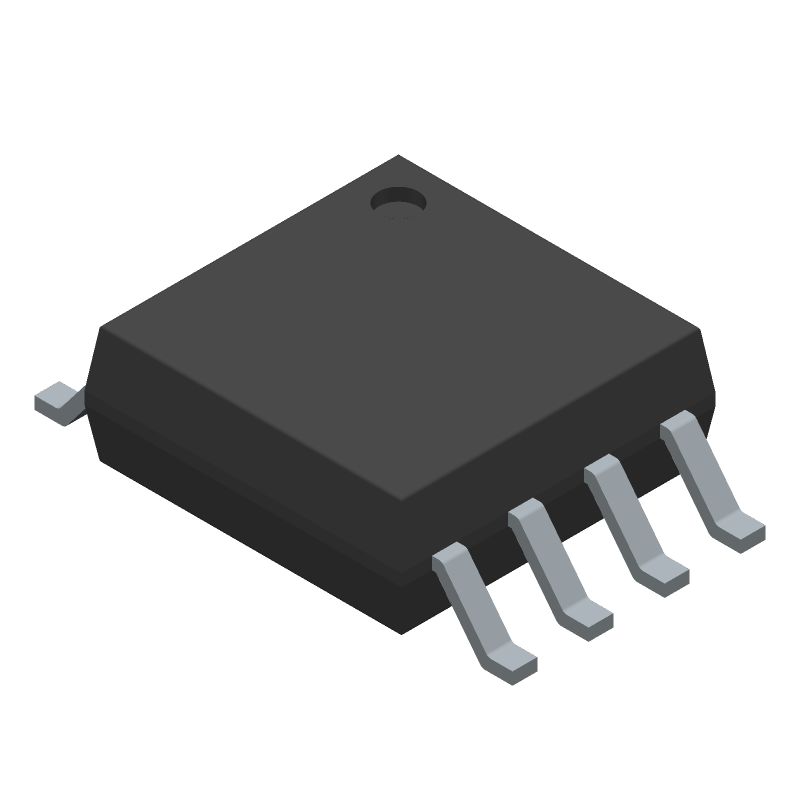

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AT25SF041-SHD-B by Adesto Technologies Corporation
Results Overview of AT25SF041-SHD-B by Adesto Technologies Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AT25SF041-SHD-B Information
AT25SF041-SHD-B by Adesto Technologies Corporation is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for AT25SF041-SHD-B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Win Source Electronics | NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3.3V 4M-bit 512K x 8 8ns 8-Pin SOIC EIAJ Tube / IC FLASH 4MBIT 104MHZ 8SOIC | 169494 |
|
$0.0367 / $0.0551 | Buy Now |
Part Details for AT25SF041-SHD-B
AT25SF041-SHD-B CAD Models
AT25SF041-SHD-B Part Data Attributes
|
|
AT25SF041-SHD-B
Adesto Technologies Corporation
Buy Now
Datasheet
|
Compare Parts:
AT25SF041-SHD-B
Adesto Technologies Corporation
EEPROM, 4MX1, Serial, CMOS, PDSO8, SOIC-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ADESTO TECHNOLOGIES CORP | |
| Package Description | SOIC-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Samacsys Manufacturer | Adesto Technologies | |
| Clock Frequency-Max (fCLK) | 85 MHz | |
| Data Retention Time-Min | 20 | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 5.29 mm | |
| Memory Density | 4194304 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 524288 words | |
| Number of Words Code | 512000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 512KX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Programming Voltage | 3 V | |
| Seated Height-Max | 2.16 mm | |
| Serial Bus Type | QSPI | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Type | NOR TYPE | |
| Width | 5.24 mm | |
| Write Protection | HARDWARE/SOFTWARE |
Alternate Parts for AT25SF041-SHD-B
This table gives cross-reference parts and alternative options found for AT25SF041-SHD-B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AT25SF041-SHD-B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AT25SF041-SHD-T | Renesas Electronics Corporation | Check for Price | 4Mbit, 2.5V to 3.6V Range SPI Serial Flash Memory with Dual-I/O and Quad-I/O Support, SOIC-W, 2000/Tape & Reel | AT25SF041-SHD-B vs AT25SF041-SHD-T |
AT25SF041-SHD-B Frequently Asked Questions (FAQ)
-
The AT25SF041-SHD-B has a minimum of 100,000 write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
-
The AT25SF041-SHD-B uses a page-based write architecture, where data is written in pages of 256 bytes. The device also supports block erase, where a block of 4KB can be erased at once.
-
The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied low, the device is in a write-protected state, and any attempts to write to the device will be ignored.
-
The AT25SF041-SHD-B has a built-in power-on reset circuit that ensures the device is in a known state after power-up. The device will reset its internal state and return to a standby mode after power-on.
-
The recommended operating voltage range for the AT25SF041-SHD-B is 2.7V to 3.6V. Operating the device outside of this range may affect its performance and reliability.
