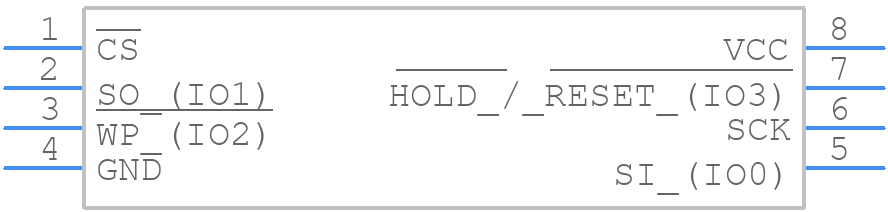

Part Symbol
-

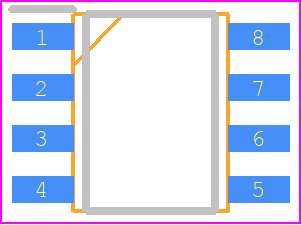

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AT25EU0011A-SSHN-B by Renesas Electronics Corporation
Results Overview of AT25EU0011A-SSHN-B by Renesas Electronics Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
AT25EU0011A-SSHN-B Information
AT25EU0011A-SSHN-B by Renesas Electronics Corporation is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for AT25EU0011A-SSHN-B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AK5940
|
Newark | Flash Memory, 1Mbit, -40 To 85Deg C Rohs Compliant: Yes |Renesas AT25EU0011A-SSHN-B RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 4601 |
|
$0.2230 / $0.3200 | Buy Now |
|
DISTI #
1695-AT25EU0011A-SSHN-B-ND
|
DigiKey | IC FLASH 1MBIT SPI/QUAD 8SOIC Min Qty: 1 Lead time: 18 Weeks Container: Tube |
3220 In Stock |
|
$0.2328 / $0.3300 | Buy Now |
|
DISTI #
AT25EU0011A-SSHN-B
|
Avnet Americas | NOR Flash 1Mbit 128K X 8 Serial-SPI 1.65V to 3.6V 8-Pin SOIC Bulk - Rail/Tube (Alt: AT25EU0011A-SSHN-B) RoHS: Compliant Min Qty: 8036 Package Multiple: 98 Lead time: 18 Weeks, 0 Days Container: Tube | 0 |
|
$0.2600 | Buy Now |
|
DISTI #
724-AT25EU0011ASSHNB
|
Mouser Electronics | NOR Flash 1 Mbit, Ultra Low Energy, Wide Vcc (1.65V to 3.6V), -40C to 85C, SOIC-N 150mil (Tube), Single, Dual, Quad SPI NOR flash RoHS: Compliant | 9638 |
|
$0.2220 / $0.3200 | Buy Now |
|
DISTI #
AT25EU0011A-SSHN-B
|
Avnet Silica | NOR Flash 1Mbit 128K X 8 SerialSPI 165V to 36V 8Pin SOIC Bulk (Alt: AT25EU0011A-SSHN-B) RoHS: Compliant Min Qty: 98 Package Multiple: 98 Lead time: 19 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for AT25EU0011A-SSHN-B
AT25EU0011A-SSHN-B CAD Models
AT25EU0011A-SSHN-B Part Data Attributes
|
|
AT25EU0011A-SSHN-B
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
AT25EU0011A-SSHN-B
Renesas Electronics Corporation
1 Mbit Ultra-low Energy Serial Flash Memory, SOIC-N, 98/Tube
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOIC-N | |
| Package Description | SOIC-8 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Clock Frequency-Max (fCLK) | 85 MHz | |
| Data Retention Time-Min | 20 | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 4.925 mm | |
| Memory Density | 1048576 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 131072 words | |
| Number of Words Code | 128000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 128KX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Programming Voltage | 1.8 V | |
| Seated Height-Max | 1.75 mm | |
| Serial Bus Type | SPI | |
| Standby Current-Max | 0.0000145 A | |
| Supply Current-Max | 0.003 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Type | NOR TYPE | |
| Width | 3.9 mm | |
| Write Protection | HARDWARE/SOFTWARE |
Alternate Parts for AT25EU0011A-SSHN-B
This table gives cross-reference parts and alternative options found for AT25EU0011A-SSHN-B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AT25EU0011A-SSHN-B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AT25EU0011A-SSHN-T | Renesas Electronics Corporation | $0.2757 | 1 Mbit Ultra-low Energy Serial Flash Memory, SOIC-N, 4000/Tape & Reel | AT25EU0011A-SSHN-B vs AT25EU0011A-SSHN-T |
