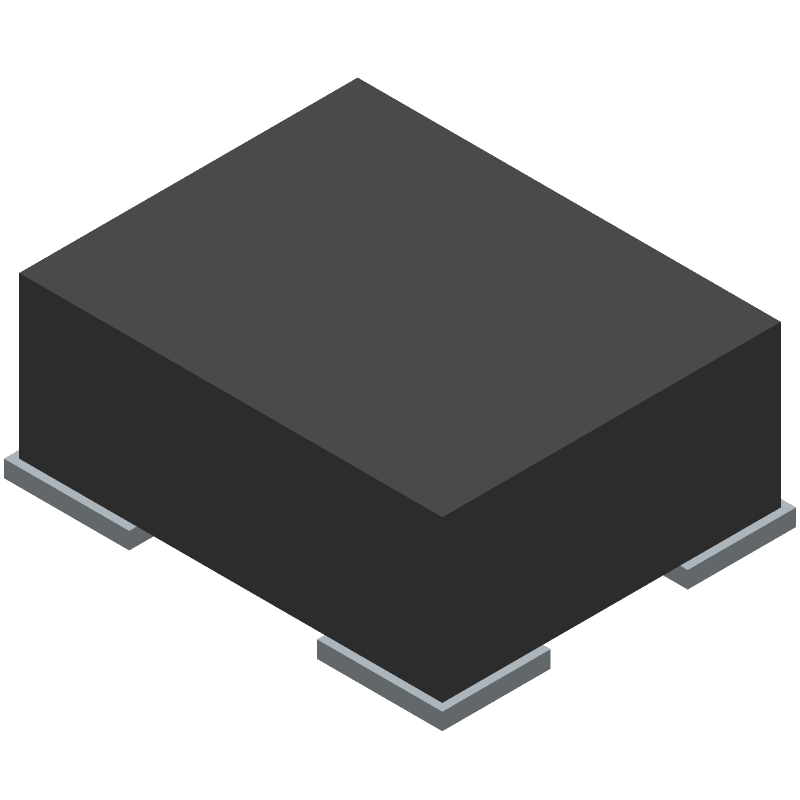

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ASTX-H12-10.000MHZ-I25-T by Abracon Corporation
Results Overview of ASTX-H12-10.000MHZ-I25-T by Abracon Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ASTX-H12-10.000MHZ-I25-T Information
ASTX-H12-10.000MHZ-I25-T by Abracon Corporation is a TCXO.
TCXO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for ASTX-H12-10.000MHZ-I25-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ASTX-H12-10.000MHZ-I25-T-ND
|
DigiKey | XTAL OSC TCXO 10.0000MHZ HCMOS Min Qty: 1000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$2.9299 | Buy Now |
|
DISTI #
815-ASTXH1210I25T
|
Mouser Electronics | TCXO Oscillators XTAL OSC TCXO 10.0000MHZ HCMOS RoHS: Compliant | 0 |
|
$2.9200 | Order Now |
Part Details for ASTX-H12-10.000MHZ-I25-T
ASTX-H12-10.000MHZ-I25-T CAD Models
ASTX-H12-10.000MHZ-I25-T Part Data Attributes
|
|
ASTX-H12-10.000MHZ-I25-T
Abracon Corporation
Buy Now
Datasheet
|
Compare Parts:
ASTX-H12-10.000MHZ-I25-T
Abracon Corporation
XTAL OSC TCXO 10.0000MHZ HCMOS
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ABRACON LLC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | ABRACON | |
| Additional Feature | STANDBY; TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7 INCH | |
| Aging | 1 PPM/FIRST YEAR | |
| Fall Time-Max | 5 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 2.5% | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Frequency-Nom | 10 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | HCMOS | |
| Output Load | 15 pF | |
| Physical Dimension | 2.5mm x 2.0mm x 0.9mm | |
| Rise Time-Max | 5 ns | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 2.97 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % |
Alternate Parts for ASTX-H12-10.000MHZ-I25-T
This table gives cross-reference parts and alternative options found for ASTX-H12-10.000MHZ-I25-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ASTX-H12-10.000MHZ-I25-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ASTX-H12-10.000MHZ-T | Abracon Corporation | $4.1018 | XTAL OSC TCXO 10.0000MHZ HCMOS | ASTX-H12-10.000MHZ-I25-T vs ASTX-H12-10.000MHZ-T |
| ASTX-H11-10.000MHZ-H25-T | Abracon Corporation | Check for Price | HCMOS Output Clock Oscillator, 10MHz Nom, ROHS COMPLIANT, SMD, 4 PIN | ASTX-H12-10.000MHZ-I25-T vs ASTX-H11-10.000MHZ-H25-T |
| EB52E8C6N-10.000MTR | Ecliptek Corporation | Check for Price | TCXO, CLOCK, 10MHz, HCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 10 PIN | ASTX-H12-10.000MHZ-I25-T vs EB52E8C6N-10.000MTR |
| EB52E8E6N-10.000M | Ecliptek Corporation | Check for Price | TCXO, CLOCK, 10MHz, HCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 10 PIN | ASTX-H12-10.000MHZ-I25-T vs EB52E8E6N-10.000M |
| EB52E8E6N-10.000MTR | Ecliptek Corporation | Check for Price | TCXO, CLOCK, 10MHz, HCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 10 PIN | ASTX-H12-10.000MHZ-I25-T vs EB52E8E6N-10.000MTR |
ASTX-H12-10.000MHZ-I25-T Frequently Asked Questions (FAQ)
-
Abracon recommends a symmetrical PCB layout with a ground plane underneath the oscillator to minimize noise and radiation. A minimum of 10 mils clearance around the device is recommended.
-
The output signal of the ASTX-H12-10.000MHZ-I25-T is a CMOS-compatible signal. It can be directly connected to a microcontroller or other digital circuitry. However, it's recommended to add a series resistor (e.g., 1 kΩ) to limit the output current and prevent damage to the oscillator or downstream components.
-
The ASTX-H12-10.000MHZ-I25-T is specified to operate from -40°C to +85°C. However, it's recommended to derate the frequency tolerance and stability over the full operating temperature range.
-
The ASTX-H12-10.000MHZ-I25-T is designed to meet the requirements of MIL-STD-883, Method 2002.1 for vibration and MIL-STD-883, Method 2003.1 for shock. However, it's recommended to consult with Abracon's application engineers to ensure the oscillator meets the specific requirements of your application.
-
To ensure proper startup, Abracon recommends applying a power supply with a rise time of less than 100 ms and a voltage slew rate of less than 1 V/ms. Additionally, it's recommended to add a power-on reset (POR) circuit to ensure the oscillator starts up in a known state.
