ASPI-4030S-4R3M-T Information
ASPI-4030S-4R3M-T by Abracon Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for ASPI-4030S-4R3M-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97W0471
|
Newark | Fixed Ind 4.3Uh 2.1A 55 Mohm Smd/Tape & Reel (Tr) Rohs Compliant: Yes |Abracon ASPI-4030S-4R3M-T RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1580 / $0.2040 | Buy Now |
|
DISTI #
ASPI-4030S-4R3M-T-ND
|
DigiKey | FIXED IND 4.3UH 2.1A 55 MOHM SMD Min Qty: 2000 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1653 | Buy Now |
|
DISTI #
ASPI-4030S-4R3M-T
|
Avnet Americas | Power Inductor (SMD), 4.3 uH, ? 20%, 2.1 A, Shielded, 2.95 A, 4mm x 4mm x 3mm - Tape and Reel (Alt: ASPI-4030S-4R3M-T) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.1404 / $0.1433 | Buy Now |
|
DISTI #
815-ASPI-4030S-4R3MT
|
Mouser Electronics | Power Inductors - SMD IND RoHS: Compliant | 0 |
|
$0.1560 / $0.3000 | Order Now |
|
|
Onlinecomponents.com | Magnetically Shielded Power Inductor - Wire Wound - SMD - 4.3uH ±20% - 2.95A - DCR: 0.055 ohm - SRF: 37MHz - Tape&Reel RoHS: Compliant | 0 |
|
$0.0985 / $0.1576 | Buy Now |
|
DISTI #
ASPI-4030S-4R3M-T
|
IBS Electronics | ASPI-4030S-4R3M-T by ABRACON LLC is a power inductor with 4.3µ, H inductance, 30% tolerance, 3.5A current rating, and 0.045Ω, DCR, ideal for power supply applications. Min Qty: 2000 Package Multiple: 1 | 0 |
|
$0.1807 / $0.1885 | Buy Now |
|
DISTI #
ASPI-4030S-4R3M-T
|
Avnet Abacus | Power Inductor SMD 43 uH 20 21 A Shielded 295 A 4mm x 4mm x 3mm - Tape and Reel (Alt: ASPI-4030S-4R3M-T) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for ASPI-4030S-4R3M-T

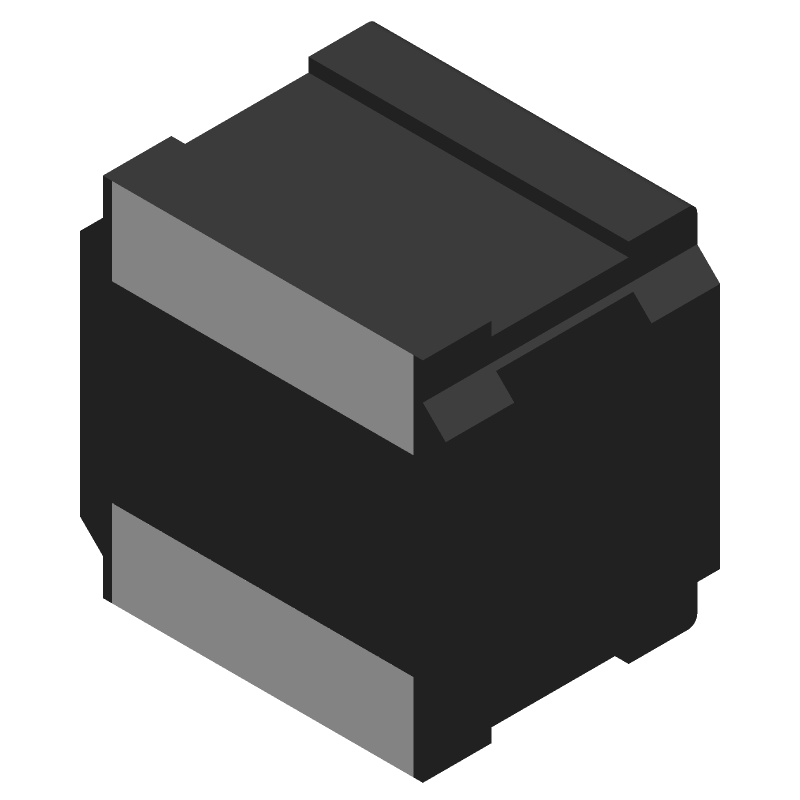

ASPI-4030S-4R3M-T CAD Models
ASPI-4030S-4R3M-T Part Data Attributes
|
|
ASPI-4030S-4R3M-T
Abracon Corporation
Buy Now
Datasheet
|
Compare Parts:
ASPI-4030S-4R3M-T
Abracon Corporation
IND 4.3uH 2.1A 55mΩ
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ABRACON LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | ABRACON | |
| Case/Size Code | 1616 | |
| Construction | Rectangular | |
| Core Material | NICKEL-ZINC FERRITE | |
| DC Resistance | 0.055 Ω | |
| Inductance-Nom (L) | 4.3 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3 mm | |
| Package Length | 4 mm | |
| Package Style | SMT | |
| Package Width | 4 mm | |
| Packing Method | TR, 13 Inch | |
| Rated Current-Max | 2.1 A | |
| Self Resonance Frequency | 37 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Special Feature | DCR IS MEASURED AT 30% TOLERANCE | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | ONE SURFACE | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
