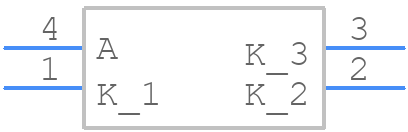

Part Symbol
-
Footprint
-

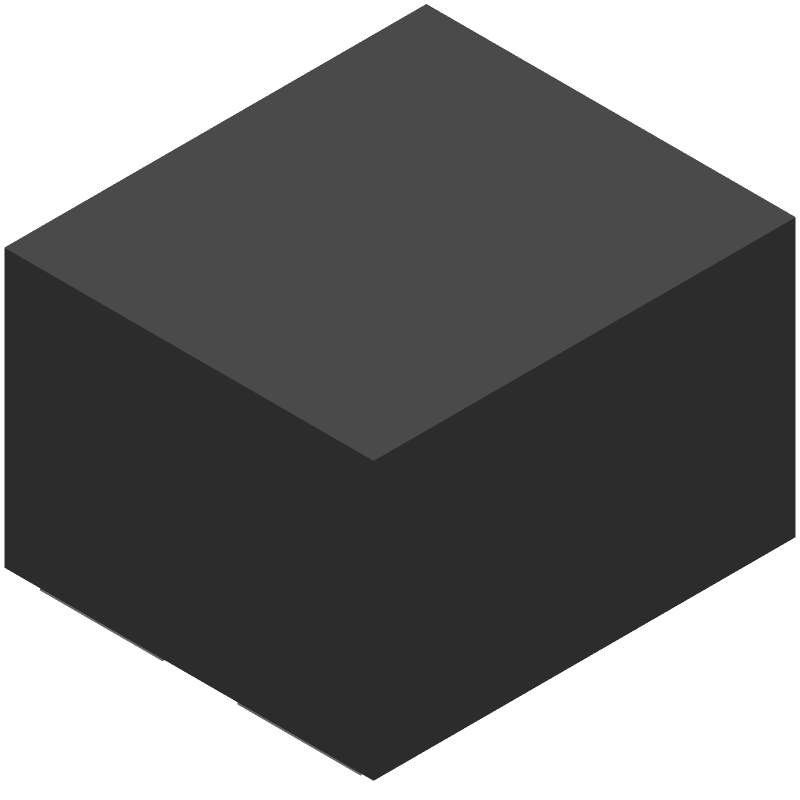

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ASMC-PHB9-TW005 by Avago Technologies
Results Overview of ASMC-PHB9-TW005 by Avago Technologies
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ASMC-PHB9-TW005 Information
ASMC-PHB9-TW005 by Avago Technologies is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for ASMC-PHB9-TW005
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 3448 |
|
RFQ | ||
|
|
Bristol Electronics | 100 |
|
RFQ | ||
|
|
Quest Components | SINGLE COLOR LED, RED ORANGE | 2758 |
|
$0.4200 / $1.2000 | Buy Now |
Part Details for ASMC-PHB9-TW005
ASMC-PHB9-TW005 CAD Models
ASMC-PHB9-TW005 Part Data Attributes
|
|
ASMC-PHB9-TW005
Avago Technologies
Buy Now
Datasheet
|
Compare Parts:
ASMC-PHB9-TW005
Avago Technologies
SINGLE COLOR LED, RED ORANGE, 2.2mm, ROHS COMPLIANT, PLASTIC, SMT, LCC-4
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | AVAGO TECHNOLOGIES INC | |
| Package Description | ROHS COMPLIANT, PLASTIC, SMT, LCC-4 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Avago Technologies | |
| Additional Feature | HIGH RELIABILITY | |
| Color | RED ORANGE | |
| Color@Wavelength | Orange | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.07 A | |
| Forward Voltage-Max | 3.4 V | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 1.8 mm | |
| Packing Method | TR, 7 INCH | |
| Peak Wavelength | 623 nm | |
| Reverse Voltage-Max | 5 V | |
| Shape | ROUND | |
| Size | 2.2 mm | |
| Surface Mount | YES | |
| Terminal Pitch | 3 mm | |
| Viewing Angle | 120 deg |
