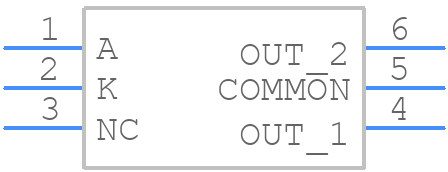

Part Symbol
-

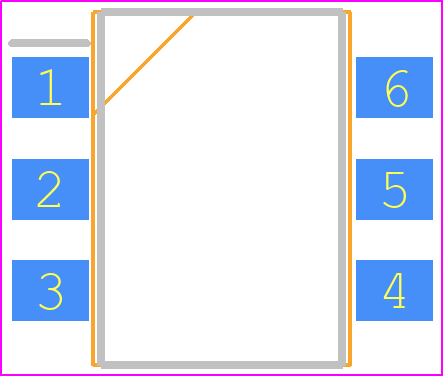

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AQV454HAX by Panasonic Electronic Components
Results Overview of AQV454HAX by Panasonic Electronic Components
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Healthcare
Renewable Energy
Robotics and Drones
AQV454HAX Information
AQV454HAX by Panasonic Electronic Components is a Solid State Relay.
Solid State Relays are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for AQV454HAX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10C3896
|
Newark | Ic, normally-Closed Pc-Mount Solid-State Relay,1-Channel, so Rohs Compliant: Yes |Panasonic AQV454HAX RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$3.8800 | Buy Now |
|
DISTI #
255-3868-1-ND
|
DigiKey | SSR RELAY SPST-NC 150MA 0-400V Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$3.7678 | Buy Now |
|
DISTI #
AQV454HAX
|
Avnet Americas | Relay SSR 3mA 1.5V DC-IN 150mA 400V AC/DC-OUT 6-Pin DIP Surface Mount T/R - Tape and Reel (Alt: AQV454HAX) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Container: Reel | 0 |
|
$3.2643 / $3.4805 | Buy Now |
|
DISTI #
769-AQV454HAX
|
Mouser Electronics | Solid State Relays - PCB Mount RELAY OPTO AC/DC 400V 150MA 6SMD RoHS: Compliant | 885 |
|
$3.1500 / $5.6000 | Buy Now |
|
|
Onlinecomponents.com | Solid State Relay 30mA 1.5V DC-IN 0.15A 320V AC/DC-OUT 6-Pin DIP SMD T/R RoHS: Compliant | 0 |
|
$3.4600 / $9.4900 | Buy Now |
|
DISTI #
000000000000189988
|
Sager | RELAY, PHOTOMOS Min Qty: 1000 | 0 |
|
$4.6500 | Buy Now |
|
|
Master Electronics | Solid State Relay 30mA 1.5V DC-IN 0.15A 320V AC/DC-OUT 6-Pin DIP SMD T/R RoHS: Compliant | 0 |
|
$3.4600 / $9.4900 | Buy Now |
Part Details for AQV454HAX
AQV454HAX CAD Models
AQV454HAX Part Data Attributes
|
|
AQV454HAX
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
AQV454HAX
Panasonic Electronic Components
Transistor Output SSR, 1-Channel, 5000V Isolation, SMD-6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | SMD-6 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.95.00 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Additional Feature | HIGH SENSITIVITY | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| Forward Current-Max | 0.05 A | |
| Isolation Voltage-Max | 5000 V | |
| Number of Elements | 1 | |
| On-State Current-Max | 0.15 A | |
| On-state Resistance-Max | 16 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | TRANSISTOR OUTPUT SSR | |
| Packing Method | TR |
AQV454HAX Frequently Asked Questions (FAQ)
-
The recommended storage temperature for AQV454HAX is -40°C to 125°C.
-
Yes, the AQV454HAX is AEC-Q101 qualified, making it suitable for automotive applications.
-
The maximum operating voltage for AQV454HAX is 30V.
-
No, the AQV454HAX does not have built-in over-voltage protection. External protection circuits may be required.
-
The typical turn-on time for the AQV454HAX is 1ms.
