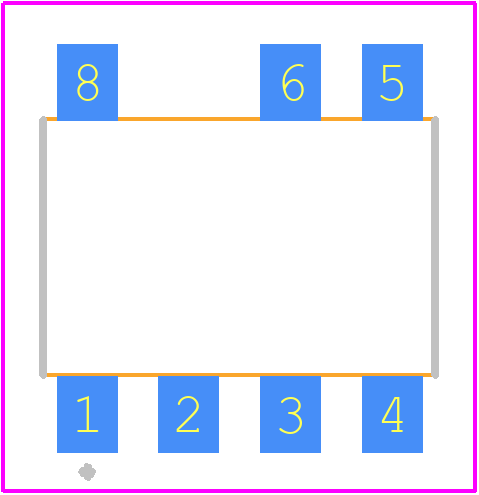

Footprint
-

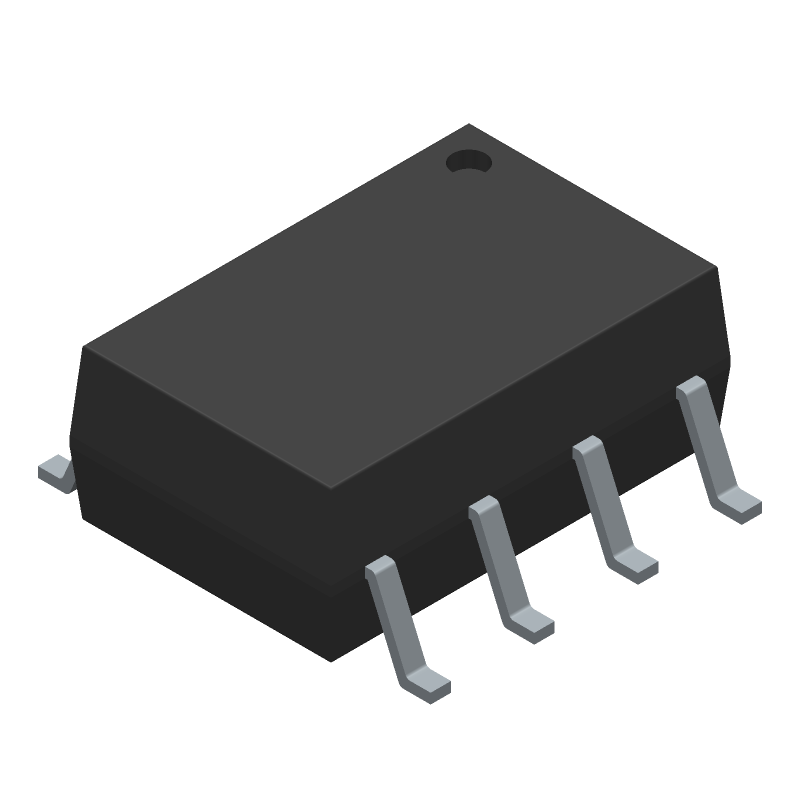

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AQH3213AX by Panasonic Electronic Components
Results Overview of AQH3213AX by Panasonic Electronic Components
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AQH3213AX Information
AQH3213AX by Panasonic Electronic Components is a Solid State Relay.
Solid State Relays are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for AQH3213AX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68AH1047
|
Newark | Solid State Relay, 1.2A, 600Vac, Smd, Contact Configuration:Spst-No, Load Current:1.2A, Operating Voltage Max:600Vac, Relay Mounting:Surface Mount, Relay Terminals:Gull Wing, Switching Mode:Zero Crossing, Operating Voltage Min:- Rohs Compliant: Yes |Panasonic AQH3213AX RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 738 |
|
$1.0800 | Buy Now |
|
DISTI #
11N2607
|
Newark | Aq-H Solid Stat Rohs Compliant: Yes |Panasonic AQH3213AX RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.2500 / $1.5800 | Buy Now |
|
DISTI #
255-6001-1-ND
|
DigiKey | SSR RELAY SPST-NO 1.2A 0-600V Min Qty: 1 Lead time: 29 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
750 In Stock |
|
$1.1784 / $1.8400 | Buy Now |
|
DISTI #
AQH3213AX
|
Avnet Americas | Relay SSR 50mA 1.3V DC-IN 1.2A 600V AC-OUT 7-Pin PDIP SMD T/R - Rail/Tube (Alt: AQH3213AX) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 111 Weeks, 0 Days Container: Tube | 0 |
|
$0.8775 / $0.9800 | Buy Now |
|
DISTI #
769-AQH3213AX
|
Mouser Electronics | Solid State Relays - PCB Mount AC 600 V Zero Cross 1.2A SMD RoHS: Compliant | 16 |
|
$1.1000 / $1.8900 | Buy Now |
|
DISTI #
74612432
|
RS | Solid State RelayAQ-H Solid State Relay Min Qty: 1000 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$1.6600 / $1.8100 | RFQ |
|
|
Onlinecomponents.com | Solid State Relay 50mA 1.3V DC-IN 1.2A 600V AC-OUT 7-Pin DIP SMD T/R RoHS: Compliant |
300 In Stock |
|
$1.1790 / $1.4620 | Buy Now |
|
DISTI #
80923254
|
Verical | Relay SSR 50mA 1.3V DC-IN 1.2A 600V AC-OUT 7-Pin DIP SMD T/R RoHS: Compliant Min Qty: 47 Package Multiple: 1 | Americas - 738 |
|
$1.4268 / $1.6277 | Buy Now |
|
DISTI #
69154313
|
Verical | Relay SSR 50mA 1.3V DC-IN 1.2A 600V AC-OUT 7-Pin DIP SMD T/R RoHS: Compliant Min Qty: 300 Package Multiple: 300 Date Code: 2320 | Americas - 300 |
|
$1.5470 / $1.7290 | Buy Now |
|
DISTI #
AQH3213AX
|
TTI | Solid State Relays - PCB Mount AC 600 V Zero Cross 1.2A SMD RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.9100 / $1.0000 | Buy Now |
Part Details for AQH3213AX
AQH3213AX CAD Models
AQH3213AX Part Data Attributes
|
|
AQH3213AX
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
AQH3213AX
Panasonic Electronic Components
Solid State Relay,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | DIP-8/7 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.95.00 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Additional Feature | UL RECOGNIZED, WITH ZERO CROSS OVER CIRCUIT | |
| Configuration | SINGLE | |
| Control Current | 0.015 A | |
| Control Voltage | 1.21 V | |
| Forward Current-Max | 0.025 A | |
| Input Type | AC | |
| Isolation Voltage-Max | 5000 V | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Optoelectronic Device Type | TRIGGER OUTPUT SSR | |
| Output Circuit Type | DIAC | |
| Overall Height | 3.4 mm | |
| Overall Length | 9.78 mm | |
| Packing Method | TR | |
| Surface Mount | YES |
