Part Details for APDS-9005-020 by Avago Technologies
Results Overview of APDS-9005-020 by Avago Technologies
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
APDS-9005-020 Information
APDS-9005-020 by Avago Technologies is an Other Analog IC.
Other Analog ICs are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for APDS-9005-020
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 20 |
|
RFQ |
Part Details for APDS-9005-020

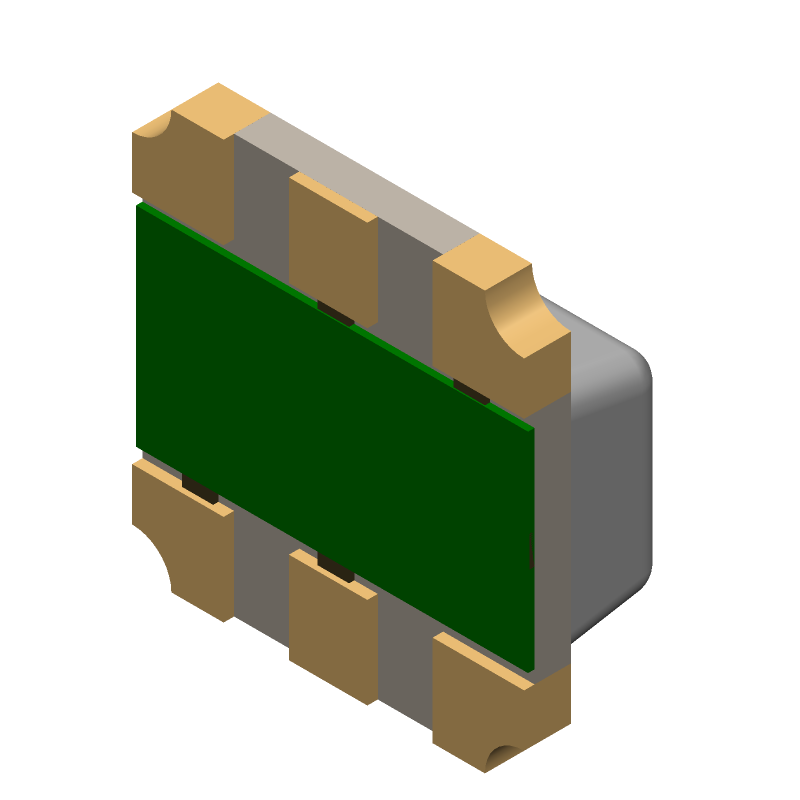

APDS-9005-020 CAD Models
APDS-9005-020 Part Data Attributes
|
|
APDS-9005-020
Avago Technologies
Buy Now
Datasheet
|
Compare Parts:
APDS-9005-020
Avago Technologies
SPECIALTY ANALOG CIRCUIT, PDSO6, 1.60 X 1.50 MM, 0.55 MM HEIGHT, ROHS COMPLIANT, PACKAGE-6
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AVAGO TECHNOLOGIES INC | |
| Package Description | VSON, | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Avago Technologies | |
| Additional Feature | SEATED HGT-NOM | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-PDSO-N6 | |
| JESD-609 Code | e4 | |
| Length | 1.6 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSON | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.55 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.8 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | GOLD | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Width | 1.5 mm |
APDS-9005-020 Frequently Asked Questions (FAQ)
-
A good PCB layout for the APDS-9005-020 involves keeping the sensor away from high-frequency components, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller. A 4-layer PCB with a dedicated ground plane is recommended.
-
Calibration involves adjusting the integration time and gain settings to optimize the sensor's response to ambient light. This can be done through software or using external resistors to adjust the gain. Consult the datasheet and application notes for specific calibration procedures.
-
The APDS-9005-020 is rated for operation from -40°C to 85°C. However, optimal performance is achieved between 0°C to 70°C. Operating the sensor outside this range may affect its accuracy and reliability.
-
The APDS-9005-020 is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, if necessary, the sensor can be coated with a conformal coating to protect it from moisture. Consult the datasheet and manufacturer's recommendations for specific guidance.
-
The APDS-9005-020 communicates through an I2C interface. Connect the SCL and SDA pins to the microcontroller's I2C pins, and use a level shifter if necessary. Ensure the microcontroller's I2C clock frequency is within the recommended range (100 kHz to 400 kHz).
