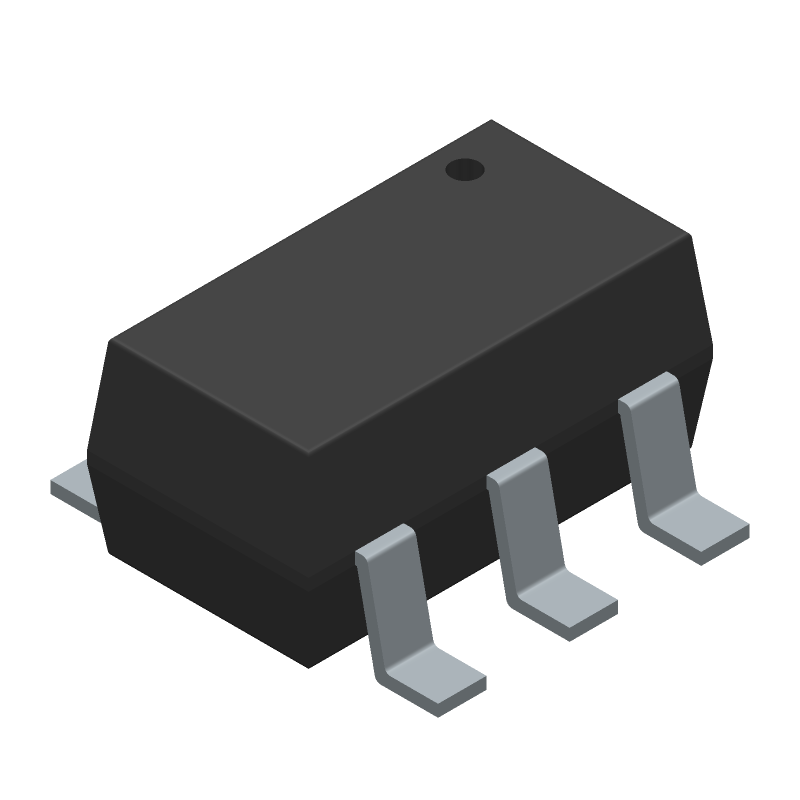

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AP3032KTR-G1 by Diodes Incorporated
Results Overview of AP3032KTR-G1 by Diodes Incorporated
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AP3032KTR-G1 Information
AP3032KTR-G1 by Diodes Incorporated is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for AP3032KTR-G1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
76AH4710
|
Newark | Led Driver, Boost, -40 To 85Deg C Rohs Compliant: Yes |Diodes Inc. AP3032KTR-G1 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 9800 |
|
$0.1970 / $0.6440 | Buy Now |
|
DISTI #
AP3032KTR-G1DICT-ND
|
DigiKey | IC LED DRV RGLTR PWM SOT23-6 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
7779 In Stock |
|
$0.0891 / $0.2500 | Buy Now |
|
DISTI #
AP3032KTR-G1
|
Avnet Americas | LED DRVR Boost 1-CH PWM 38V 6-Pin SOT-23 T/R - Tape and Reel (Alt: AP3032KTR-G1) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 153000 Factory Stock |
|
$0.0741 / $0.0780 | Buy Now |
|
DISTI #
621-AP3032KTR-G1
|
Mouser Electronics | LED Lighting Driver ICs White LED Step-Up 1.4A 6.8uH 200mV RoHS: Compliant | 37454 |
|
$0.0870 / $0.2500 | Buy Now |
|
DISTI #
A03:0893_13586791
|
Arrow Electronics | LED Driver 50uA Supply Current 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks Date Code: 2507 | Asia - 144000 |
|
$0.0823 / $0.0963 | Buy Now |
|
DISTI #
E02:0323_07296790
|
Arrow Electronics | LED Driver 50uA Supply Current 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2504 | Europe - 9000 |
|
$0.0841 / $0.0984 | Buy Now |
|
|
Future Electronics | AP3032 Series 9 V 1.3 MHz Surface Mount White LED Step-Up Converter - SOT-23-6 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Container: Reel | 18000Reel |
|
$0.0808 / $0.0868 | Buy Now |
|
|
Bristol Electronics | 230 |
|
RFQ | ||
|
|
Future Electronics | AP3032 Series 9 V 1.3 MHz Surface Mount White LED Step-Up Converter - SOT-23-6 Min Qty: 3000 Package Multiple: 3000 |
18000 null |
|
$0.0808 / $0.0868 | Buy Now |
|
|
Future Electronics | AP3032 Series 9 V 1.3 MHz Surface Mount White LED Step-Up Converter - SOT-23-6 Min Qty: 3000 Package Multiple: 3000 |
42000 null |
|
$0.0769 / $0.0836 | Buy Now |
Part Details for AP3032KTR-G1
AP3032KTR-G1 CAD Models
AP3032KTR-G1 Part Data Attributes
|
|
AP3032KTR-G1
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
AP3032KTR-G1
Diodes Incorporated
LED Driver, PDSO6
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Package Description | SOT-23, 6 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Interface IC Type | LED DISPLAY DRIVER | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.92 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Segments | 28 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Supply Voltage-Max | 9 V | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
