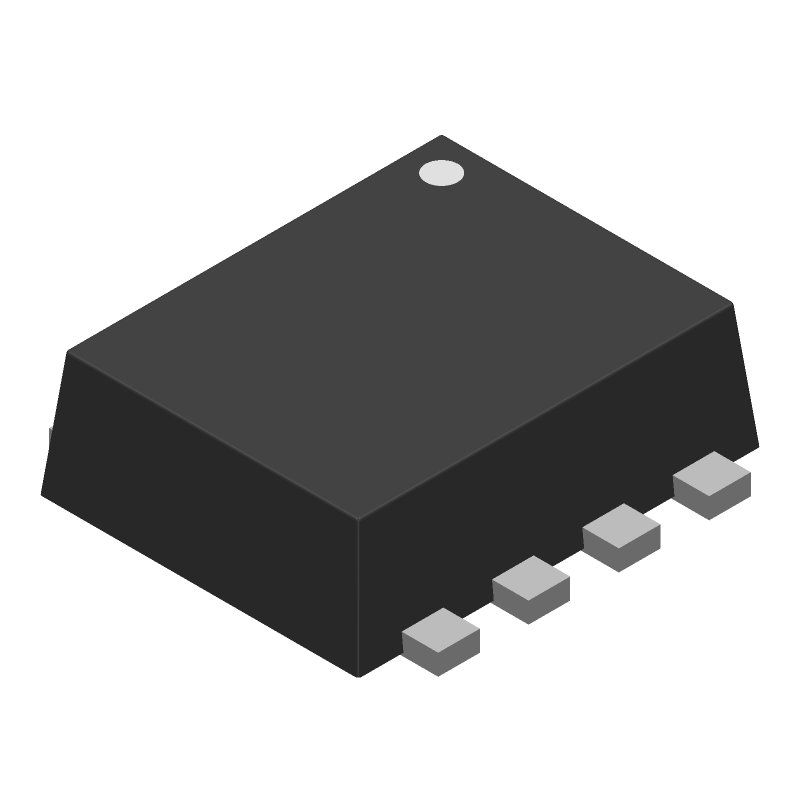

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AON3611 by Alpha & Omega Semiconductor
Results Overview of AON3611 by Alpha & Omega Semiconductor
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AON3611 Information
AON3611 by Alpha & Omega Semiconductor is an Other Transistor.
Other Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for AON3611
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
785-1570-1-ND
|
DigiKey | MOSFET N/P-CH 30V 5A/6A 8DFN Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
15388 In Stock |
|
$0.1625 / $0.8600 | Buy Now |
|
DISTI #
AON3611
|
TME | Transistor: N/P-MOSFET, unipolar, complementary pair, 30/-30V Min Qty: 3 | 0 |
|
$0.0840 / $0.1330 | RFQ |
Part Details for AON3611
AON3611 CAD Models
AON3611 Part Data Attributes
|
|
AON3611
Alpha & Omega Semiconductor
Buy Now
Datasheet
|
Compare Parts:
AON3611
Alpha & Omega Semiconductor
Transistor
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ALPHA & OMEGA SEMICONDUCTOR LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Alpha & Omega Semiconductors | |
| Drain Current-Max (ID) | 6 A | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Moisture Sensitivity Level | 1 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Polarity/Channel Type | N-CHANNEL AND P-CHANNEL | |
| Power Dissipation-Max (Abs) | 2.5 W | |
| Surface Mount | YES |
AON3611 Frequently Asked Questions (FAQ)
-
The AON3611 can operate from -40°C to 150°C, making it suitable for high-reliability applications.
-
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, decouple the VCC pin with a 1uF ceramic capacitor to reduce noise.
-
To minimize EMI and thermal issues, use a multi-layer PCB with a solid ground plane, and place the AON3611 near the power source. Keep the input and output traces short and away from each other, and use a thermal pad or heat sink for high-power applications.
-
Use a voltage regulator or a transient voltage suppressor (TVS) to protect the AON3611 from overvoltage conditions. For overcurrent protection, add a fuse or a current-limiting resistor in series with the input power supply.
-
Store the AON3611 in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, avoiding touching the pins to prevent electrostatic discharge (ESD) damage.
