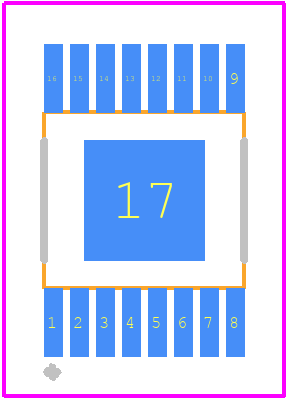

Footprint
-

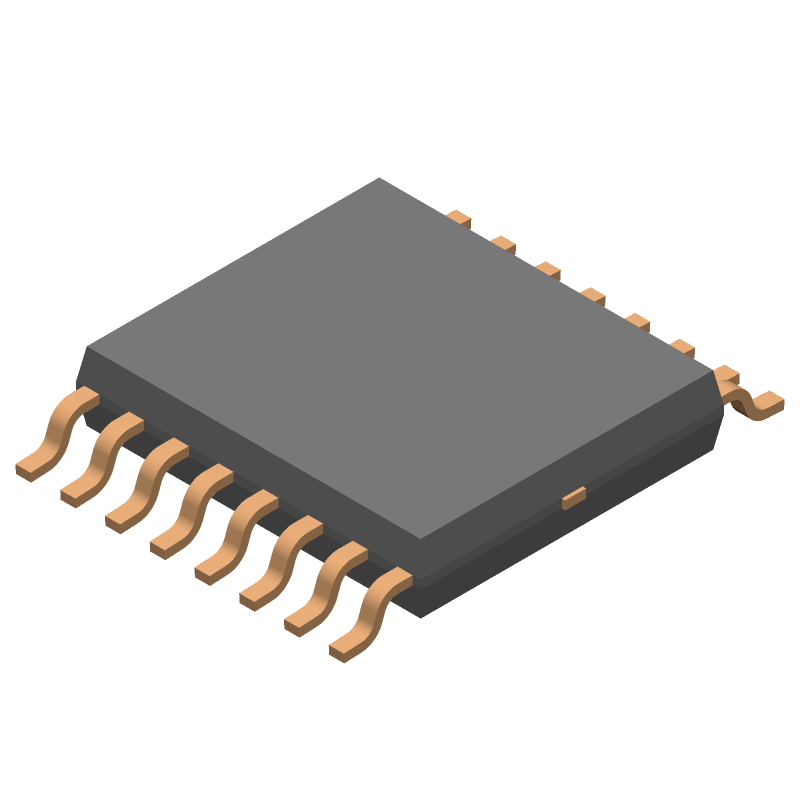

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AMT49702KLPATR by Allegro MicroSystems LLC
Results Overview of AMT49702KLPATR by Allegro MicroSystems LLC
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
AMT49702KLPATR Information
AMT49702KLPATR by Allegro MicroSystems LLC is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for AMT49702KLPATR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
56AC5100
|
Newark | Motor Driver, Aec-Q100, Stepper, Tssop-16, Ic Type:Full Bridge Motor Driver, Motor Type:Dc, Stepper, No. Of Outputs:2Outputs, Output Current:1A, Output Voltage:-, Ic Case/Package:Tssop, No. Of Pins:16Pins, Supply Voltage Min:3.5V Rohs Compliant: Yes |Allegro Microsystems AMT49702KLPATR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 86 |
|
$0.3630 | Buy Now |
|
DISTI #
620-1886-1-ND
|
DigiKey | IC HALF BRIDGE DRVR 1A 16ETSSOP Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3670 In Stock |
|
$1.0485 / $1.9900 | Buy Now |
|
DISTI #
85965738
|
Verical | Full Bridge Motor Driver 16-Pin TSSOP EP T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 253 Package Multiple: 1 Date Code: 1701 | Americas - 4000 |
|
$1.4875 | Buy Now |
|
|
Rochester Electronics | AMT49702 - Lv Automotive Dual DC Or Single Stepper Motor Driver RoHS: Compliant Status: End of Life / Last Time Buy Min Qty: 1 | 4000 |
|
$0.7378 / $1.1900 | Buy Now |
|
DISTI #
AMT49702KLPATR
|
Avnet Silica | Dual DMOS FullBridge Motor Driver 35V to 15V 16Pin TSSOP EP (Alt: AMT49702KLPATR) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 22 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for AMT49702KLPATR
AMT49702KLPATR CAD Models
AMT49702KLPATR Part Data Attributes
|
|
AMT49702KLPATR
Allegro MicroSystems LLC
Buy Now
Datasheet
|
Compare Parts:
AMT49702KLPATR
Allegro MicroSystems LLC
Brushless DC Motor Controller,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ALLEGRO MICROSYSTEMS LLC | |
| Package Description | TSSOP-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2017-09-07 | |
| Samacsys Manufacturer | Allegro Microsystems | |
| Additional Feature | ALSO DRIVES STEPPER MOTOR | |
| Analog IC - Other Type | BRUSHLESS DC MOTOR CONTROLLER | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 15 V | |
| Supply Voltage-Min (Vsup) | 3.5 V | |
| Surface Mount | YES | |
| Technology | DMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 4.4 mm |
AMT49702KLPATR Frequently Asked Questions (FAQ)
-
Allegro recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a separate power plane for the VCC and GND pins. Keep the signal traces short and away from noise sources. Use a decoupling capacitor (e.g., 10nF) between VCC and GND close to the device.
-
The thermal pad should be connected to a thermal relief pattern on the PCB to ensure good heat dissipation. Use a thermal interface material (e.g., thermal tape or thermal grease) to improve heat transfer between the device and the PCB.
-
The AMT49702KLPATR is rated for operation from -40°C to 150°C (TJ). However, for optimal performance and reliability, Allegro recommends operating the device within the -20°C to 125°C range.
-
The AMT49702KLPATR has an internal calibration mechanism. However, for high-accuracy applications, Allegro recommends performing an external calibration using a known magnetic field source and adjusting the device's output accordingly.
-
The AMT49702KLPATR is designed to operate up to 100 mT (1000 Gauss) magnetic field strength. Exceeding this limit may cause device damage or inaccurate output.
