Oscillators / XO / AMJDEFJ-A11
Datasheets
AMJDEFJ-A11 by: Abracon Corporation

OSC MEMS XO DUAL FREQUENCY

Part Details for AMJDEFJ-A11 by Abracon Corporation

Results Overview of AMJDEFJ-A11 by Abracon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

AMJDEFJ-A11 Information

AMJDEFJ-A11 by Abracon Corporation is an XO.
XO are under the broader part category of Oscillators.

Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.

Price & Stock for AMJDEFJ-A11

Part # Distributor Description Stock Price Buy
DISTI # 67AC9505
Newark Mems Osc, Config, 50/100Mhz, 3.2 X 2.5Mm, Configurable Frequency Min:50Mhz, Configurable Frequency Max:100Mhz, Frequency Stability +/-:25Ppm, Oscillator Case:Smd, 3.2Mm X 2.5Mm, Product Range:Amjd Series, Supply Voltage Min:1.71V Rohs Compliant: Yes |Abracon AMJDEFJ-A11 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 110
  • 1 $0.4420
  • 10 $0.4420
  • 25 $0.4420
  • 50 $0.4420
  • 100 $0.4420
  • 500 $0.4420
  • 1,000 $0.4420
  • 2,500 $0.4420
$0.4420 Buy Now
DISTI # 2266-AMJDEFJ-A11-ND
DigiKey OSC MEMS XO DUAL OUTPUT Min Qty: 50 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT 220
In Stock
  • 50 $1.5100
$1.5100 Buy Now
DISTI # AMJDEFJ-A11-ND
DigiKey OSC MEMS XO DUAL OUTPUT Min Qty: 50 Lead time: 12 Weeks Container: Bulk Temporarily Out of Stock
  • 1,000 $2.3068
$2.3068 Buy Now
DISTI # 67AC9505
Avnet Americas MEMS Configurable Oscillator, 50 MHz to 100 MHz, SMD, 3.2mm x 2.5mm, 25 ppm, 1.71 V to 3.63 V, AMJD - Bulk (Alt: 67AC9505) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 3 Days Container: Bulk 110 Partner Stock
  • 1 $2.8300
$2.8300 Buy Now
DISTI # AMJDEFJ-A11
Avnet Americas MEMS Configurable Oscillator, 50 MHz to 100 MHz, SMD, 3.2mm x 2.5mm, 25 ppm, 1.71 V to 3.63 V, AMJD - Bulk (Alt: AMJDEFJ-A11) RoHS: Compliant Min Qty: 1000 Package Multiple: 100 Lead time: 12 Weeks, 0 Days Container: Bulk 0
  • 1,000 $1.9748
  • 1,200 $1.9419
  • 2,200 $1.9091
  • 5,000 $1.8762
  • 10,000 $1.8434
$1.8434 / $1.9748 Buy Now
DISTI # 815-AMJDEFJ-A11
Mouser Electronics Standard Clock Oscillators OSC MEMS XO DUAL OUTPUT RoHS: Compliant 0
  • 1,000 $2.1300
  • 2,500 $2.0500
$2.0500 / $2.1300 Order Now
DISTI # V99:2348_21909694
Arrow Electronics Oscillator MEMS 50MHz/ 100MHz ±25ppm (Stability) CMOS 55% 1.8V/2.5V/3.3V 4-Pin DFN SMD Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 1752 Americas - 110
  • 1 $2.1257
$2.1257 Buy Now
Onlinecomponents.com Frequency Selectable MEMS Oscillator - 50.000 MHz & 100.000 MHz ±25ppm -40°C to +85°C - Vdd 1.8 to 3.3 VDC - 3.2 x 2.5 mm - Bulk RoHS: Compliant 0
  • 250 $4.2700
  • 500 $2.6300
  • 750 $2.0800
  • 1,000 $2.0400
$2.0400 / $4.2700 Buy Now
DISTI # 30559571
Verical Oscillator MEMS 50MHz/ 100MHz ±25ppm (Stability) CMOS 55% 1.8V/2.5V/3.3V 4-Pin DFN SMD Tube RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1752 Americas - 110
  • 10 $2.1257
$2.1257 Buy Now
DISTI # AMJDEFJ-A11
IBS Electronics OSCILLATOR MEMS 50MHZ/ 100MHZ &#xB1, 25PPM (STABILITY)CMOS 55% 1.8V/2.5V/3.3V 4-PIN DFN SMD TUBE Min Qty: 95 Package Multiple: 1 220
  • 95 $1.3375
$1.3375 Buy Now
DISTI # AMJDEFJ-A11
Avnet Abacus MEMS Configurable Oscillator 50 MHz to 100 MHz SMD 32mm x 25mm 25 ppm 171 V to 363 V AMJD (Alt: AMJDEFJ-A11) RoHS: Compliant Min Qty: 1000 Package Multiple: 100 Lead time: 14 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for AMJDEFJ-A11

AMJDEFJ-A11 CAD Models

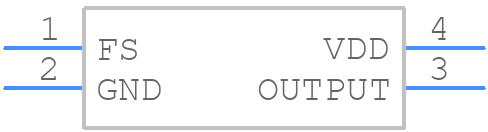

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

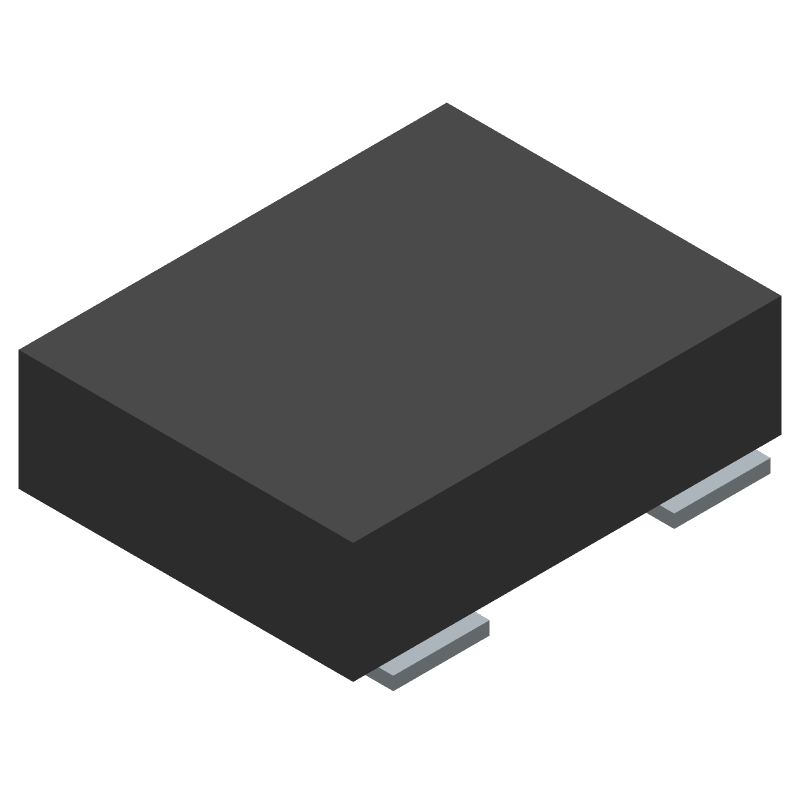

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AMJDEFJ-A11 Part Data Attributes

Parametric Data
AMJDEFJ-A11 Abracon Corporation
Buy Now Datasheet
Compare Parts:
AMJDEFJ-A11 Abracon Corporation OSC MEMS XO DUAL FREQUENCY
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ABRACON LLC
Reach Compliance Code compliant
Factory Lead Time 11 Weeks, 3 Days
Samacsys Manufacturer ABRACON
Additional Feature 100 MHZ FREQ ALSO AVAILABLE; BULK; TUBE
Fall Time-Max 1.5 ns
Frequency Adjustment-Mechanical NO
Frequency Stability 25%
Mounting Feature SURFACE MOUNT
Number of Terminals 4
Operating Frequency-Nom 50 MHz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Oscillator Type CMOS
Output Load 15 pF
Physical Dimension 3.2mm x 2.5mm x 0.85mm
Rise Time-Max 1.5 ns
Supply Voltage-Max 3.63 V
Supply Voltage-Min 1.71 V
Surface Mount YES
Symmetry-Max 55/45 %
