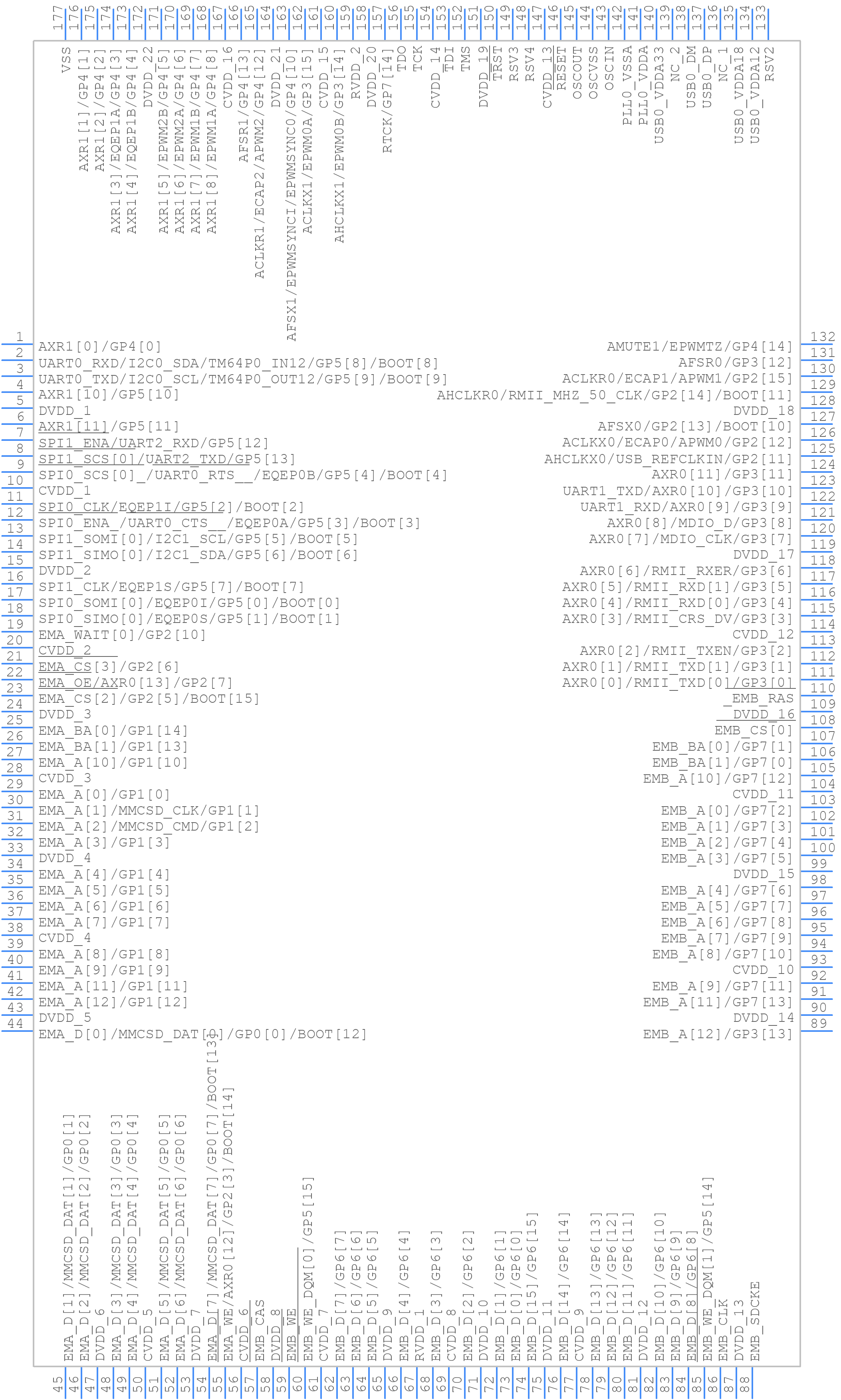

Part Symbol
-

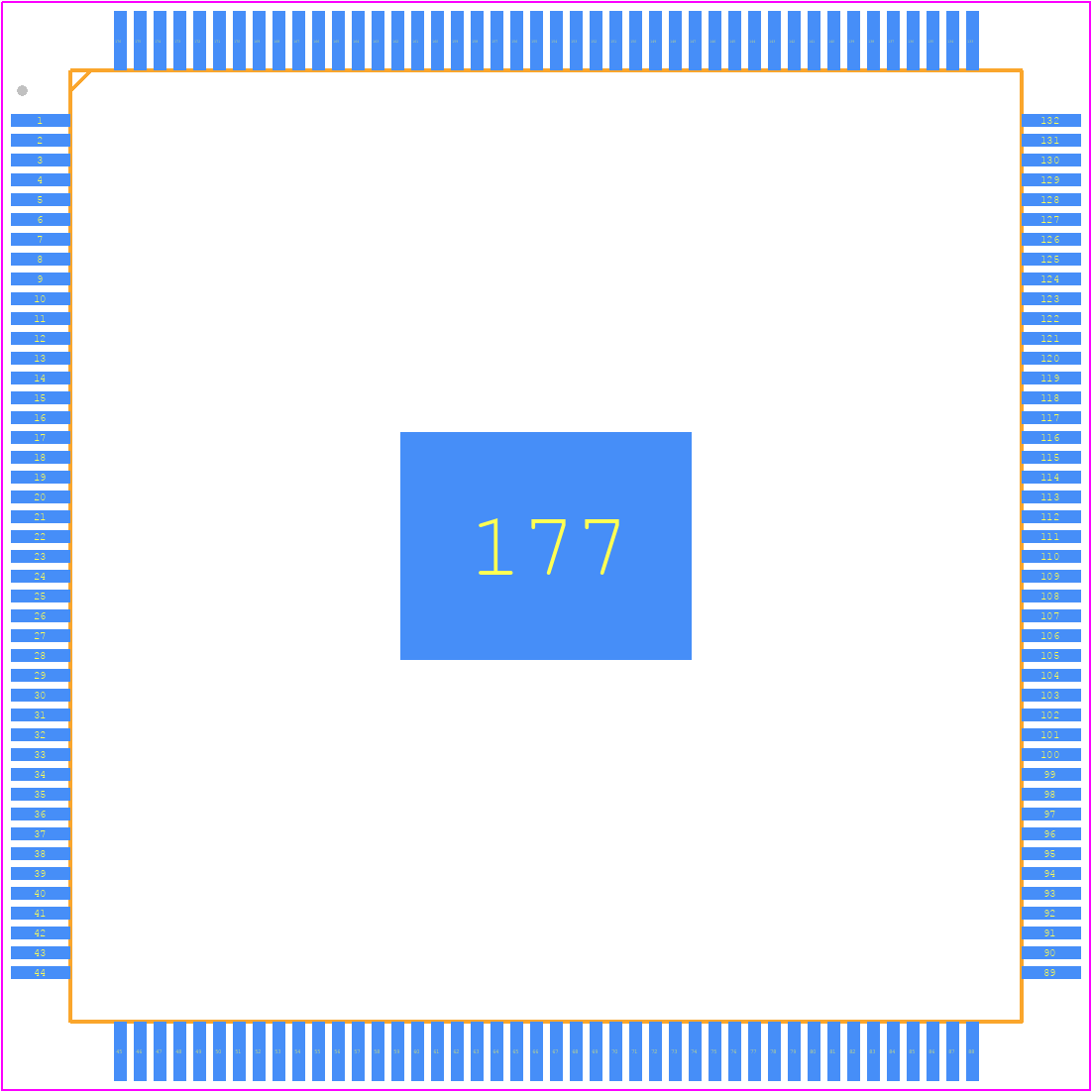

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AM1705BPTP4 by Texas Instruments
Results Overview of AM1705BPTP4 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
AM1705BPTP4 Information
AM1705BPTP4 by Texas Instruments is a Microprocessor.
Microprocessors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for AM1705BPTP4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-27569-5-ND
|
DigiKey | IC MPU SITARA 456MHZ 176HLQFP Min Qty: 1 Lead time: 12 Weeks Container: Tube |
87 In Stock |
|
$7.4375 / $9.5500 | Buy Now |
Part Details for AM1705BPTP4
AM1705BPTP4 CAD Models
AM1705BPTP4 Part Data Attributes
|
|
AM1705BPTP4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
AM1705BPTP4
Texas Instruments
Sitara Processor 176-HLQFP 0 to 90
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | HLQFP-176 | |
| Pin Count | 176 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Address Bus Width | 13 | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 50 MHz | |
| External Data Bus Width | 16 | |
| Format | FIXED POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PQFP-G176 | |
| JESD-609 Code | e4 | |
| Length | 24 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 4 | |
| Number of Terminals | 176 | |
| Operating Temperature-Max | 90 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HLFQFP | |
| Package Equivalence Code | QFP176,1.0SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.6 mm | |
| Speed | 456 MHz | |
| Supply Voltage-Max | 1.32 V | |
| Supply Voltage-Min | 1.14 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 24 mm | |
| uPs/uCs/Peripheral ICs Type | MICROPROCESSOR, RISC |
Alternate Parts for AM1705BPTP4
This table gives cross-reference parts and alternative options found for AM1705BPTP4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AM1705BPTP4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AM1705CPTP4 | Texas Instruments | Check for Price | Sitara Processor 176-HLQFP 0 to 90 | AM1705BPTP4 vs AM1705CPTP4 |
