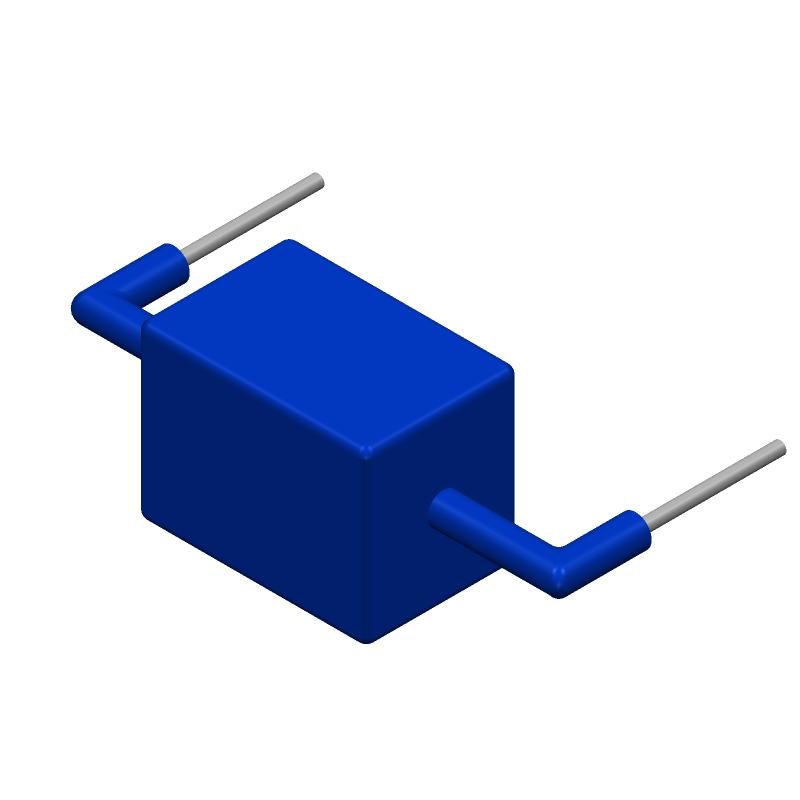

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AK6-170C by Micro Commercial Components
Results Overview of AK6-170C by Micro Commercial Components
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Healthcare
Renewable Energy
Robotics and Drones
AK6-170C Information
AK6-170C by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Part Details for AK6-170C
AK6-170C CAD Models
AK6-170C Part Data Attributes
|
|
AK6-170C
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
AK6-170C
Micro Commercial Components
Trans Voltage Suppressor Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | MCC | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Min | 180 V | |
| Clamping Voltage-Max | 260 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-P(NULL)-T2 | |
| Non-rep Peak Rev Power Dis-Max | 1560000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 170 V | |
| Reverse Current-Max | 20 µA | |
| Reverse Test Voltage | 170 V | |
| Surface Mount | NO | |
| Technology | AVALANCHE | |
| Terminal Form | THROUGH-HOLE |
Alternate Parts for AK6-170C
This table gives cross-reference parts and alternative options found for AK6-170C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AK6-170C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AK6-170C | Littelfuse Inc | $40.3360 | Trans Voltage Suppressor Diode, 6000W, 170V V(RWM), Bidirectional, 1 Element, Silicon, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 | AK6-170C vs AK6-170C |
