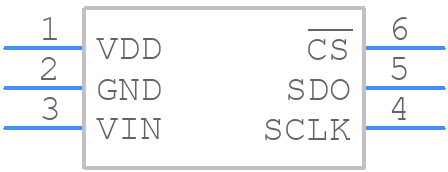

Part Symbol
-
Footprint
-

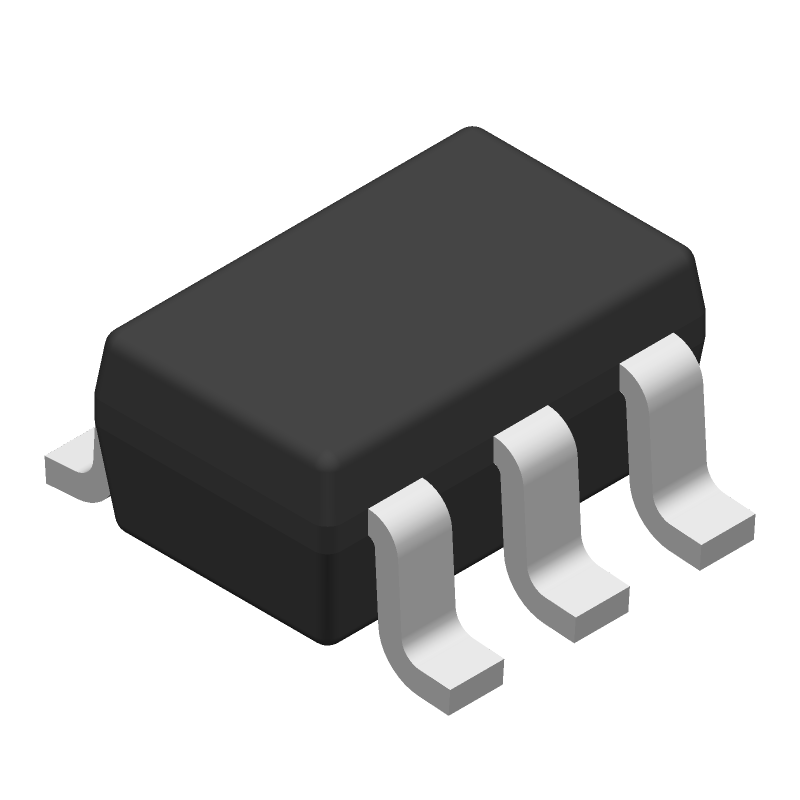

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADS7888SDCKT by Texas Instruments
Results Overview of ADS7888SDCKT by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADS7888SDCKT Information
ADS7888SDCKT by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADS7888SDCKT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-18269-1-ND
|
DigiKey | IC ADC 8BIT SAR SC70-6 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
246 In Stock |
|
$1.5885 / $3.0700 | Buy Now |
|
DISTI #
595-ADS7888SDCKT
|
Mouser Electronics | Analog to Digital Converters - ADC 2.35V-5.25V 8 Bit 1. 25MSPS Serial A 595-ADS7888SDCKR RoHS: Compliant | 0 |
|
$1.5800 / $3.0700 | Order Now |
|
|
Quest Components | 124 |
|
$3.7000 / $6.0000 | Buy Now | |
|
|
Win Source Electronics | 10-/8-Bit, 1.25-MSPS, MICRO-POWER, MINIATURE SAR ANALOG-TO-DIGITAL CONVERTERS | IC ADC 8BIT SAR SC70-6 | 94 |
|
$1.8762 / $2.8142 | Buy Now |
Part Details for ADS7888SDCKT
ADS7888SDCKT CAD Models
ADS7888SDCKT Part Data Attributes
|
|
ADS7888SDCKT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADS7888SDCKT
Texas Instruments
2.35V-5.25V, 8 Bit, 1.25MSPS, Serial ADC 6-SC70 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SC-70, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.25 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 0.48 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Linearity Error-Max (EL) | 0.1172% | |
| Moisture Sensitivity Level | 2 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 1.25 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 2 mA | |
| Supply Voltage-Min | 2.35 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
Alternate Parts for ADS7888SDCKT
This table gives cross-reference parts and alternative options found for ADS7888SDCKT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADS7888SDCKT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADS7888SDCKR | Texas Instruments | $1.2264 | 2.35V-5.25V, 8 Bit, 1.25MSPS, Serial ADC 6-SC70 -40 to 125 | ADS7888SDCKT vs ADS7888SDCKR |
ADS7888SDCKT Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the analog input signal. This ensures proper operation and prevents damage to the device.
-
To optimize the analog input signal range, ensure that the input signal is within the specified range of 0 to VREF. You can also use an external voltage divider or amplifier to adjust the input signal to the optimal range.
-
The maximum sampling rate of the ADS7888 is 1 MSPS (mega-samples per second). However, the actual sampling rate may be limited by the system clock frequency and the conversion time.
-
During power-down mode, the SDO pin should be left floating or tied to a high-impedance state to prevent any unwanted data transmission.
-
The CAL pin is used for calibration and self-test purposes. To use it, apply a logic high to the CAL pin to initiate the calibration sequence. The device will then perform an internal calibration and return to normal operation.
