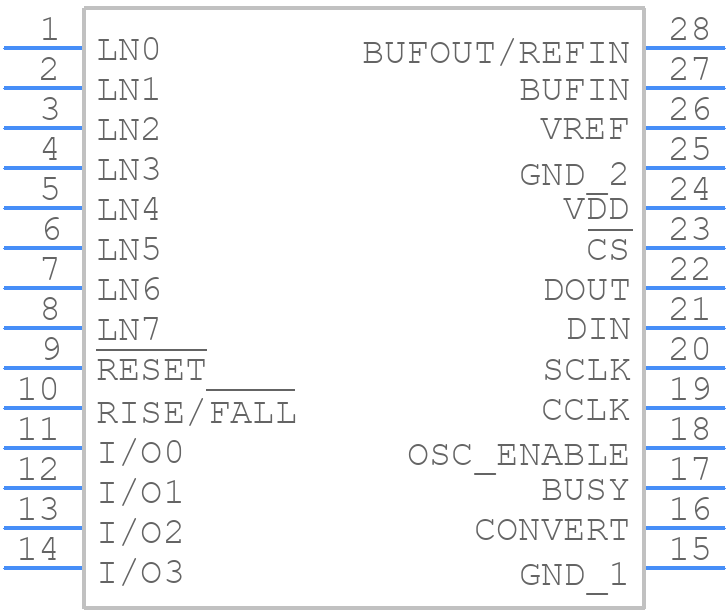

Part Symbol
-

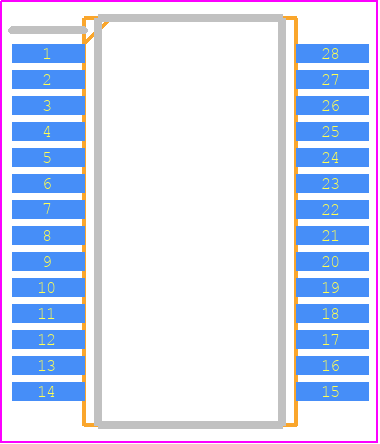

Footprint
-

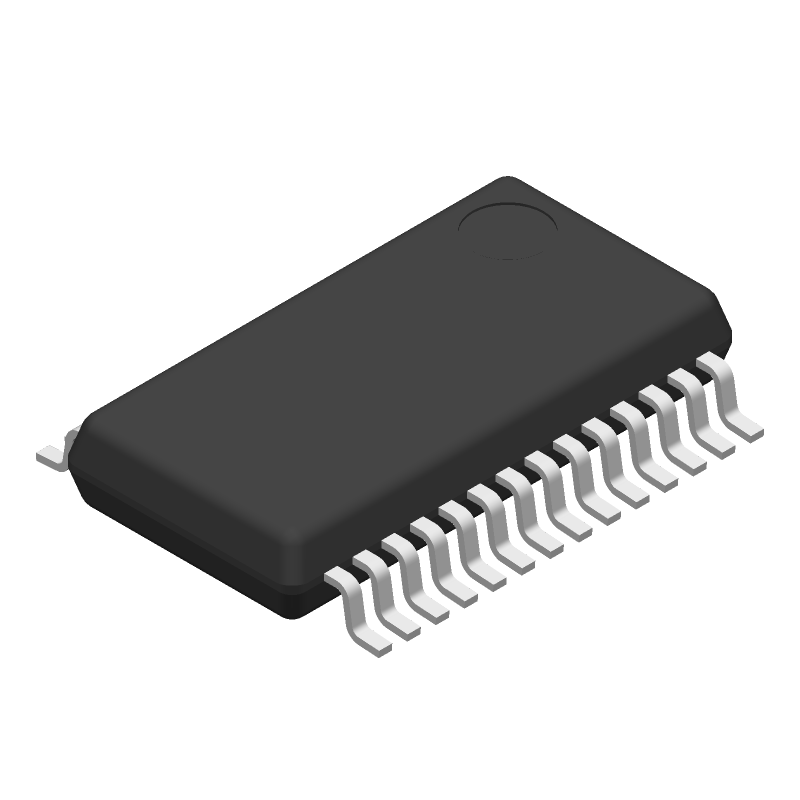

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADS7871IDBR by Texas Instruments
Results Overview of ADS7871IDBR by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Space Technology
Internet of Things (IoT)
Industrial Automation
Financial Technology (Fintech)
Energy and Power Systems
Transportation and Logistics
Medical Imaging
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Healthcare
Electronic Manufacturing
Renewable Energy
Robotics and Drones
ADS7871IDBR Information
ADS7871IDBR by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADS7871IDBR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-ADS7871IDBR
|
Mouser Electronics | Data Acquisition ADCs/DACs - Specialized 14-Bit 48KSPS DAS A 595-ADS7871IDB RoHS: Compliant | 0 |
|
$7.0900 | Order Now |
|
|
Quest Components | 2556 |
|
$3.8115 / $10.8900 | Buy Now |
Part Details for ADS7871IDBR
ADS7871IDBR CAD Models
ADS7871IDBR Part Data Attributes
|
|
ADS7871IDBR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADS7871IDBR
Texas Instruments
14-Bit 48KSPS DAS with ADC, MUX, PGA and Internal Reference 28-SSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | SSOP-28 | |
| Pin Count | 28 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.5 V | |
| Analog Input Voltage-Min | -0.2 V | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e4 | |
| Length | 10.2 mm | |
| Linearity Error-Max (EL) | 0.0122% | |
| Moisture Sensitivity Level | 2 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP28,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.048 MHz | |
| Seated Height-Max | 2 mm | |
| Supply Current-Max | 2 mA | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
Alternate Parts for ADS7871IDBR
This table gives cross-reference parts and alternative options found for ADS7871IDBR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADS7871IDBR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADS7871IDB | Texas Instruments | $6.5426 | 14-Bit 48KSPS DAS with ADC, MUX, PGA and Internal Reference 28-SSOP -40 to 85 | ADS7871IDBR vs ADS7871IDB |
| ADS7871IDBG4 | Texas Instruments | Check for Price | 14-Bit 48KSPS DAS with ADC, MUX, PGA and Internal Reference 28-SSOP -40 to 85 | ADS7871IDBR vs ADS7871IDBG4 |
ADS7871IDBR Frequently Asked Questions (FAQ)
-
The recommended layout and routing for the ADS7871IDBR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
-
To optimize the performance of the ADS7871IDBR in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the analog and digital grounds are properly separated and that the power supply is well-regulated.
-
The maximum sampling rate of the ADS7871IDBR is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface used.
-
The ADS7871IDBR has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve optimal performance. Refer to the datasheet for specific calibration procedures.
-
The power consumption of the ADS7871IDBR depends on the operating mode and the clock frequency. In normal operation, the device consumes around 35 mW at 1 MSPS. In power-down mode, the device consumes around 10 μW.
