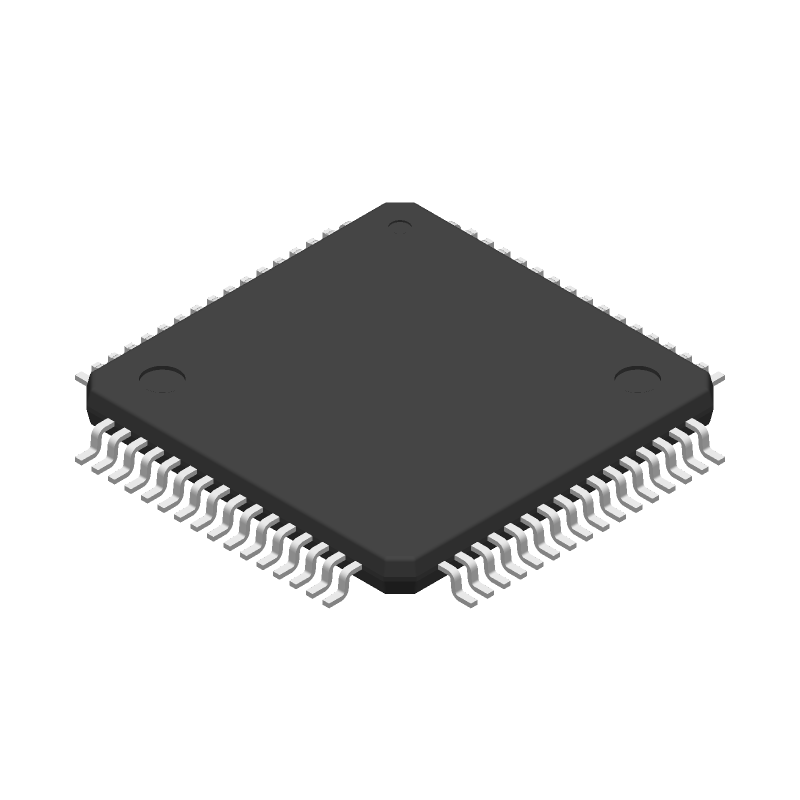

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADS1672IPAG by Texas Instruments
Results Overview of ADS1672IPAG by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADS1672IPAG Information
ADS1672IPAG by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| ADS1672IPAG | Texas Instruments | High Speed High Resolution 625kSPS 24 bit Delta Sigma ADC 64-TQFP -40 to 85 | |
| ADS1672IPAGR | Texas Instruments | High Speed High Resolution 625kSPS 24 bit Delta Sigma ADC 64-TQFP -40 to 85 |
Price & Stock for ADS1672IPAG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-23495-ND
|
DigiKey | IC ADC 24BIT SIGMA-DELTA 64TQFP Min Qty: 1 Lead time: 12 Weeks Container: Tray |
160 In Stock |
|
$21.1099 / $31.1100 | Buy Now |
|
DISTI #
595-ADS1672IPAG
|
Mouser Electronics | Analog to Digital Converters - ADC Hi Sp Hi Res 625kSPS 24B Delta Sigma ADC A 595-ADS1672IPAGR RoHS: Compliant | 158 |
|
$21.1000 / $31.1100 | Buy Now |
|
|
Bristol Electronics | 38 |
|
RFQ | ||
|
|
Cytech Systems Limited | IC ADC 24BIT SIGMA-DELTA 64TQFP | 472 |
|
RFQ | |
|
|
Vyrian | Converters | 8174 |
|
RFQ | |
|
|
Win Source Electronics | IC ADC 24-BIT 78.1K-625K 64-TQFP | 970 |
|
$19.5853 / $29.3774 | Buy Now |
Part Details for ADS1672IPAG
ADS1672IPAG CAD Models
ADS1672IPAG Part Data Attributes
|
|
ADS1672IPAG
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADS1672IPAG
Texas Instruments
High Speed High Resolution 625kSPS 24 bit Delta Sigma ADC 64-TQFP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | TQFP-64 | |
| Pin Count | 64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 3.25 V | |
| Analog Input Voltage-Min | -3 V | |
| Converter Type | ADC, DELTA-SIGMA | |
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e4 | |
| Length | 10 mm | |
| Linearity Error-Max (EL) | 0.00095% | |
| Moisture Sensitivity Level | 4 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFQFP | |
| Package Equivalence Code | TQFP64,.47SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.625 MHz | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 55 mA | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm |
Alternate Parts for ADS1672IPAG
This table gives cross-reference parts and alternative options found for ADS1672IPAG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADS1672IPAG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADS1672IPAGRG4 | Texas Instruments | Check for Price | High Speed High Resolution 625kSPS 24 bit Delta Sigma ADC 64-TQFP -40 to 85 | ADS1672IPAG vs ADS1672IPAGRG4 |
| ADS1672IPAGG4 | Texas Instruments | Check for Price | High Speed High Resolution 625kSPS 24 bit Delta Sigma ADC 64-TQFP -40 to 85 | ADS1672IPAG vs ADS1672IPAGG4 |
ADS1672IPAG Frequently Asked Questions (FAQ)
-
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog signals should be routed close to the AGND plane, and the digital signals should be routed close to the DGND plane. Additionally, the input traces should be kept short and direct to minimize noise and interference.
-
To optimize the performance of the ADS1672IPAG in a noisy environment, use a low-pass filter at the input, use a shielded cable for the analog input, and keep the analog and digital grounds separate. Additionally, use a decoupling capacitor between the AVDD and AGND pins, and use a ferrite bead or a common-mode choke to filter out high-frequency noise.
-
The maximum sampling rate of the ADS1672IPAG is 250 kSPS. However, the actual sampling rate may be limited by the system clock frequency, the analog input bandwidth, and the digital interface.
-
The ADS1672IPAG has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The calibration process involves shorting the analog input to the internal reference voltage, and then adjusting the offset and gain registers to achieve the desired accuracy.
-
The power consumption of the ADS1672IPAG depends on the operating mode and the sampling rate. In normal operation, the power consumption is typically around 15 mW at 250 kSPS. In power-down mode, the power consumption is typically around 1.5 mW.
