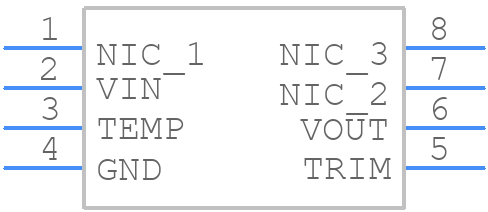

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADR03ARZ-REEL7 by Analog Devices Inc
Results Overview of ADR03ARZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADR03ARZ-REEL7 Information
ADR03ARZ-REEL7 by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADR03ARZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK5505
|
Newark | Volt Ref, 2.5V, Nsoic, -40 To 125Deg C, Voltage Reference Type:Series - Fixed, Product Range:Adr03 Series, Reference Voltage Min:2.495V, Reference Voltage Max:2.505V, Initial Accuracy:0.2%, Temperature Coefficient:10Ppm/°C Rohs Compliant: Yes |Analog Devices ADR03ARZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1037 |
|
$1.7000 / $3.2300 | Buy Now |
|
DISTI #
ADR03ARZ-REEL7CT-ND
|
DigiKey | IC VREF SERIES 0.2% 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6780 In Stock |
|
$1.7000 / $4.8400 | Buy Now |
|
DISTI #
584-ADR03ARZ-R7
|
Mouser Electronics | Voltage References 2.5V PrecisionBandgap REF RoHS: Compliant | 16812 |
|
$1.7000 / $3.0400 | Buy Now |
|
DISTI #
E54:1762_00113981
|
Arrow Electronics | V-Ref Precision 2.5V 10mA 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks Date Code: 2448 | Europe - 2000 |
|
$1.6400 | Buy Now |
|
DISTI #
V72:2272_06222506
|
Arrow Electronics | V-Ref Precision 2.5V 10mA 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2252 Container: Cut Strips | Americas - 283 |
|
$1.8250 / $2.3610 | Buy Now |
|
|
Analog Devices Inc | 2.5V PrecisionBandgap REF Min Qty: 1000 Package Multiple: 1000 | 27000 |
|
$1.7000 / $4.8400 | Buy Now |
|
DISTI #
25018940
|
Verical | V-Ref Precision 2.5V 10mA 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 24000 |
|
$1.6821 | Buy Now |
|
DISTI #
66312066
|
Verical | V-Ref Precision 2.5V 10mA 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2252 | Americas - 283 |
|
$1.8250 / $2.3610 | Buy Now |
|
DISTI #
ADR03ARZ-REEL7
|
TME | IC: voltage reference source, 2.5V, ±0.2%, SO8, reel,tape, 10mA Min Qty: 1 | 0 |
|
$1.3200 / $2.3100 | RFQ |
|
|
Chip 1 Exchange | INSTOCK | 32 |
|
RFQ |
Part Details for ADR03ARZ-REEL7
ADR03ARZ-REEL7 CAD Models
ADR03ARZ-REEL7 Part Data Attributes
|
|
ADR03ARZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADR03ARZ-REEL7
Analog Devices Inc
Ultracompact, Precision 2.5 V Voltage Reference
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | OUTPUT CAN BE ADJUSTED FROM 2.3V TO 2.8V | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 2.505 V | |
| Output Voltage-Min | 2.495 V | |
| Output Voltage-Nom | 2.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 36 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 7 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 10 ppm/°C | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Trim/Adjustable Output | YES | |
| Voltage Tolerance-Max | 0.2% | |
| Width | 3.9 mm |
Alternate Parts for ADR03ARZ-REEL7
This table gives cross-reference parts and alternative options found for ADR03ARZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADR03ARZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADR03AR | Analog Devices Inc | Check for Price | 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 2.5V, PDSO8, MS-012-AA, SOIC-8 | ADR03ARZ-REEL7 vs ADR03AR |
ADR03ARZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADR03ARZ-REEL7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure proper biasing, connect the VDD pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. The input voltage should be within the recommended range, and the output should be loaded with a minimum of 1kΩ to ensure stability.
-
The maximum power dissipation of the ADR03ARZ-REEL7 is 1.4W. However, it's recommended to keep the junction temperature below 150°C to ensure reliability and longevity.
-
The ADR03ARZ-REEL7 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the power dissipation and ensure proper heat sinking to maintain a safe junction temperature.
-
To troubleshoot issues with the ADR03ARZ-REEL7, start by verifying the power supply voltage, checking for proper decoupling, and ensuring the input and output signals are within the recommended ranges. Use an oscilloscope to check for noise, oscillations, or other anomalies.
