Part Details for ADP7105ACPZ-3.3-R7

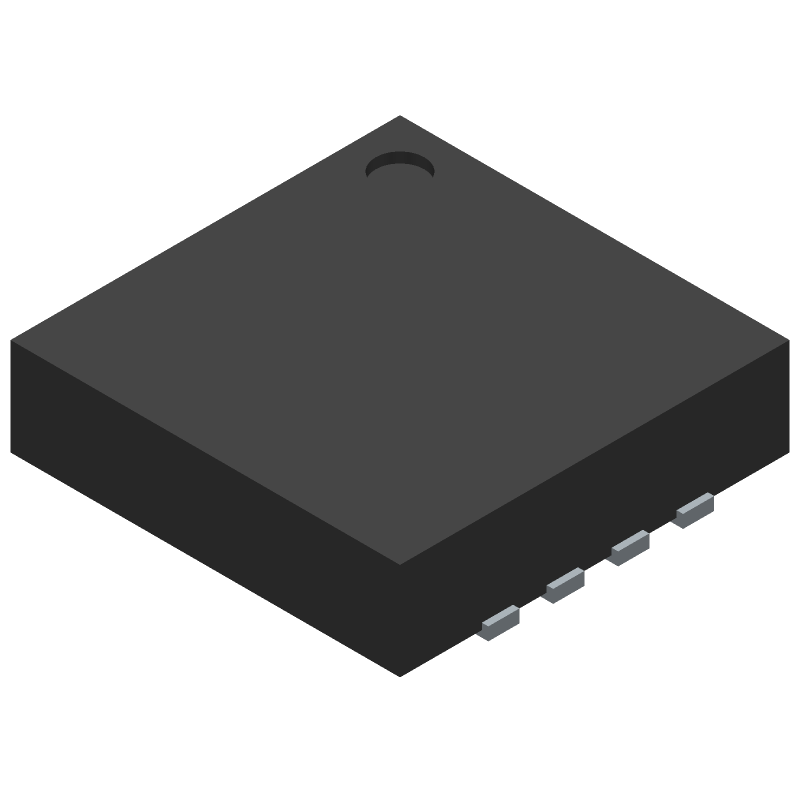

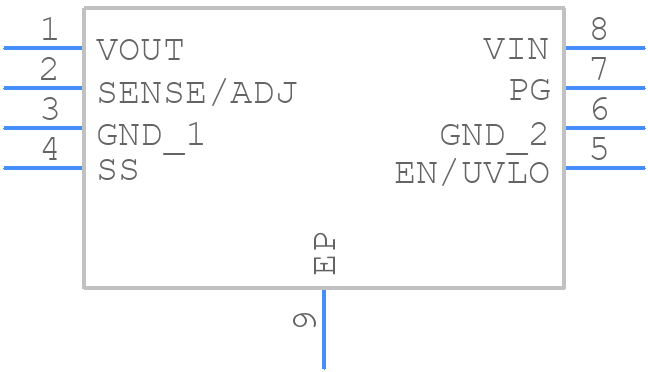

ADP7105ACPZ-3.3-R7 CAD Models
ADP7105ACPZ-3.3-R7 Part Data Attributes
|
|
ADP7105ACPZ-3.3-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP7105ACPZ-3.3-R7
Analog Devices Inc
20 V, 500 mA, Low Noise LDO Regulator with Soft Start
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | CP-8-5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.55 V | |
| Dropout Voltage1-Nom | 0.35 V | |
| Input Voltage Absolute-Max | 22 V | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 3.3 V | |
| JESD-30 Code | S-PDSO-N8 | |
| Length | 3 mm | |
| Line Regulation-Max | 0.0078% | |
| Load Regulation-Max | 0.012% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.5 A | |
| Output Voltage1-Max | 3.333 V | |
| Output Voltage1-Min | 3.234 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.11,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 2% | |
| Width | 3 mm |
Alternate Parts for ADP7105ACPZ-3.3-R7
This table gives cross-reference parts and alternative options found for ADP7105ACPZ-3.3-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADP7105ACPZ-3.3-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADP7104ACPZ-3.3-R7 | Analog Devices Inc | $3.5594 | 20 V, 500 mA, Low Noise, CMOS LDO | ADP7105ACPZ-3.3-R7 vs ADP7104ACPZ-3.3-R7 |
| ADP7105ARDZ-3.3-R7 | Analog Devices Inc | $4.4858 | 20 V, 500 mA, Low Noise LDO Regulator with Soft Start | ADP7105ACPZ-3.3-R7 vs ADP7105ARDZ-3.3-R7 |
| ADP7105ARDZ-3.3 | Analog Devices Inc | Check for Price | 20 V, 500 mA, Low Noise LDO Regulator with Soft Start | ADP7105ACPZ-3.3-R7 vs ADP7105ARDZ-3.3 |
ADP7105ACPZ-3.3-R7 Frequently Asked Questions (FAQ)
-
The maximum output current of ADP7105ACPZ-3.3-R7 is 500mA.
-
To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output capacitor has an ESR of less than 1 ohm.
-
The recommended input capacitor value is 1uF to 10uF, with an X5R or X7R dielectric.
-
Yes, the ADP7105ACPZ-3.3-R7 can operate in a temperature range of -40°C to 125°C, but the output current may be derated at high temperatures.
-
The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
