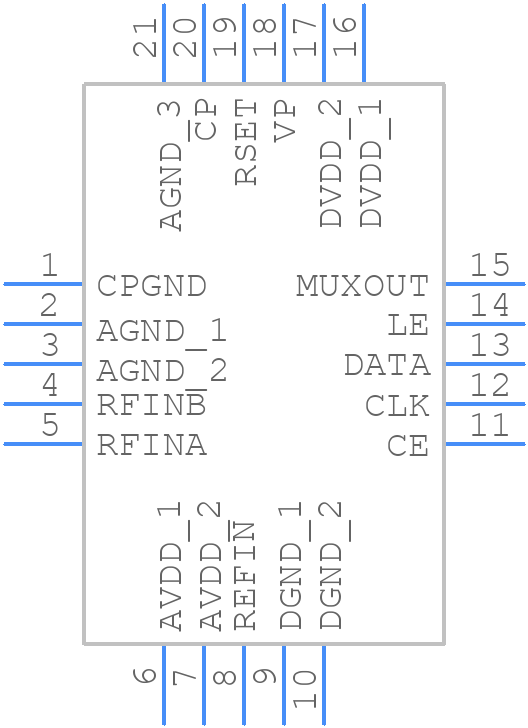

Part Symbol
-
Footprint
-

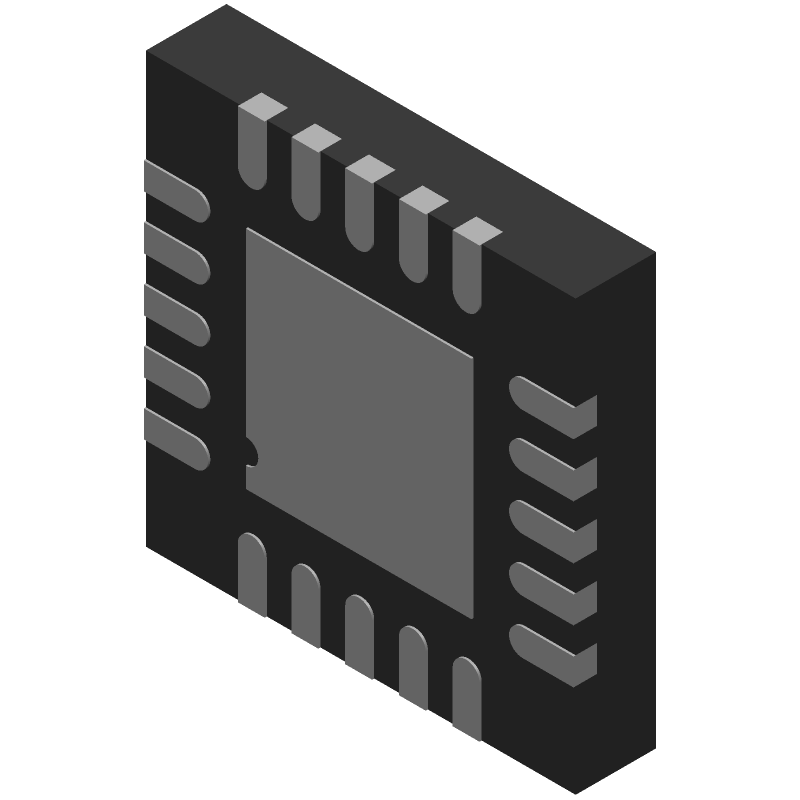

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADF4111BCPZ-RL7 by Analog Devices Inc
Results Overview of ADF4111BCPZ-RL7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Aerospace and Defense
ADF4111BCPZ-RL7 Information
ADF4111BCPZ-RL7 by Analog Devices Inc is a PLL or Frequency Synthesis Circuit.
PLL or Frequency Synthesis Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADF4111BCPZ-RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK4637
|
Newark | Pll, Frequency Synthesis, 1.4Ghz, Lfcsp, Frequency:1.4Ghz, Pll Type:Frequency Synthesis, No. Of Pins:20Pins, Pll Case Style:Lfcsp-Ep, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, Operating Temperature Min:-40°C, Product Range:- Rohs Compliant: Yes |Analog Devices ADF4111BCPZ-RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1470 |
|
$3.7800 / $6.1300 | Buy Now |
|
DISTI #
505-ADF4111BCPZ-RL7CT-ND
|
DigiKey | IC CLK/FREQ SYNTH 20LFCSP Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1640 In Stock |
|
$3.7750 / $8.6600 | Buy Now |
|
DISTI #
584-ADF4111BCPZ-R7
|
Mouser Electronics | Phase Locked Loops - PLL SINGLE PLL, 1.2GHz RoHS: Compliant | 2934 |
|
$3.7700 / $6.3500 | Buy Now |
|
DISTI #
V72:2272_06218309
|
Arrow Electronics | Clock Generator 5MHz to 1.4GHz-IN 165MHz-OUT 20-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2324 Container: Cut Strips | Americas - 728 |
|
$3.8730 / $4.4840 | Buy Now |
|
|
Analog Devices Inc | SINGLE PLL, 1.2GHz Min Qty: 1 Package Multiple: 1500 | 328 |
|
$2.8000 / $8.6600 | Buy Now |
|
DISTI #
69203404
|
Verical | Clock Generator 5MHz to 1.4GHz-IN 165MHz-OUT 20-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2324 | Americas - 728 |
|
$3.8730 / $4.4840 | Buy Now |
|
|
Quest Components | 4800 |
|
$5.6406 / $11.2812 | Buy Now | |
|
|
Win Source Electronics | IC PLL FREQ SYNTHESIZER 20-LFCSP | 1500 |
|
$3.4600 / $5.1899 | Buy Now |
Part Details for ADF4111BCPZ-RL7
ADF4111BCPZ-RL7 CAD Models
ADF4111BCPZ-RL7 Part Data Attributes
|
|
ADF4111BCPZ-RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADF4111BCPZ-RL7
Analog Devices Inc
Single, Integer-N, 1.2 GHz PLL With Programmable Prescaler And Charge Pump
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | MO-220-VGGD, LFCSP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | CP-20-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | 6-BIT SWALLOW COUNTER | |
| Analog IC - Other Type | PLL FREQUENCY SYNTHESIZER | |
| JESD-30 Code | S-CQCC-N20 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED | |
| Package Code | VQCCN | |
| Package Equivalence Code | LCC20,.16SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max (Isup) | 5.5 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 4 mm |
