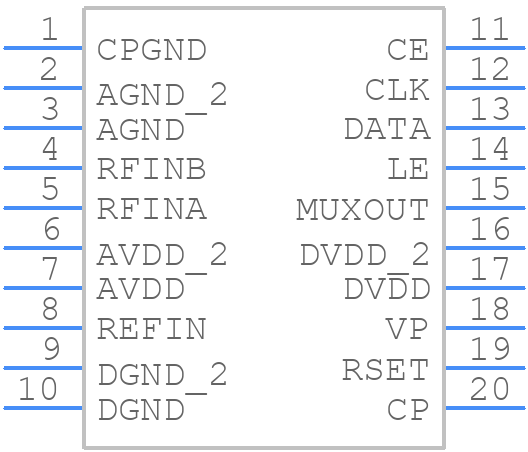

Part Symbol
-

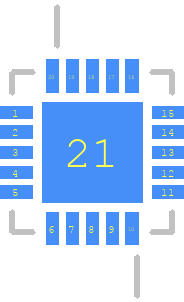

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADF4110BCPZ-RL7 by Analog Devices Inc
Results Overview of ADF4110BCPZ-RL7 by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Aerospace and Defense
ADF4110BCPZ-RL7 Information
ADF4110BCPZ-RL7 by Analog Devices Inc is a PLL or Frequency Synthesis Circuit.
PLL or Frequency Synthesis Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADF4110BCPZ-RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8303
|
Newark | Pll Frequency Synthesizer, 550Mhz, Lfcsp, Frequency:550Mhz, Pll Type:Frequency Synthesis, No. Of Pins:20Pins, Pll Case Style:Lfcsp-Ep, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, Operating Temperature Min:-40°C, Product Range:-Rohs Compliant: Yes |Analog Devices ADF4110BCPZ-RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 925 |
|
$3.7800 / $5.6900 | Buy Now |
|
DISTI #
ADF4110BCPZ-RL7CT-ND
|
DigiKey | IC CLK/FREQ SYNTH 20LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3870 In Stock |
|
$3.7750 / $8.6600 | Buy Now |
|
DISTI #
584-ADF4110BCPZ-R7
|
Mouser Electronics | Phase Locked Loops - PLL single pll 0.55GHz RoHS: Compliant | 453 |
|
$3.7700 / $7.1000 | Buy Now |
|
DISTI #
V72:2272_06218301
|
Arrow Electronics | Clock Generator 5MHz to 550MHz-IN 20-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2325 Container: Cut Strips | Americas - 976 |
|
$3.8730 / $4.2020 | Buy Now |
|
|
Analog Devices Inc | single pll 0.55GHz Min Qty: 1 Package Multiple: 1500 | 774 |
|
$2.8000 / $8.6600 | Buy Now |
|
|
Win Source Electronics | IC SYNTH PLL 550MHZ 20LFCSP | 1030 |
|
$6.2566 / $9.3844 | Buy Now |
Part Details for ADF4110BCPZ-RL7
ADF4110BCPZ-RL7 CAD Models
ADF4110BCPZ-RL7 Part Data Attributes
|
|
ADF4110BCPZ-RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADF4110BCPZ-RL7
Analog Devices Inc
Single, Integer-N, 550 MHz PLL With Programmable Prescaler And Charge Pump
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | MO-220-VGGD, LFCSP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | CP-20-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | 6-BIT SWALLOW COUNTER | |
| Analog IC - Other Type | PLL FREQUENCY SYNTHESIZER | |
| JESD-30 Code | S-CQCC-N20 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED | |
| Package Code | VQCCN | |
| Package Equivalence Code | LCC20,.16SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max (Isup) | 5.5 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 4 mm |
Alternate Parts for ADF4110BCPZ-RL7
This table gives cross-reference parts and alternative options found for ADF4110BCPZ-RL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADF4110BCPZ-RL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADF4110BCPZ | Analog Devices Inc | $4.3537 | Single, Integer-N, 550 MHz PLL With Programmable Prescaler And Charge Pump | ADF4110BCPZ-RL7 vs ADF4110BCPZ |
| ADF4110BCP | Analog Devices Inc | Check for Price | IC PLL FREQUENCY SYNTHESIZER, 550 MHz, CQCC20, MO-220-VGGD, LFCSP-20, PLL or Frequency Synthesis Circuit | ADF4110BCPZ-RL7 vs ADF4110BCP |
| ADF4110BCPZ-REEL | Analog Devices Inc | Check for Price | IC PLL FREQUENCY SYNTHESIZER, 550 MHz, CQCC20, MO-220-VGGD, LFCSP-20, PLL or Frequency Synthesis Circuit | ADF4110BCPZ-RL7 vs ADF4110BCPZ-REEL |
| ADF4110BCP-REEL7 | Analog Devices Inc | Check for Price | IC PLL FREQUENCY SYNTHESIZER, 550 MHz, CQCC20, MO-220-VGGD, LFCSP-20, PLL or Frequency Synthesis Circuit | ADF4110BCPZ-RL7 vs ADF4110BCP-REEL7 |
ADF4110BCPZ-RL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADF4110BCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog ground and another for the digital ground.
-
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, and make sure to use a high-quality reference clock source. Additionally, consider using the ADF4110's built-in calibration features, such as the phase detector output, to fine-tune the device's performance.
-
When selecting loop filter components, consider the desired loop bandwidth, phase margin, and stability requirements. Choose components that provide the necessary attenuation and phase shift to ensure a stable PLL loop. Additionally, consider the component tolerances and temperature coefficients to ensure optimal performance over the operating temperature range.
-
To troubleshoot common issues, start by verifying the device's power supply and reference clock inputs. Check for proper PCB layout and decoupling. Use a spectrum analyzer to measure the device's output spectrum and identify any spurious signals. Consult the datasheet and application notes for guidance on optimizing the device's performance and troubleshooting common issues.
-
To ensure reliable operation over temperature, consider the device's thermal characteristics, such as the junction-to-ambient thermal resistance (RθJA). Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Follow the recommended operating temperature range and avoid exceeding the maximum junction temperature (Tj) to prevent thermal damage.
