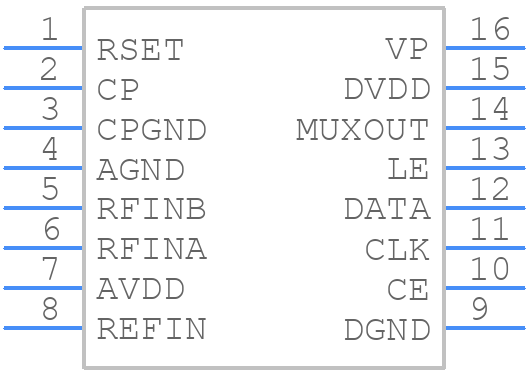

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADF4001BRUZ-RL by Analog Devices Inc
Results Overview of ADF4001BRUZ-RL by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Aerospace and Defense
ADF4001BRUZ-RL Information
ADF4001BRUZ-RL by Analog Devices Inc is a Clock Generator.
Clock Generators are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ADF4001BRUZ-RL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADF4001BRUZ-RLCT-ND
|
DigiKey | IC CLOCK GENERATOR 16TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$2.8500 / $7.3000 | Buy Now |
|
DISTI #
584-ADF4001BRUZ-R
|
Mouser Electronics | Phase Locked Loops - PLL Clock Generation PLL RoHS: Compliant | 0 |
|
$2.8500 | Order Now |
|
|
Analog Devices Inc | Clock Generation PLL Min Qty: 2500 Package Multiple: 2500 | 0 |
|
$2.1200 / $7.0500 | Buy Now |
|
|
LCSC | 3-Wire Serial 200MHz 16 TSSOP-16 Clock Generators PLLs Frequency Synthesizers ROHS | 49 |
|
$4.4839 / $6.2370 | Buy Now |
|
|
Vyrian | Peripheral ICs | 1383 |
|
RFQ | |
|
|
Win Source Electronics | Clock Generator 5MHz to 200MHz-IN 16-Pin TSSOP T/R / IC CLOCK GEN PLL 200MHZ 16TSSOP | 3800 |
|
$3.8500 / $4.9729 | Buy Now |
Part Details for ADF4001BRUZ-RL
ADF4001BRUZ-RL CAD Models
ADF4001BRUZ-RL Part Data Attributes
|
|
ADF4001BRUZ-RL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADF4001BRUZ-RL
Analog Devices Inc
200 MHz Clock Generator PLL
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RU-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO OPERATES AT 5 V NOMINAL SUPPLY | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Clock Frequency-Max | 200 MHz | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Primary Clock/Crystal Frequency-Nom | 100 MHz | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm | |
| uPs/uCs/Peripheral ICs Type | CLOCK GENERATOR, OTHER |
Alternate Parts for ADF4001BRUZ-RL
This table gives cross-reference parts and alternative options found for ADF4001BRUZ-RL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADF4001BRUZ-RL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADF4001BRUZ | Analog Devices Inc | $3.3051 | 200 MHz Clock Generator PLL | ADF4001BRUZ-RL vs ADF4001BRUZ |
| ADF4001BRU | Analog Devices Inc | Check for Price | 200 MHz Clock Generator PLL | ADF4001BRUZ-RL vs ADF4001BRU |
| ADF4001BRUZ-REEL | Analog Devices Inc | Check for Price | IC 200 MHz, OTHER CLOCK GENERATOR, PDSO16, TSSOP-16, Clock Generator | ADF4001BRUZ-RL vs ADF4001BRUZ-REEL |
ADF4001BRUZ-RL Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADF4001BRUZ-RL involves keeping the input and output tracks as short as possible, using a solid ground plane, and minimizing the distance between the device and the loop filter components. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
-
Optimizing the loop filter design for the ADF4001BRUZ-RL involves selecting the correct values for the resistors and capacitors based on the desired PLL bandwidth, phase noise, and spurious performance. The datasheet provides a loop filter design procedure, and Analog Devices also offers a PLL Loop Filter Design Tool to simplify the process.
-
The ADF4001BRUZ-RL has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and the user should consult the datasheet for temperature-related specifications and limitations.
-
The ADF4001BRUZ-RL is not specifically designed or qualified for radiation-hardened or high-reliability applications. However, Analog Devices offers other products that are designed for such applications, and users should consult with Analog Devices' sales team or application engineers to determine the best solution for their specific requirements.
-
Troubleshooting common issues with the ADF4001BRUZ-RL involves following a systematic approach, including checking the power supply, clock input, and loop filter design. The user should also consult the datasheet, application notes, and Analog Devices' technical support resources for guidance on specific issues.
