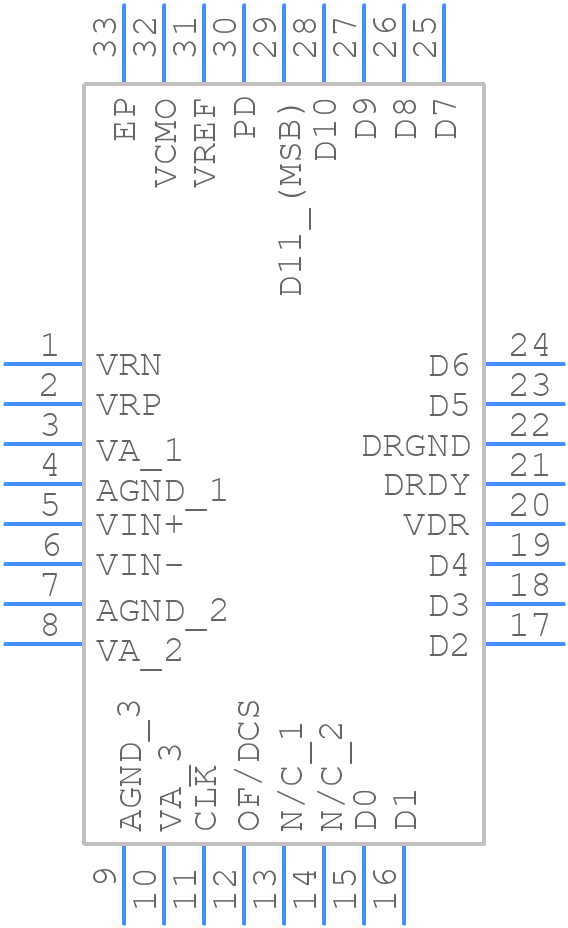

Part Symbol
-
Footprint
-

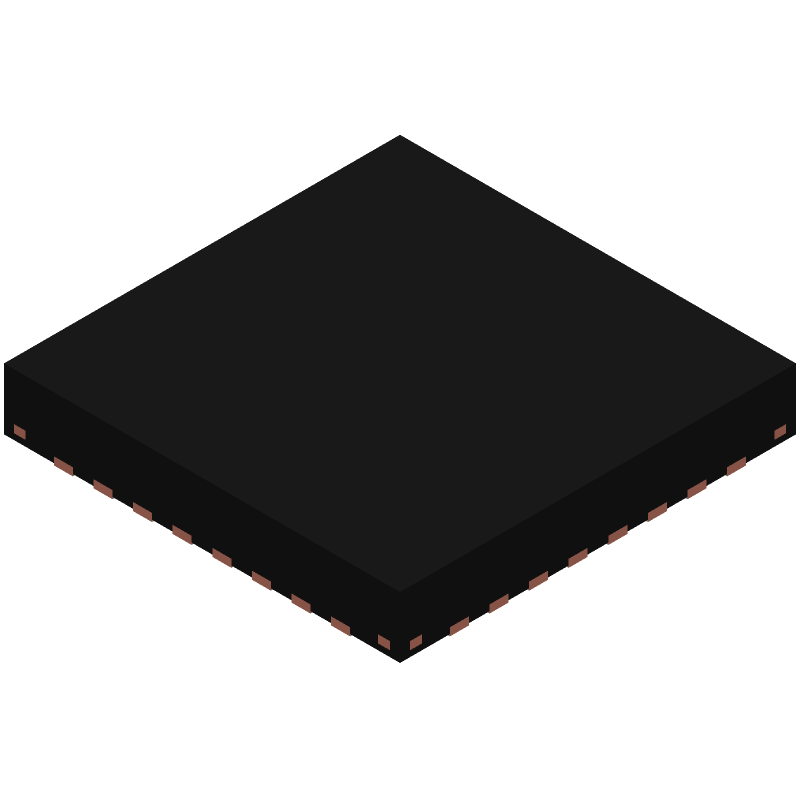

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADC12C105CISQE/NOPB by Texas Instruments
Results Overview of ADC12C105CISQE/NOPB by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ADC12C105CISQE/NOPB Information
ADC12C105CISQE/NOPB by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADC12C105CISQE/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADC12C105CISQE/NOPBCT-ND
|
DigiKey | IC ADC 12BIT PIPELINED 32WQFN Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$37.8460 / $53.5700 | Buy Now |
|
DISTI #
926-AD12C105CISQENPB
|
Mouser Electronics | Analog to Digital Converters - ADC 12-Bit 105-MSPS 1. 0-GHz Input Bandwidt A 926-ADC12C105CISQNPB RoHS: Compliant | 0 |
|
$37.8400 | Order Now |
|
DISTI #
86275628
|
Verical | 1-Channel Single ADC Pipelined 105Msps 12-bit Parallel 32-Pin WQFN EP T/R RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1401 | Americas - 1444 |
|
$36.1750 / $45.2125 | Buy Now |
|
|
Rochester Electronics | ADC12C105 12-Bit, 105-MSPS, 1.0-GHz Input Bandwidth Analog-to-Digital Converter (ADC) RoHS: Compliant Status: Active Min Qty: 1 | 1444 |
|
$28.9400 / $36.1700 | Buy Now |
Part Details for ADC12C105CISQE/NOPB
ADC12C105CISQE/NOPB CAD Models
ADC12C105CISQE/NOPB Part Data Attributes
|
|
ADC12C105CISQE/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADC12C105CISQE/NOPB
Texas Instruments
12-Bit, 105-MSPS, 1.0-GHz Input Bandwidth Analog-to-Digital Converter (ADC) 32-WQFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFN | |
| Package Description | WQFN-32 | |
| Pin Count | 32 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | Peak-to-peak input voltage range(V) : 2 | |
| Analog Input Voltage-Max | 2 V | |
| Analog Input Voltage-Min | -2 V | |
| Conversion Time-Max | 0.35 µs | |
| Converter Type | ADC, PROPRIETARY METHOD | |
| JESD-30 Code | S-XQCC-N32 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Linearity Error-Max (EL) | 0.0293% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | PARALLEL, WORD | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC32,.2SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 105 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 0.8 mm | |
| Supply Current-Max | 141 mA | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 mm |
Alternate Parts for ADC12C105CISQE/NOPB
This table gives cross-reference parts and alternative options found for ADC12C105CISQE/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADC12C105CISQE/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADC12C105CISQ/NOPB | National Semiconductor Corporation | Check for Price | IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, QCC32, 5 X 5 MM, 0.80 MM HEIGHT, 0.50 MM PITCH, ROHS COMPLIANT, LLP-32, Analog to Digital Converter | ADC12C105CISQE/NOPB vs ADC12C105CISQ/NOPB |
| ADC12C105CISQ | National Semiconductor Corporation | Check for Price | IC 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, QCC32, 5 X 5 MM, 0.80 MM HEIGHT, 0.50 MM PITCH, LLP-32, Analog to Digital Converter | ADC12C105CISQE/NOPB vs ADC12C105CISQ |
| ADC12C105CISQ | Texas Instruments | Check for Price | 1-CH 12-BIT PROPRIETARY METHOD ADC, PARALLEL ACCESS, QCC32, 5 X 5 MM, 0.80 MM HEIGHT, 0.50 MM PITCH, LLP-32 | ADC12C105CISQE/NOPB vs ADC12C105CISQ |
ADC12C105CISQE/NOPB Frequently Asked Questions (FAQ)
-
The recommended input impedance is 1 kΩ to 10 kΩ. This ensures proper signal integrity and minimizes signal reflections.
-
To optimize the ADC's performance for high-frequency signals, use a low-pass filter or an anti-aliasing filter at the input, and ensure the input signal is properly terminated. Also, consider using a higher sampling rate and averaging multiple samples to improve signal-to-noise ratio (SNR).
-
The maximum input voltage is VREF + 0.3V, where VREF is the reference voltage. Exceeding this voltage may damage the device or affect its accuracy.
-
Metastability issues can occur when the input signal is close to the threshold voltage. To handle this, use a Schmitt trigger or a hysteresis circuit at the input, or implement a metastability resolution circuit in the digital domain.
-
The recommended clock frequency is between 10 MHz and 65 MHz. Operating the ADC outside this range may affect its performance and accuracy.
